19-3
dummyheaddummyhead
TRIM/TILT

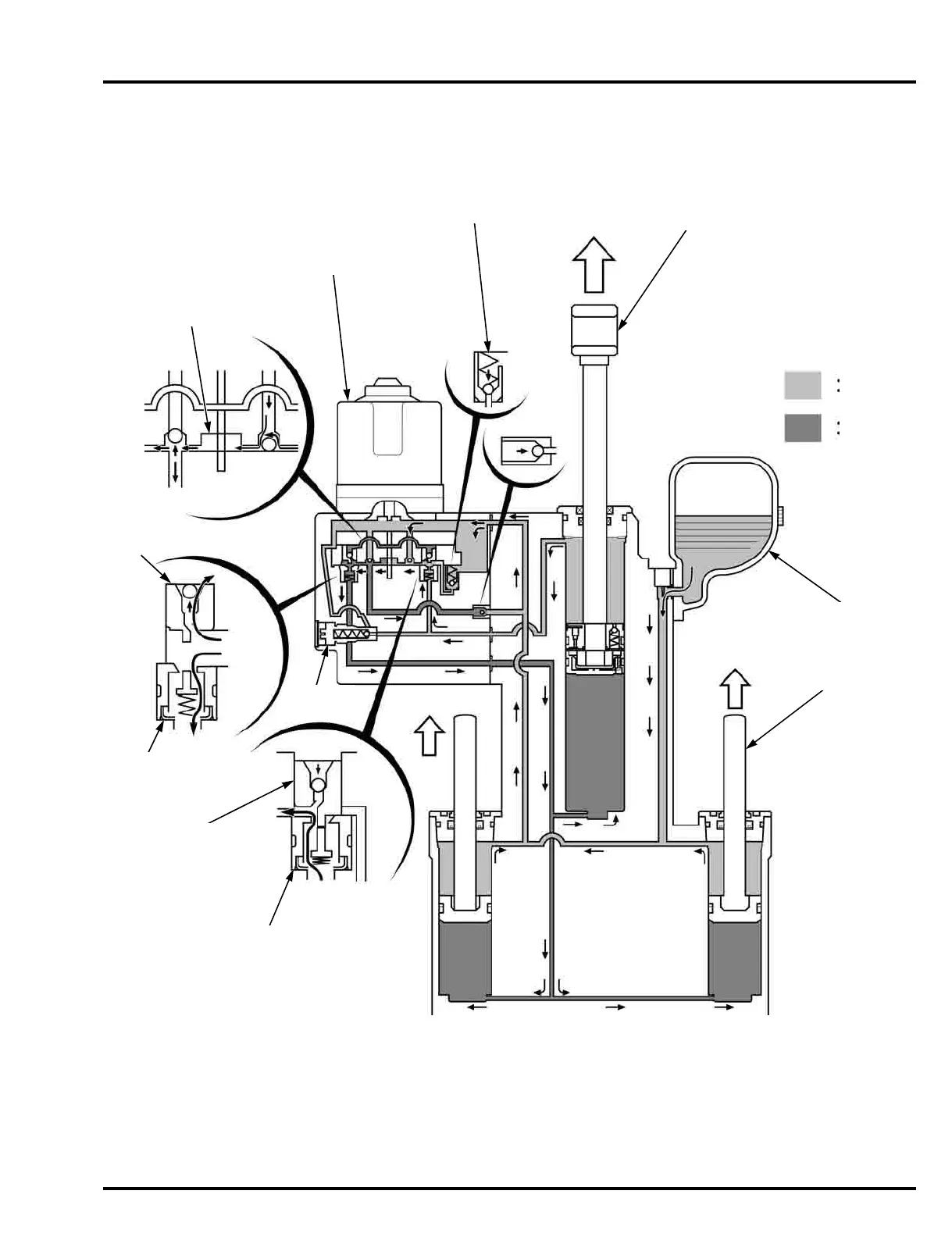

ATF LINE DESCRIPTION
Trim/tilt up:
PISTON ROD A
OIL TANK
Charge
Discharge
PISTON ROD B
LOWER CHAMBER
SPOOL VALVE
LOWER CHAMBER
CHECK VALVE
MANUAL
VALVE
UPPER CHAMBER
CHECK VALVE
UPPER CHAMBER
SPOOL VALVE
PUMP
POWER TILT MOTOR
DOWN RELIEF VALVE
