ENGINE COVER/COVER LOCK
DAMPER HOOK REMOVAL/
INSTALLATION
SIDE COVER BRACKET
DISASSEMBLY/ASSEMBLY
• The L. and R. cover bracket service procedures are
the same.
Remove the cover bracket (page 6-9).
Remove the E-ring [1] two washers [2] and two wave
washers [3] from the side lock [4].
Remove the side lock from the side cover bracket [5] by
pulling down the side lock, while releasing the cover
lock hook spring [6] from the side cover bracket hole.
Remove the cover lock hook spring from the side lock.
Remove the two cover lock bushings A [7].
Check the cover lock bushings A for damage and
replace them if necessary.
Apply marine grease to the cover lock bushings A
whole surface and shaft area of the side lock.
Assembly is in the reverse order of disassembly.

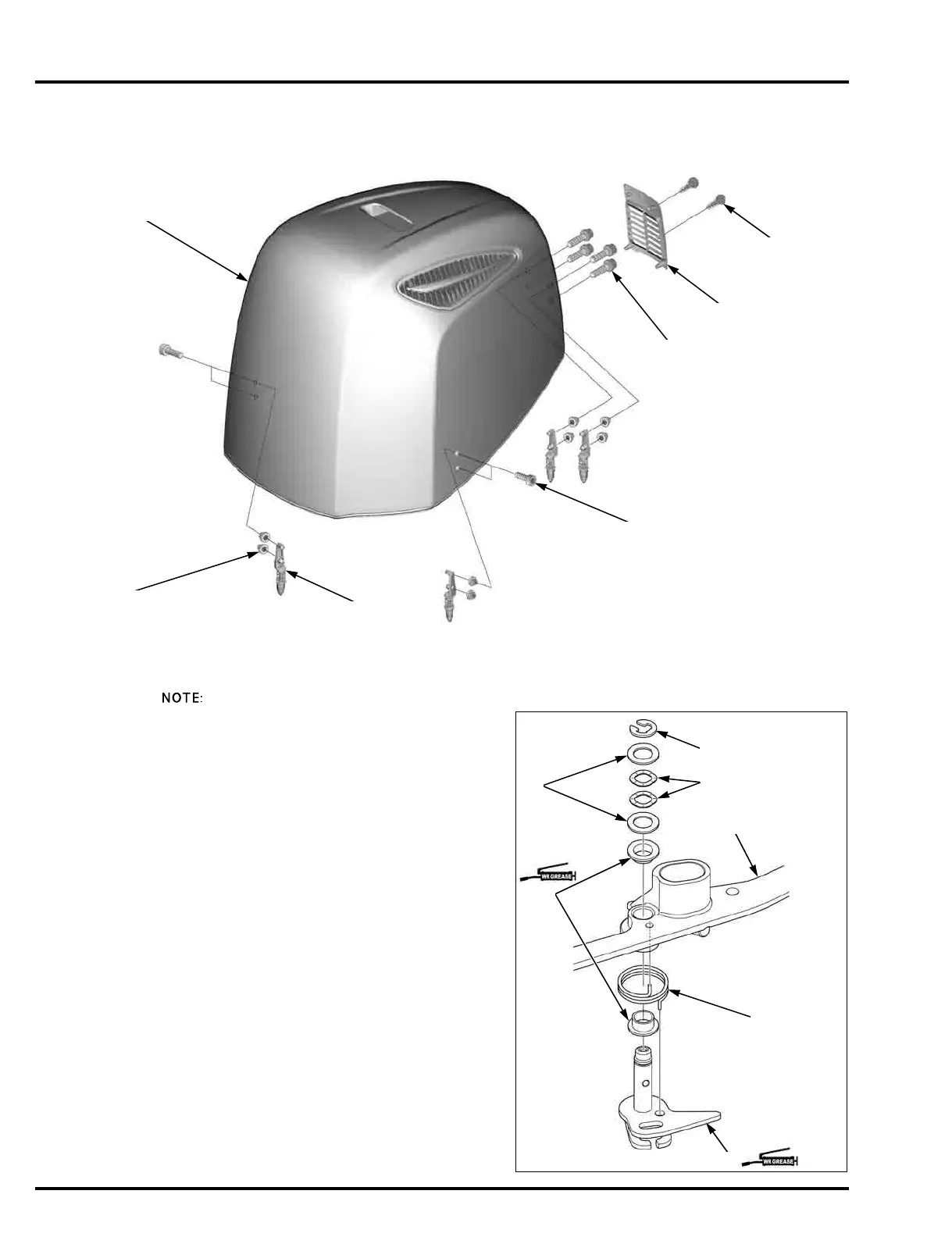

SOCKET BOLT (6 x 16 mm) (4)
SCREW (4 x 10 mm) (2)
COVER
ENGINE COVER
COLLAR (6.5 x 9 x 3 mm) (8)
DAMPER HOOK (4)
BOLT (6 x 20 mm) (4)
