ENGINE COVER/COVER LOCK

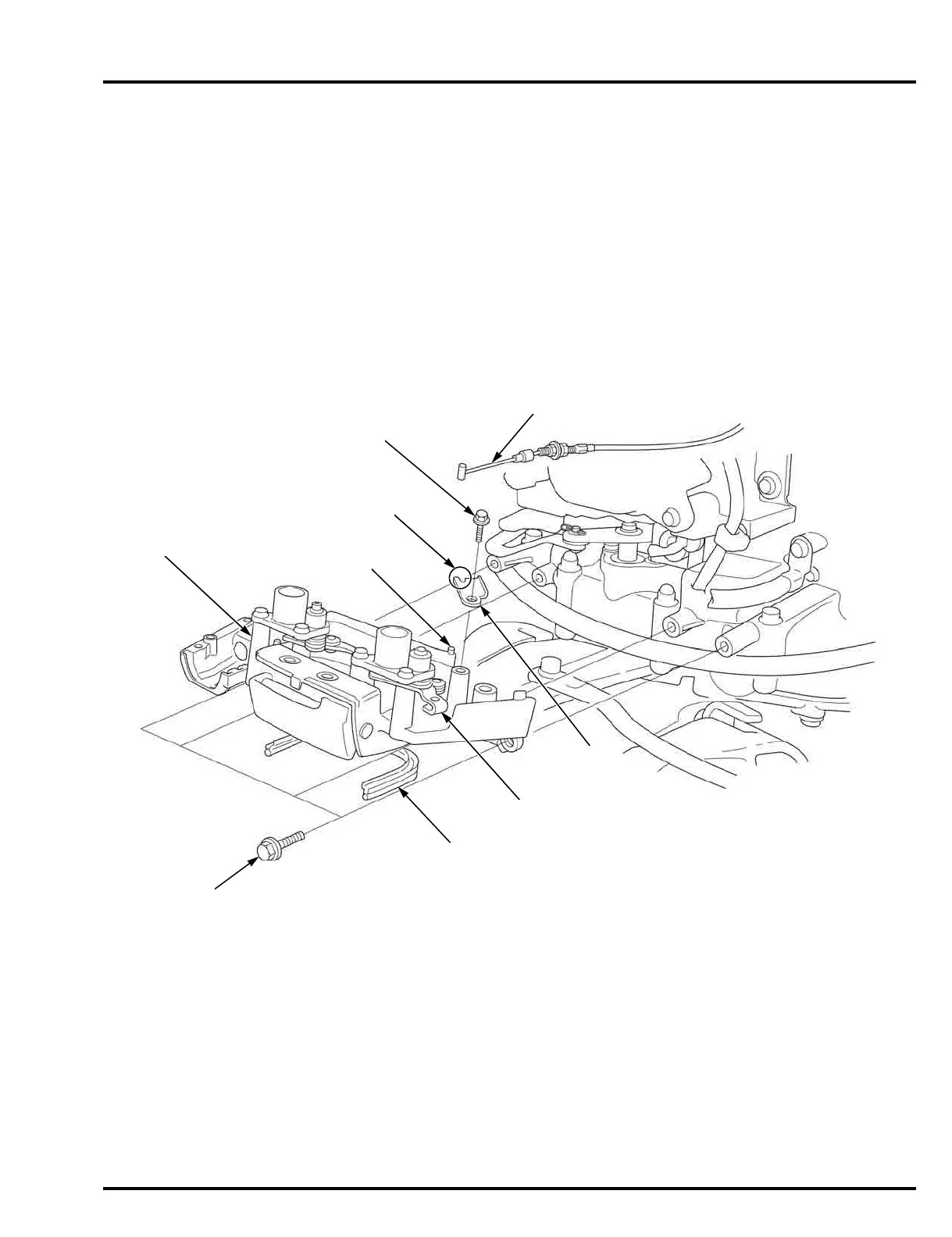

Remove the bolt (6 x 14 mm) [1] and cable holder [2],
and release the starter cables from the front cover
bracket groove.
Remove the four bolts (8 x 22 mm) [3] and the front
cover bracket [4].
Disconnect cover locking cable B [5] then disconnect
the cable from the R. lock arm [3].
Replace the under cover seal D [7] if necessary.
Installation is in the reverse order of removal.
• Install the cable holder by aligning its cutout [8] with
the boss [9] on the front cover bracket.
[7]
[1]
[5]
[2]
[9]
[3]
[4]
[6]
[8]
