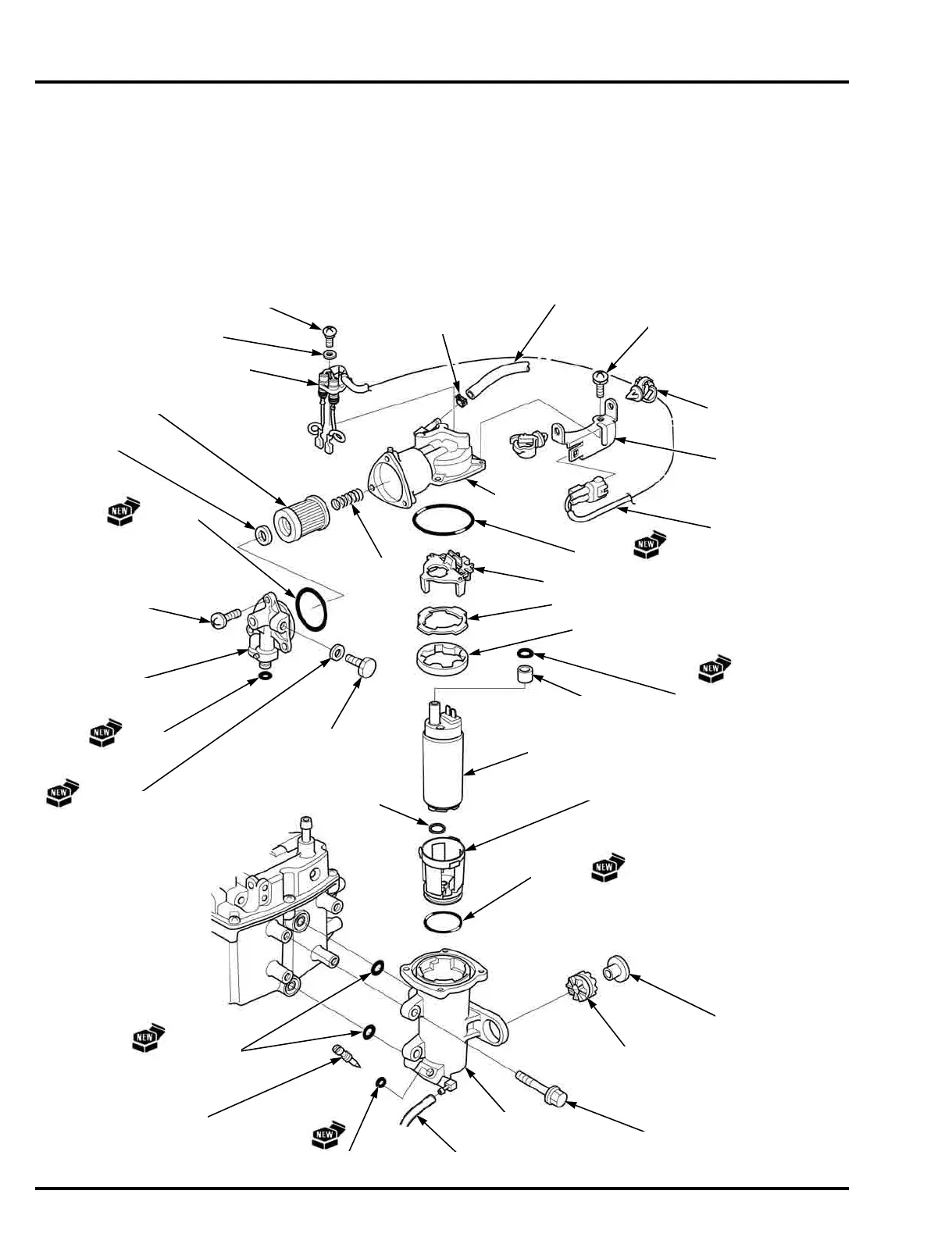

FUEL SYSTEM
FUEL PUMP (HIGH PRESSURE SIDE)/
FUEL FILTER DISASSEMBLY/
ASSEMBLY
DISASSEMBLY
Remove the fuel pump (high pressure side)/vapor
separator (page 5-86).
O-RING
PUMP COVER SCREW/
WASHER (5 x 15 mm) [4]
BOLT (6 x 25 mm) (4)
O-RING
HARNESS CLIP (2)
FUEL FILTER
3.4 N·m (0.35 kgf·m, 2.5 lbf·ft)
HARNESS
INSULATOR A
3.4 N·m (0.35 kgf·m, 2.5 lbf·ft)
DRAIN SCREW
FUEL PUMP CASE
GROMMET
COLLAR
O-RING
FUEL PUMP
O-RING
PLATE
HOLDER
PUMP
COVER
SEALING WASHER
SERVICE CHECK BOLT
O-RING
STRAINER
COVER SCREW/
WASHER (5 x 15 mm) (3)
STRAINER COVER
HARNESS HOLDER SCREW (4 x 10 mm)
2.1 N·m (0.21 kgf·m, 1.5 lbf·ft)
1.5 N·m (0.15 kgf·m, 1.1 lbf·ft)
12 N·m (1.2 kgf·m, 9 lbf·ft)
INSULATOR B
WASHER (4 mm)
GROMMET
RING
O-RINGS
V TUBE (3.5 x 6.5 x 600 mm)
COLLAR
O-RING
STAY
HARNESS HOLDER
TUBE CLAMP (D10.7)
PRESSURE REGULATOR
RETURN HOSE B
SPRING
12 N·m (1.2 kgf·m, 9 lbf·ft)
