FUEL SYSTEM
INTAKE MANIFOLD STUD BOLT
REPLACEMENT
Remove the intake manifold (page 5-72).
Thread two nuts onto the stud [1] and tighten them
together, and use a wrench on them to turn the stud bolt
out.
Install new stud bolts into the injector base using the
double nut procedure above and tighten them.

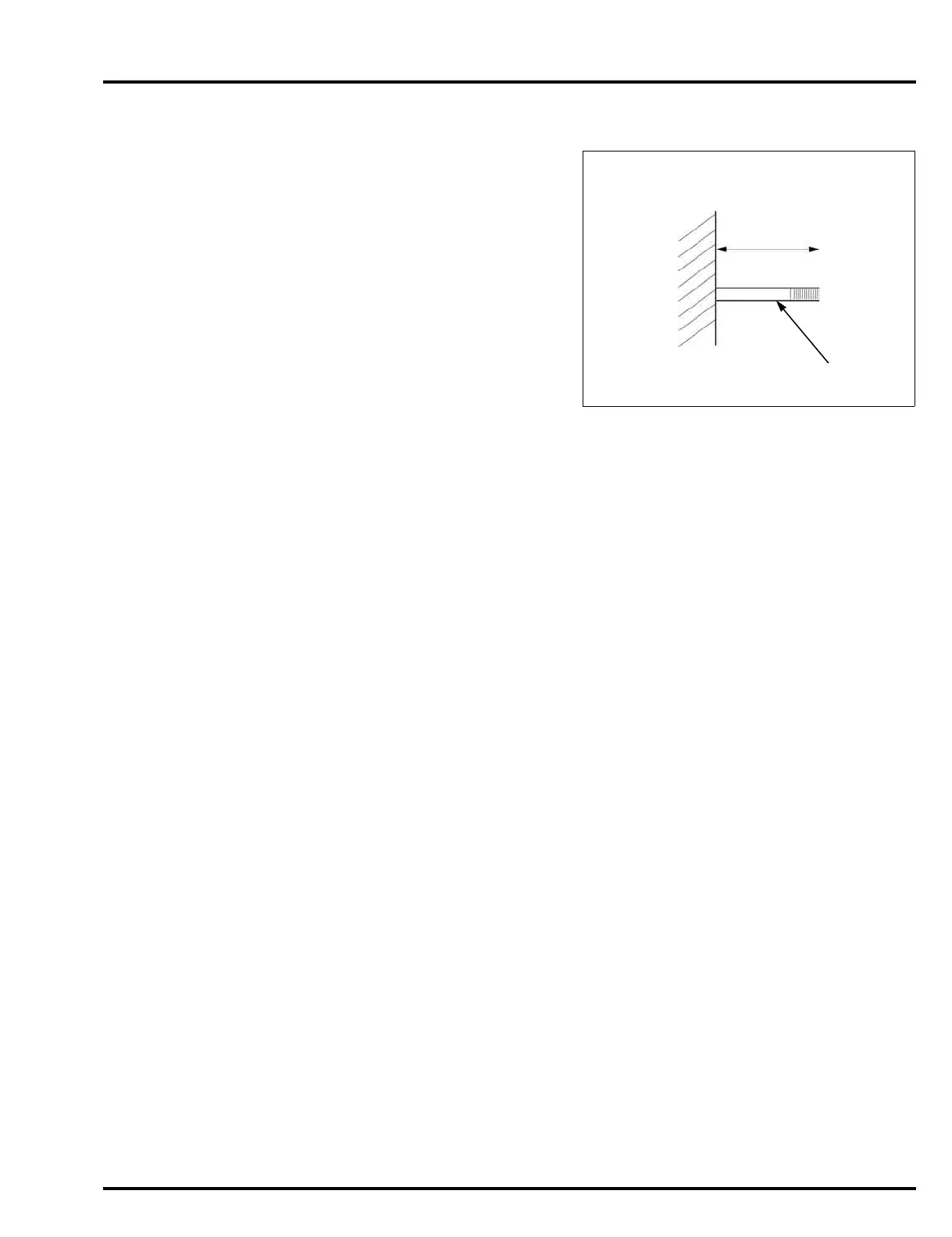

After intake manifold stud bolt installation, check that
the length from the bolt head to the injector base
surface is within specification.
SPECIFIED LENGTH: 28 mm (1.1 in)
