ENGINE COVER/COVER LOCK
FRONT COVER BRACKET
DISASSEMBLY/ASSEMBLY

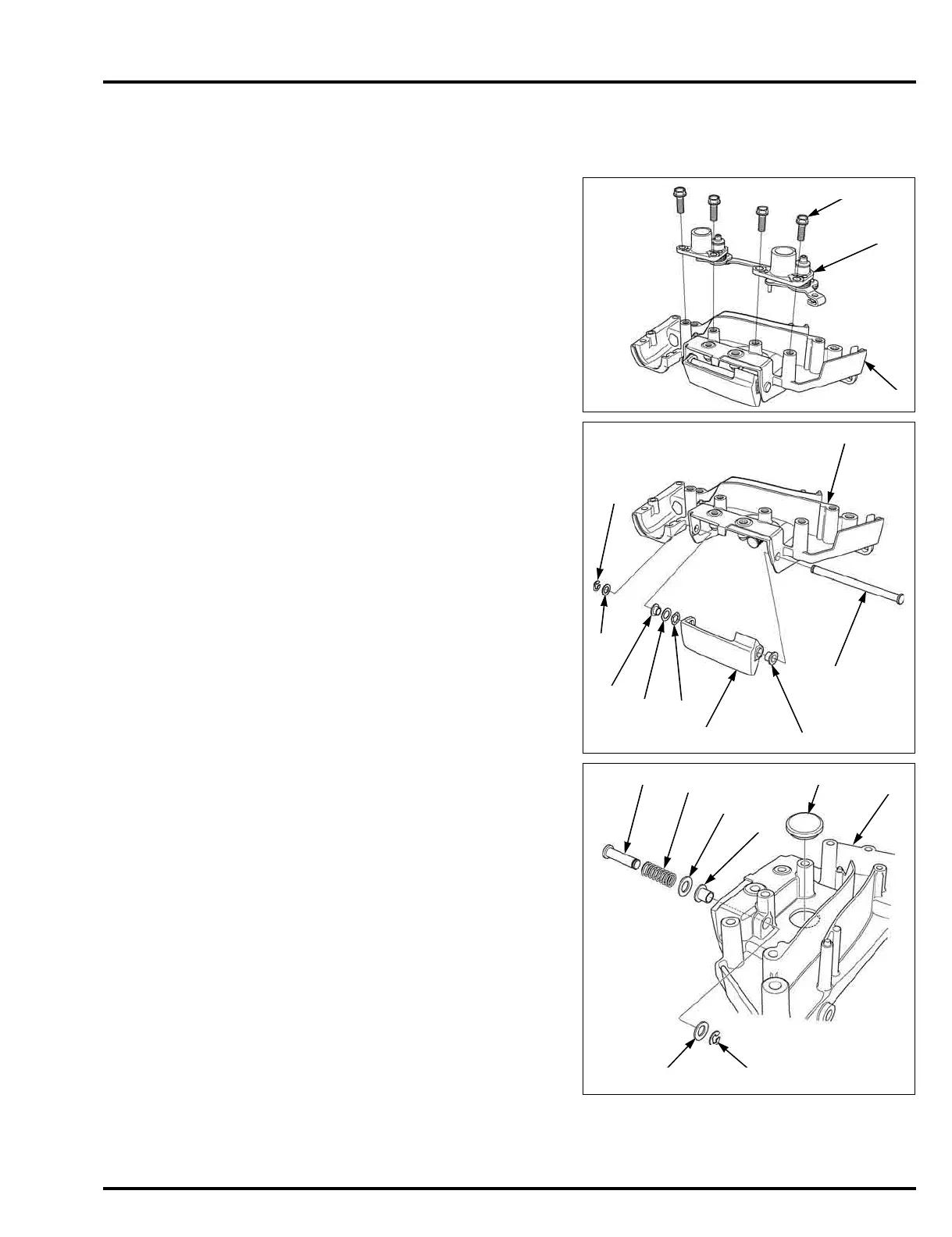

DISASSEMBLY
Remove the front cover bracket (page 6-10).
Remove the four bolts (6 x 20 mm) [1] and front lock [2]
from the front cover bracket [3].
Remove the E-ring [1] and washer (8 mm) [2] from the
front lock shaft [3].
Pull out the front lock shaft from the front cover bracket
[4].
Remove the cover lock lever [5], two cover lock
bushings A [6], washer (10 mm) [7] and wave washer
[8].
Remove the E-ring [1] and washer (8 mm) [2] from the
cover open shaft [3].
Remove the cover open shaft, lock lever return spring
[4], washer (8 mm) [5] and cover lock bushing B [6] from
the front cover bracket [7].
Remove the bracket cap [8].
[1]
[2]
[3]
[4]
[1]
[2]
[6]
[7]
[8]
[5]
[6]
[3]
[3]
[4]
[5]
[6]
[8]
[7]
[2] [1]
