LUBRICATION SYSTEM
OIL CASE/EXHAUST PIPE/WATER
TUBE REMOVAL/INSTALLATION
REMOVAL
Drain the engine oil (page 3-4).
Remove the extension case:
– Standard rotation type (page 16-11)
– Counter rotation type (page 17-9)

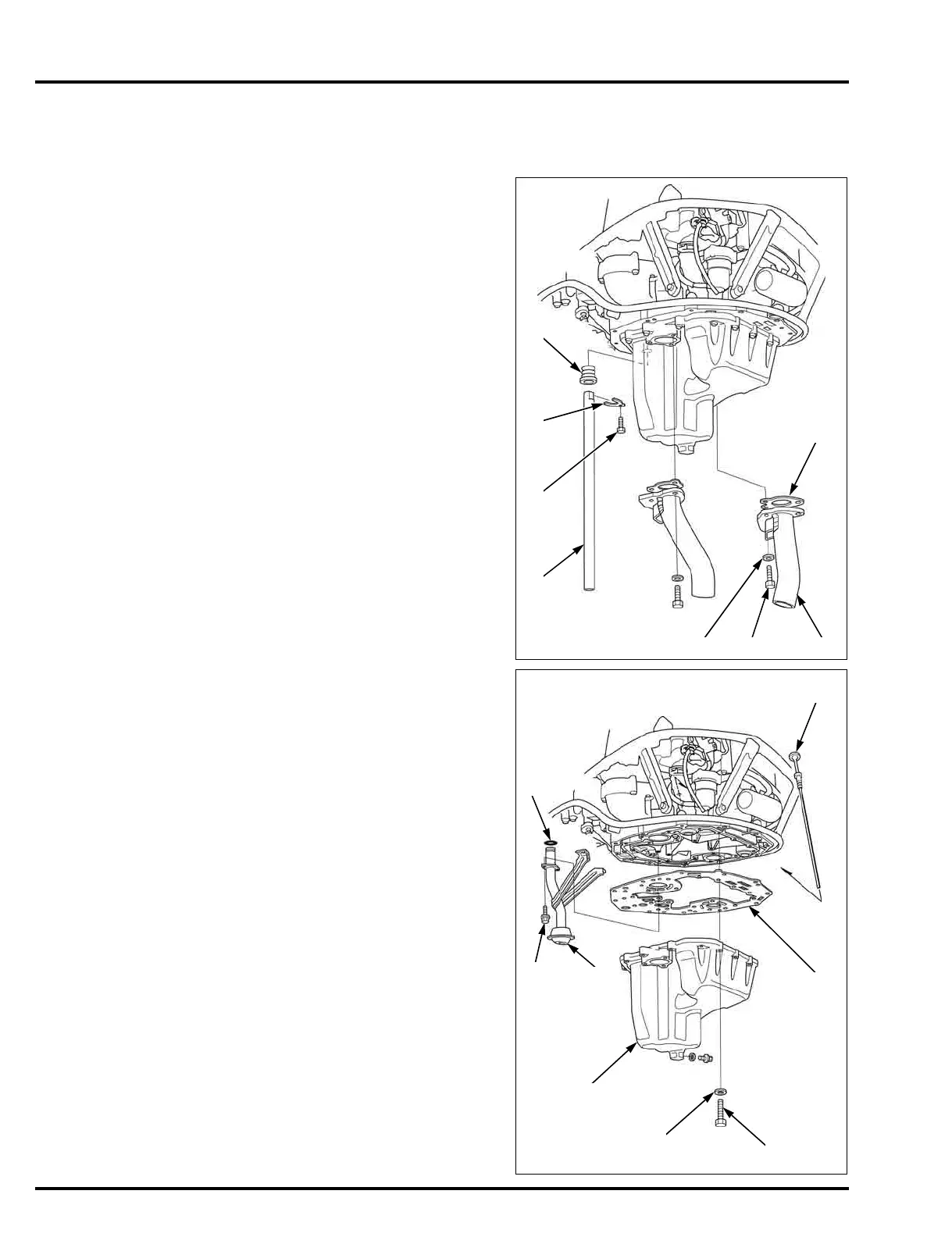

Remove the six bolts (8 x 28 mm) [1], six washers (8
mm) [2], two exhaust pipes [3], and two exhaust pipe
gaskets [4].
Remove the bolt (6 x 16 mm) [5], stopper plate [6],
water tube [7], and water tube grommet [8].
Remove the twenty-one bolts (8 x 35 mm) [1] and
twenty-one washers (8 mm) [2], and remove the oil
case [3].
Remove the four bolts (6 x 18 mm) [4], and remove the
oil strainer [5] and oil case gasket [6].
Clean the oil strainer screen with solvent and check the
screen for damage, and replace if necessary.
Remove the O-ring [7] from the oil strainer.
Remove the oil level gauge [8].
