GEAR CASE (STANDARD ROTATION)
Remove the two water seals (30 x 45 x 7 mm) [1] from
the propeller shaft holder [2] using a commercially
available oil seal remover.

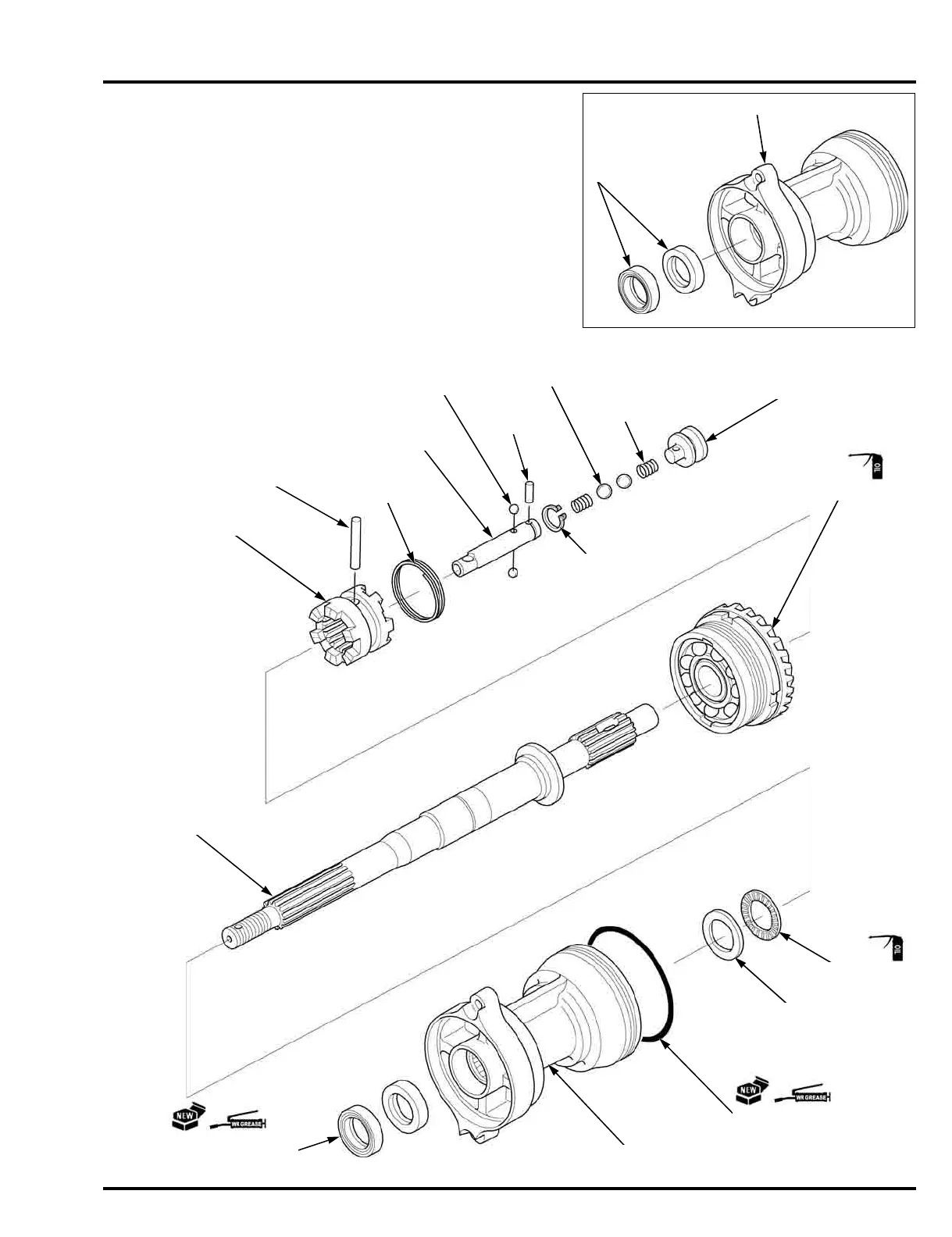

EXPLODED VIEW
[2]
[1]
STEEL BALL (#12) (2)
WATER SEAL
(30 x 45 x 7 mm) (2)
PROPELLER SHAFT HOLDER
O-RING (121 x 3.1 mm)
THRUST BEARING F
THRUST BEARING
WASHER
PROPELLER SHAFT
230 N·m (23.5 kgf·m, 170 lbf·ft)
BEARING HOLDER
SHIFT PLATE
SHIFT SPRING (2)
CIRCLIP
ROLLER
STEEL BALL (#7) (2)
SHIFT
SLIDER
CROSS
PIN RING
SHIFTER PIN
CLUTCH SHIFTER
