CONTROLS
THROTTLE ARM/SHIFT LINK BRACKET
REMOVAL/INSTALLATION
REMOVAL
Remove the following:
– R. engine under cover (page 6-3)
– Shift control cable (page 20-3)
– Throttle control cable (page 20-6)

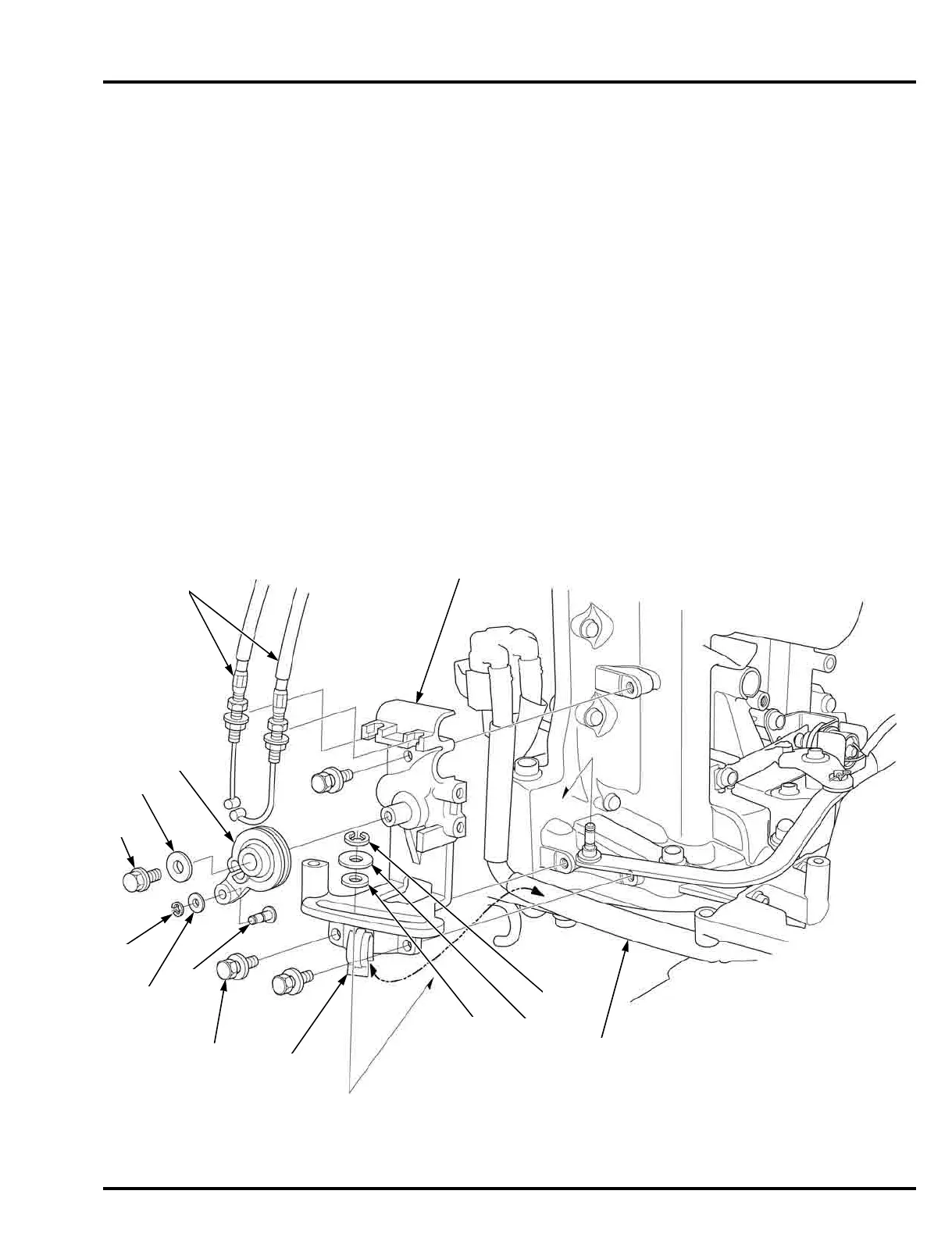

Disconnect the throttle cables [1].
Remove the bolt (6 x 12 mm) [2], washer (6 mm) [3],
and throttle arm [4].
Remove the E-ring [5], washer (large) [6], and washer
(small) [7].
Release the fuel tube A [8] from the tube clamp [9].
Remove the three bolt/washers (6 x 16 mm) [10] and
the shift link bracket [11].
Remove the tube clamp from the shift link bracket.
Remove the E-ring [12], washer [13] and link pin [14]
from the throttle arm.
[2]
[4]
[9]
[12]
[13]
[11]
[1]
[3]
[14]
[10]
[5]
[7]
[6]
[8]
