CONTROLS
SHIFT ARM/LINK ROD REMOVAL/
INSTALLATION
REMOVAL
Move the remote control lever to the "N" (Neutral)
position.
Remove the following:
– Electric parts case (page 10-4)
– Shift control cable (page 20-3)

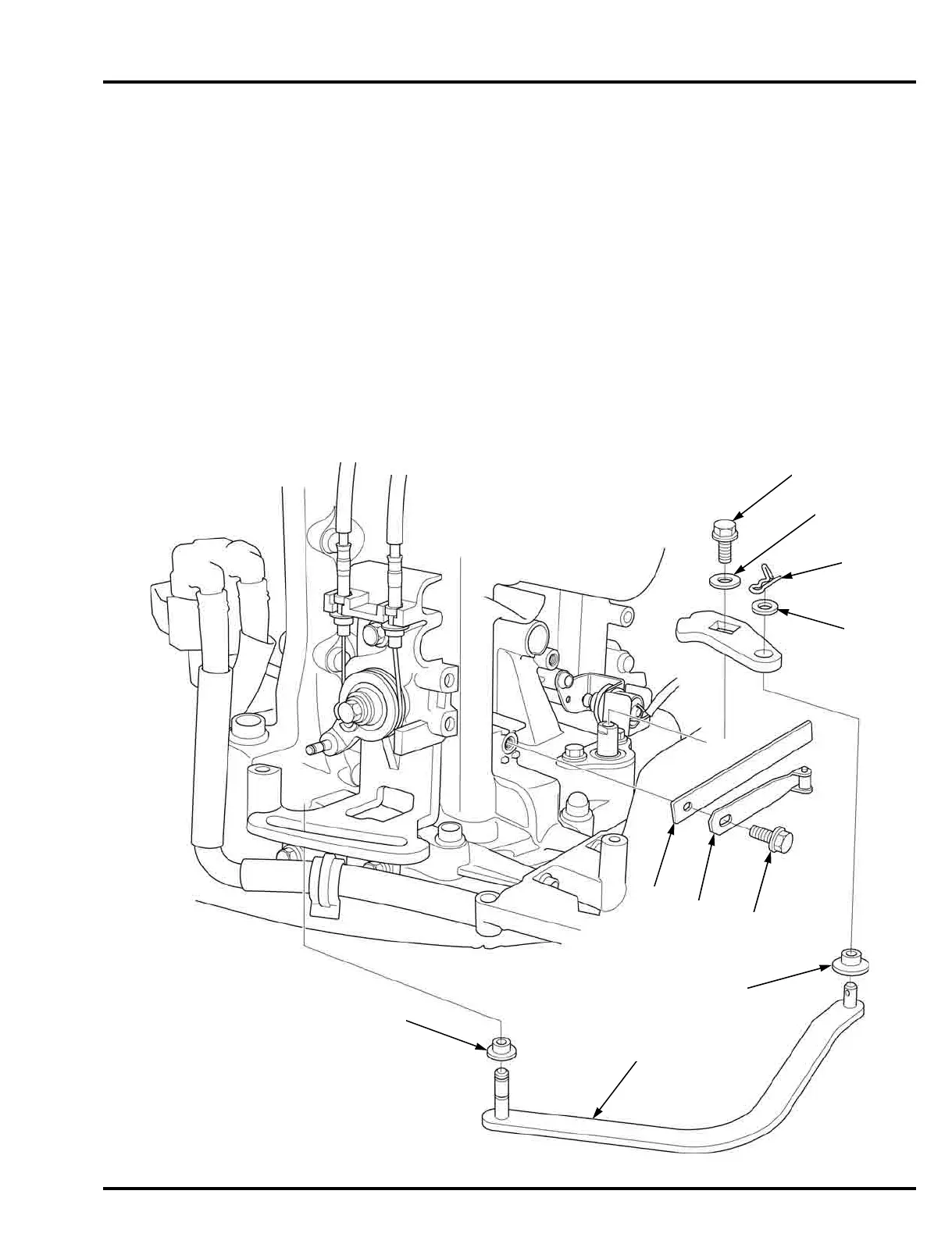

Remove the bolt (6 X 14 mm) [1], click spring [2], and
assist spring [3]
Remove the snap pin [4] and washer (6 mm) [5] from
the shift arm [6].
Remove the bolt (6 x 16 mm) [7], washer (6 mm) [8],
and the shift arm.
Remove the link rod [9], arm bush [10], and slider collar
[11].
[6]
[7]
[8]
[4]
[5]
[10]
[9]
[11]
[1]
[2]
[3]
