TOHATSU EverRun MX 18E2 Service Manual

6-2
Lower Unit
2st X18E2 2012
GB

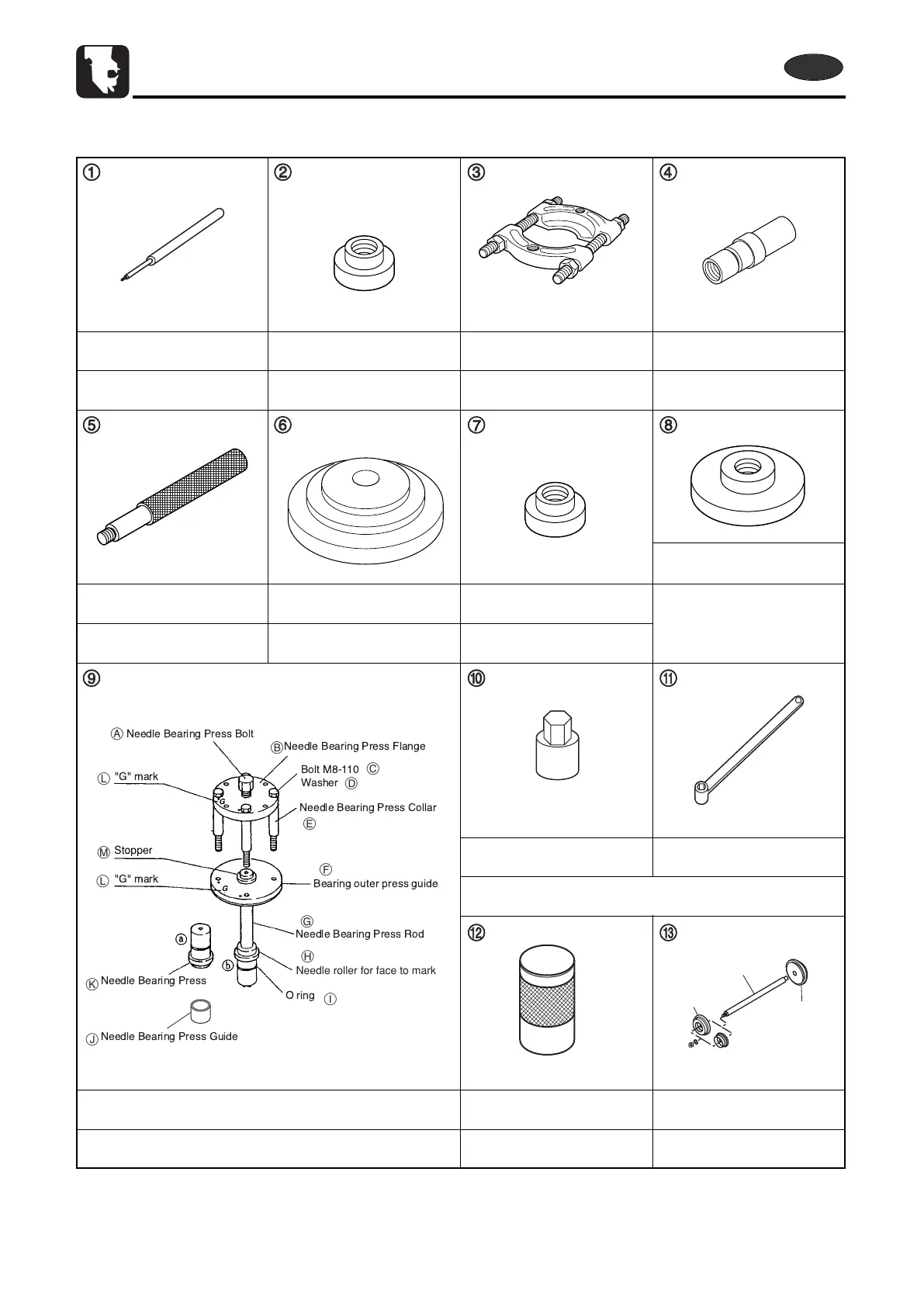

1.Special Tools
Use in combination with driver rod.
Use oil seal attachment to press fit
ball bearing. Installing forward (A) gear
and reverse (C) gear bearings
Oil Seal Attachment
P/N. 3UI-99820-0
Bevel Gear B Nut Socket
P/N. 350-72232-0
Used with driver rod and center plate
Installing propeller shaft housing needle
bearing
Roller Bearing Attachment
P/N. 3BA-99710-0
Used in combination with center
place and various attachments
Driver Rod
P/N. 3AC-99702-0
Used with driver rod. Installing oil
seal in the propeller shaft housing
Oil Seal Attachment 2
P/N. 3AG-99820-0
Removing spring pin
Spring Pin Tool A (ø3.0)
P/N. 345-72227-0
Installing pump case (lower)
oil seal
Oil Seal Attachment 3
P/N. 3BJ-99820-0
Removing main bearing and
reverse (C) gear bearing
Universal Puller Plate
P/N. 3AC-99750-0
Removing or attaching pinion (B) gear nut
Bevel Gear B Nut Wrench
P/N. 346-72231-0
Installing forward (A) gear
bearing
Bevel Gear Bearing Install Tool
P/N. 346-72719-0
Attaching forward (A) gear
bearing outer race
Bearing Outer Press Kit
P/N. 3B7-72739-1
3B7-72733-0
3B7-72731-0
3B7-72732-0
ø100 x ø79.5 x ø51.5 x ø61.5
Center Plate
P/N. 3AC-99701-0
Removing or installing propeller
shaft housing bearing
ø25.5 x ø12.5
ø29.5 x ø16.5
ø51.5 x ø39.5
Installing/attaching drive shaft housing
Roller Bearing Press Kit
P/N. 3AC-72900-1
Needle Bearing Press Bolt
Needle Bearing Press Rod
Bearing outer press guide
Bolt M8-110
Washer
Needle Bearing Press Collar
Needle Bearing Press Flange
Needle Bearing Press
O ring
Needlerollerforfacetomark
"G" mark
"G" mark
Stopper
G
G
Needle Bearing Press Guide
11 22 33 44
55 66 77 88
99 00 qq
ww ee
A
B
C
D
E
F
G
H
I
J
K
L
M
L
