TOHATSU EverRun MX 18E2 Service Manual

6-16
Lower Unit
2st X18E2 2012
GB
1
2
3
5
4
OIL
GEARGEAR
GEAR
1
2
Forward
direction
2
2
3
1

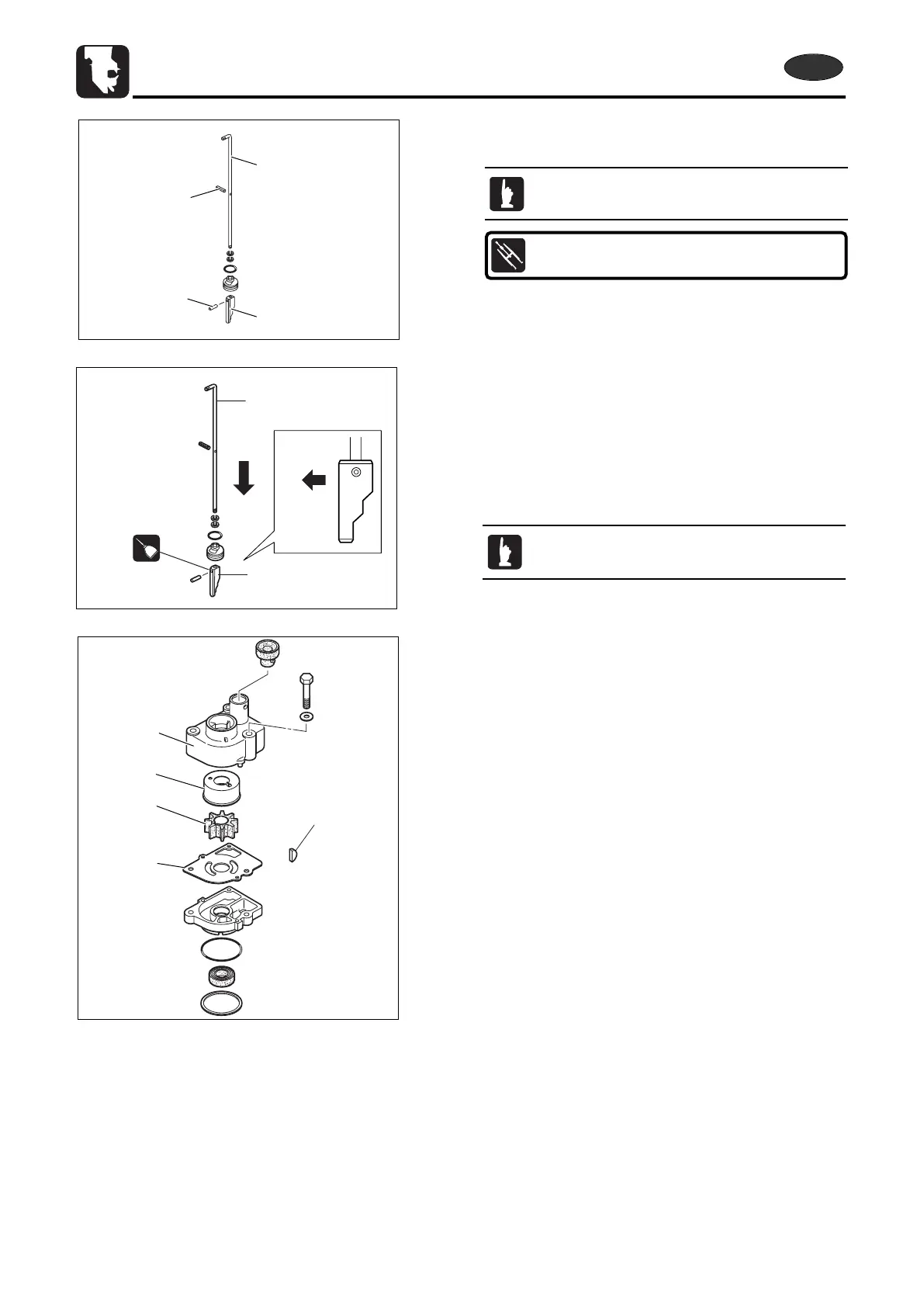

7) Removing of Water Pump
1. Loosen and remove pump case (upper) bolts, and remove
pump case (upper) parts 1, 2, 3, 4 and 5 in this order.
5) Inspection of Cam Rod and Clutch Cam
1. Check cam rod 1 and clutch cam 2 for wear and damage.
Replace if necessary.
6) Assembly of Cam Rod and Clutch Cam
1. Reassemble.
Be careful of direction of cam rod.
2. Remove spring pin 2, clutch cam 3 and cam rod bushing
from cam rod 1.
Do not reuse removed spring pin.
Spring Pin Tool A (ø3.0):
P/N. 345-72227-0
A
MX18EFSch06120622.qxd12.6.222:43PM  ページ16
