6-40
Lower Unit
2st X18E2 2012
GB
3

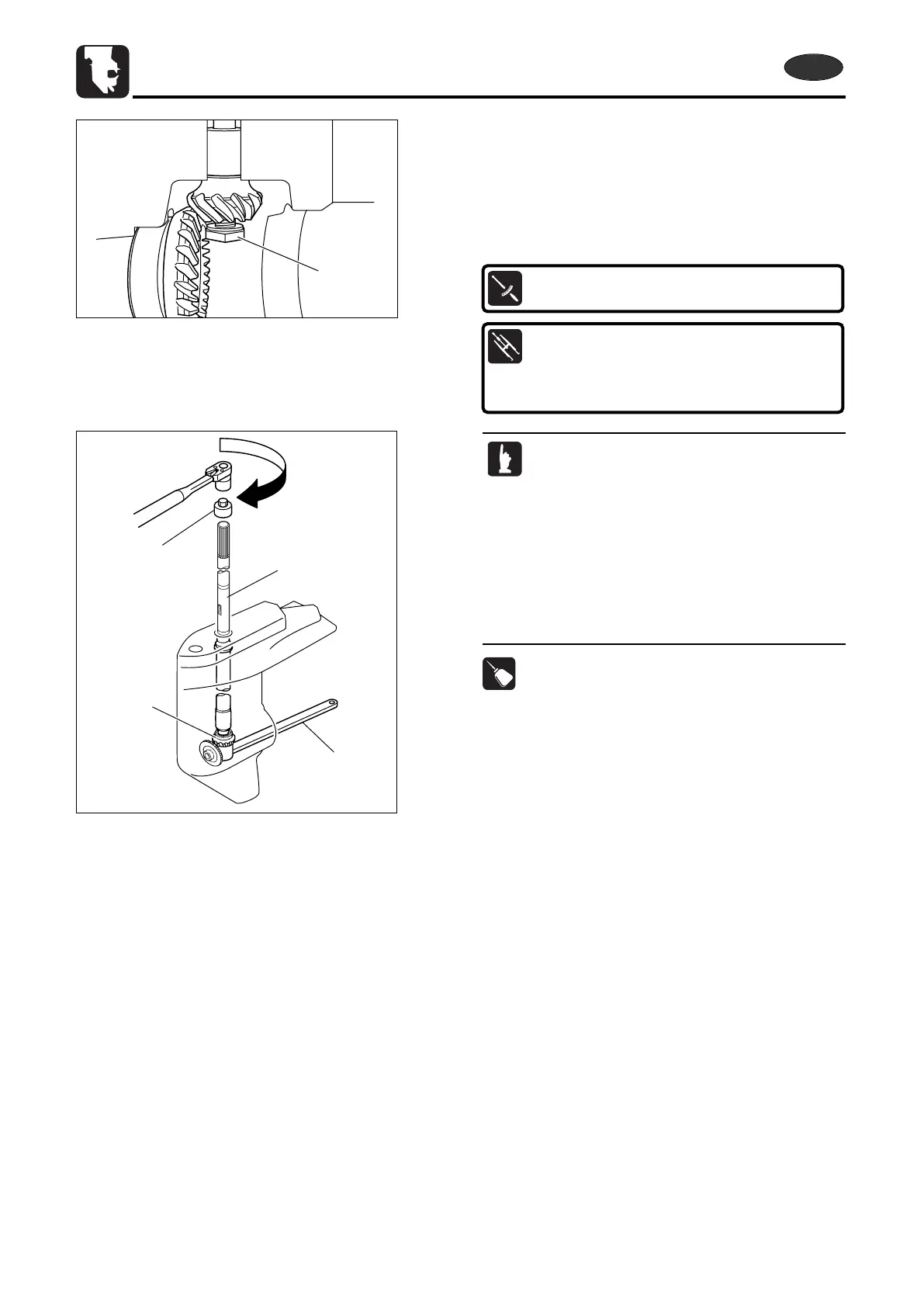

29) Installation of Pinion (B) Gear
1. Clean gear case interior.
2. After installing forward (A) gear into bear case, install drive
shaft ass'y 1, pinion (B) gear 2 and pinion (B) gear nut 3,
and tighten the nut to specified torque.
Pinion (B) Gear Nut :
32.5 N · m (24 lb · ft) [3.3 kgf · m]
Bevel Gear B Nut Socket 4 :
P/N. 350-72232-0
Bevel Gear B Nut wrench 5 :
P/N. 346-72231-0
· Take care of direction of pinion (B) gear nut
seating surface.
· After settling pinion (B) gear height and forward
(A) backlash, apply "Three Bond 1342" to
pinion (B) gear nut thread and tighten the nut
to specified torque.
· This work can be made easier when the
opening of gear housing of propeller shaft side
is faced upward and fixed horizontally with a
holder.
1342
MX18EFSch06120622.qxd12.6.222:43PM ページ40
