98
17. RESECTION MEASUREMENT

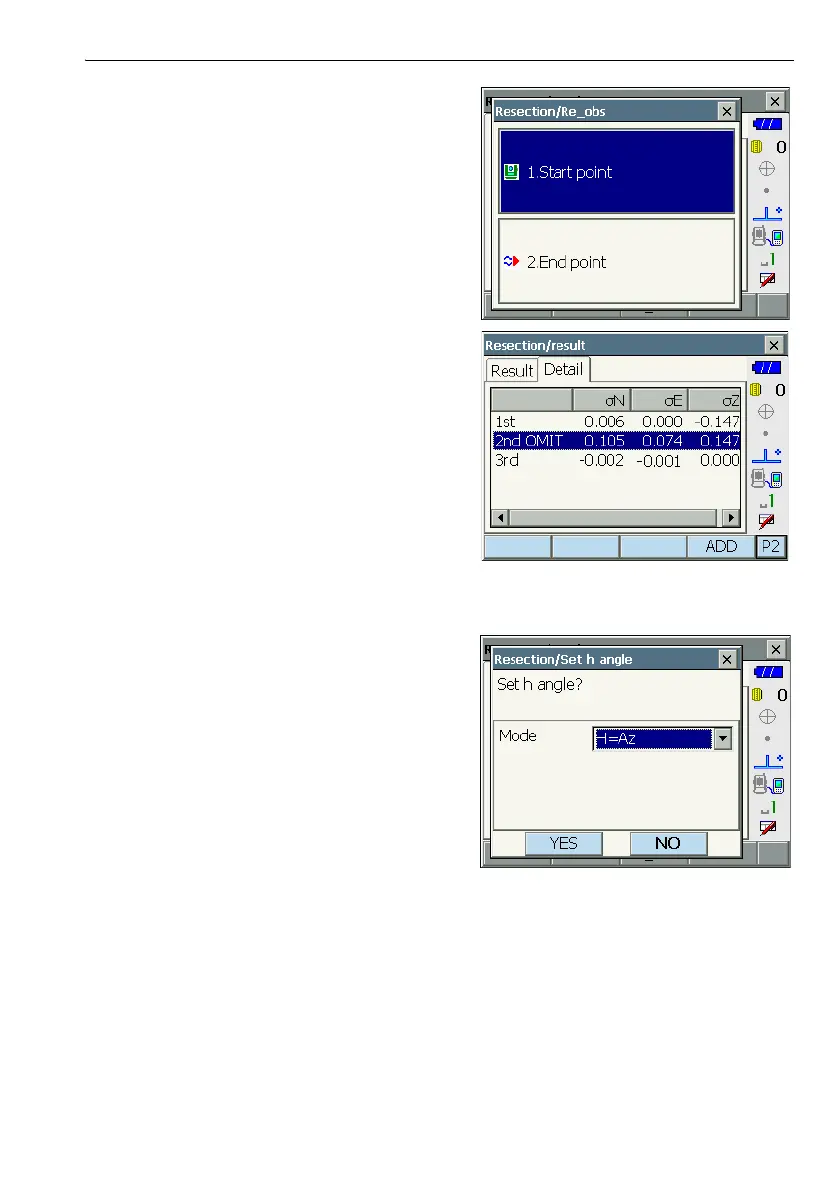

•Press [RE OBS] to measure the point
designated in step 8.
If no points are designated in step 8, all the
points or only the final point can be observed
again.
•Press [ADD] in the second page when there is a
known point that has not been observed or when
a new known point is added.
10. Press [OK] in <Resection/result> to display
<Resection/Set h angle>.
11. Select an angle mode and press [YES] to set the
azimuth angle of the first known point as the
backsight point and return to <Resection/Menu>.
12. Press [NO] to return to <Resection/Menu>
without setting the azimuth angle.
Horizontal angle settings
H (set horizontal angle to measured value)/H=Az (set horizontal angle to the same value as
azimuth angle)/Az (set azimuth angle only)
• It is also possible to perform resection measurement by pressing [RESEC] in the third page of
Observation mode.
