4. PRODUCT OUTLINE
13

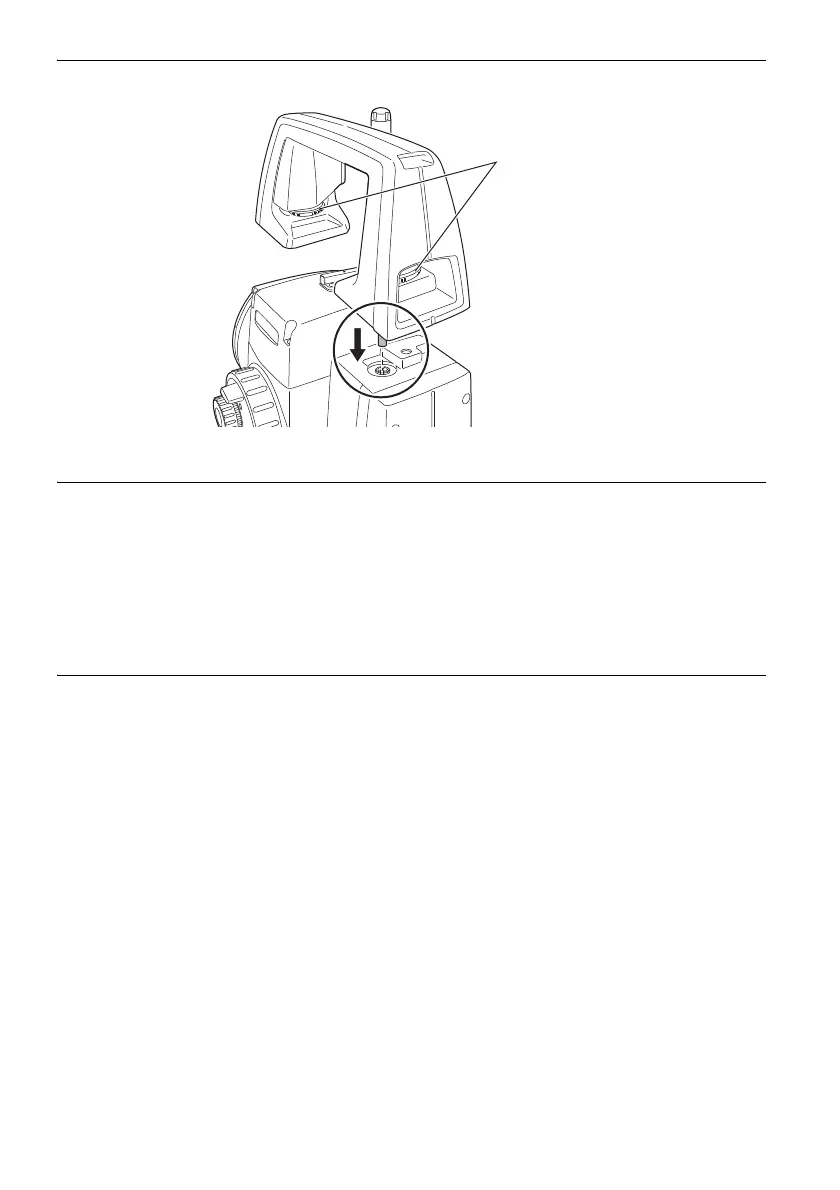

To attache the handle, position the handle as shown, tighten the 2 handle rocking screws securely.
Beam detector for Remote Controller and Contacts (Handle) (Option)
• Never touch the beam detector. The ability of the system to perform Turning may be adversely
affected. If the beam detector is dirty, carefully wipe it with the wiping cloth.
• If the contacts on the handle are wet or dirty, the ability of the system to perform Turning may be
adversely affected. After using instruments in humid or dusty environment, detach the handle and
carefully wipe contacts with the wiping cloth.
Detaching the instrument from the tribrach
1. Loosen the tribrach locking screw by turning 2
or 3 rotations in the counterclockwise
direction.
2. Turn the tribrach clamp counterclockwise to
loosen.
3. Lift the instrument to detach.
