5. BASIC OPERATION

21

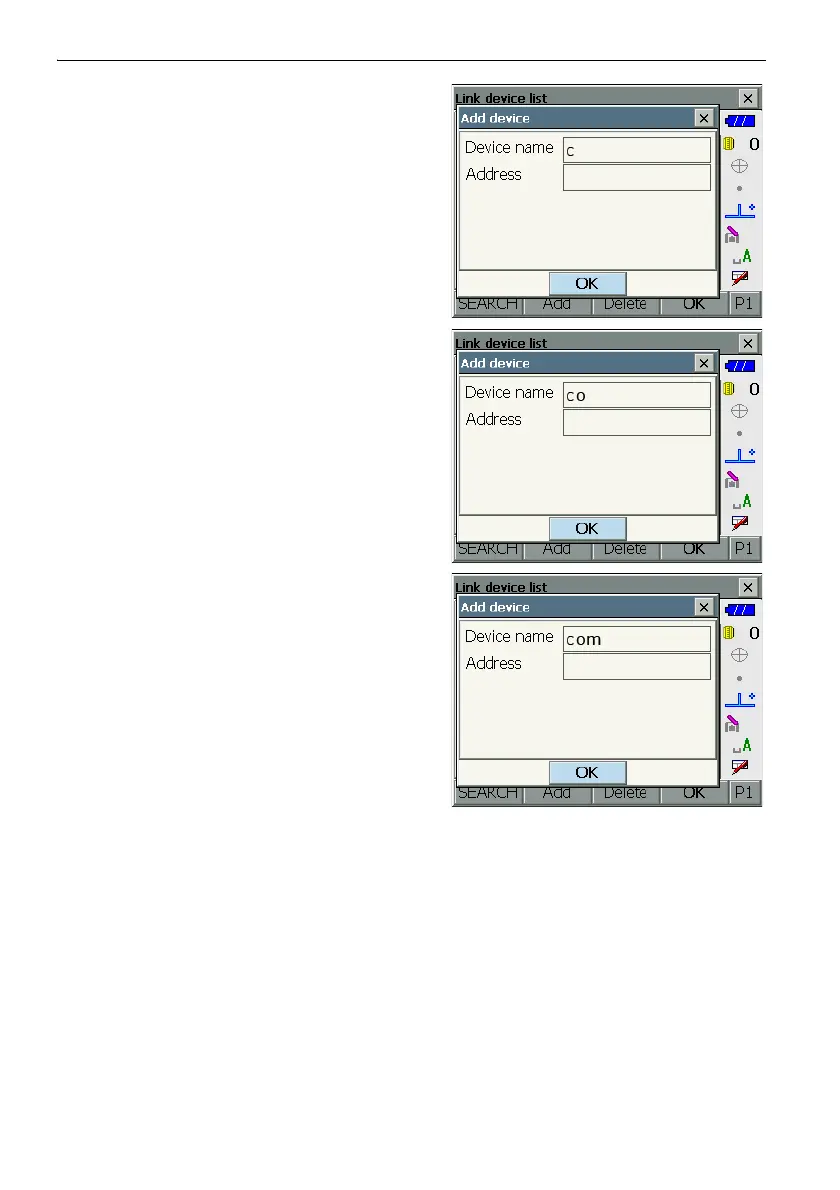

2. Press {7} three times.

"c" is displayed.

3. Press {5} three times.

"o" is displayed.

4. Press {}.

Press {5}. "m" is displayed.

5. Continue to input letters. Press {ENT} to

complete inputting.

P1
