5. BASIC OPERATION

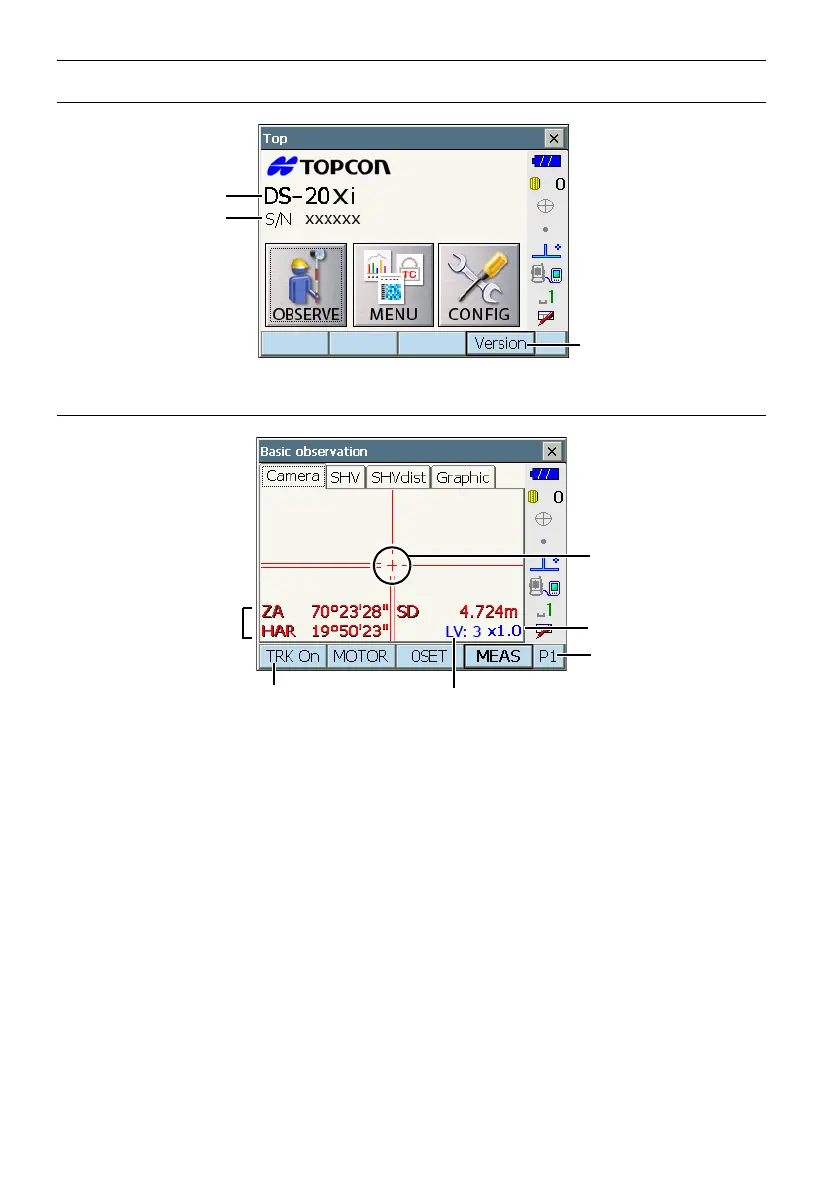

Top menu

Observation mode screen Camera tab

The "Camera" tab display can be modified using the softkeys in the second page and third page.

"13. MANEGING THE CAMERA TAB"

Instrument name

Serial Number

Application

software version

Measurement values

Softkeys

Telescope reticle

Current magnification

Current brightness

(displayed only when brightness is changed)

(ZA, HAR, SD)



"Observation mode

screen SHV tab"

Page number
