30
5. BASIC OPERATION
• Auto Tracking and Auto Pointing cannot be performed when "Reflectorless" has been selected
as the target type. will be displayed. Auto Tracking cannot be performed when "Sheet"
has been selected as the target type. will be displayed
• An arrow indicating turn direction will be displayed when the instrument is rotating at a fixed
velocity.
"14.3 Turning the Instrument from the Reference Angle to a Specified Angle"

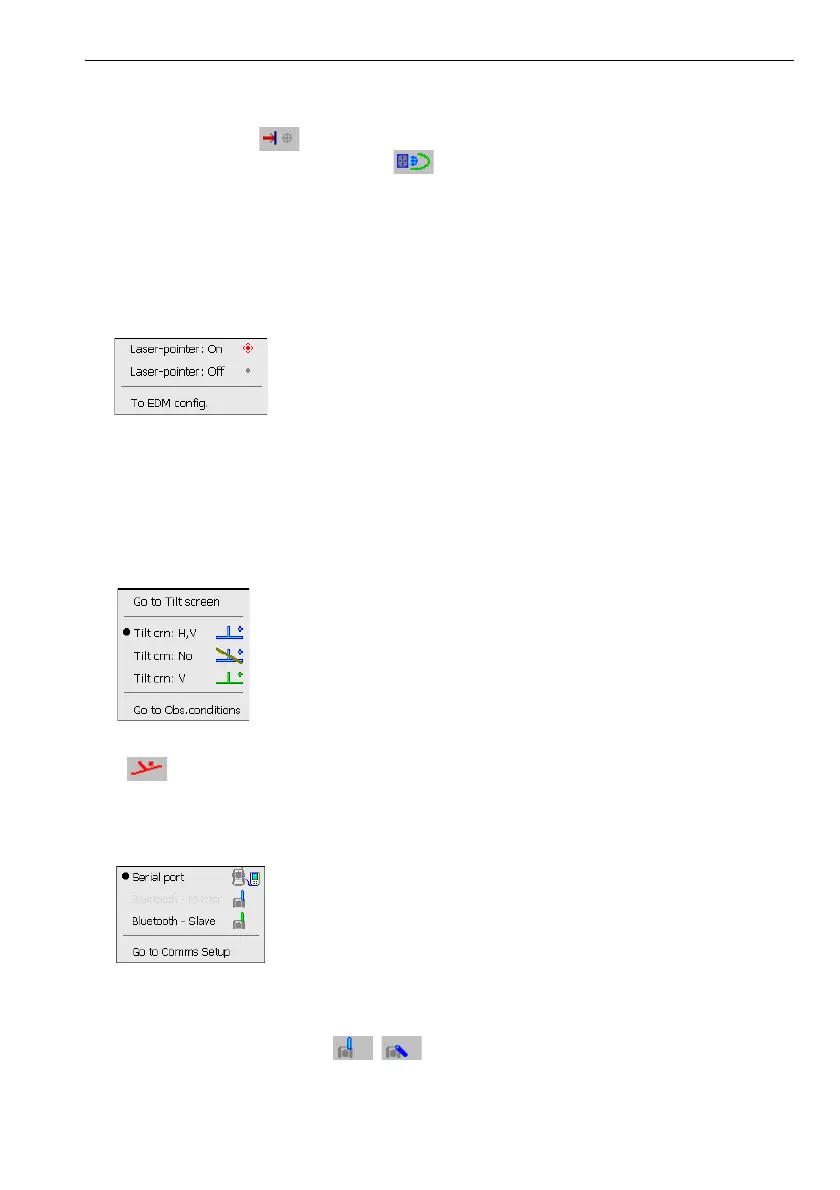

(4) Laser-pointer icon
Configuration of laser-pointer status.
Switching the laser-pointer ON/OFF: "5.1 Basic Key Operation"
: Laser-pointer ON
: Laser-pointer OFF
• The laser-pointer will be automatically switched OFF during distance measurement.
(5) Tilt angle compensation icon
The vertical and horizontal angles are automatically compensated for small tilt errors using the
dual-axis tilt sensor. This icon displays the status of this function.
: Horizontal and vertical tilt angles compensated (blue)
: No compensation
: Only vertical tilt angle compensated (green)
• is displayed when the instrument is out of level.
(6) Communication status with external devices icon
Selection and configuration of communication status with external devices. This icon is not
displayed in Program mode.
: Connection via RS232C cable
: Connection via Bluetooth wireless technology (DS set as "Master"
device) (blue antenna)
: Connection via Bluetooth wireless technology (DS set as "Slave" device)
(green antenna)
• When Bluetooth communication is selected (DS set as "Master" device) a connection can be
initiated/canceled by tapping / .
Connection status to external devices is displayed as follows.
To Next Page
