Configuring the Receiver
P/N 7010-0736
3-27
2. Start PC-CDU on your computer. The PC-CDU main screen
displays (Figure 3-19).

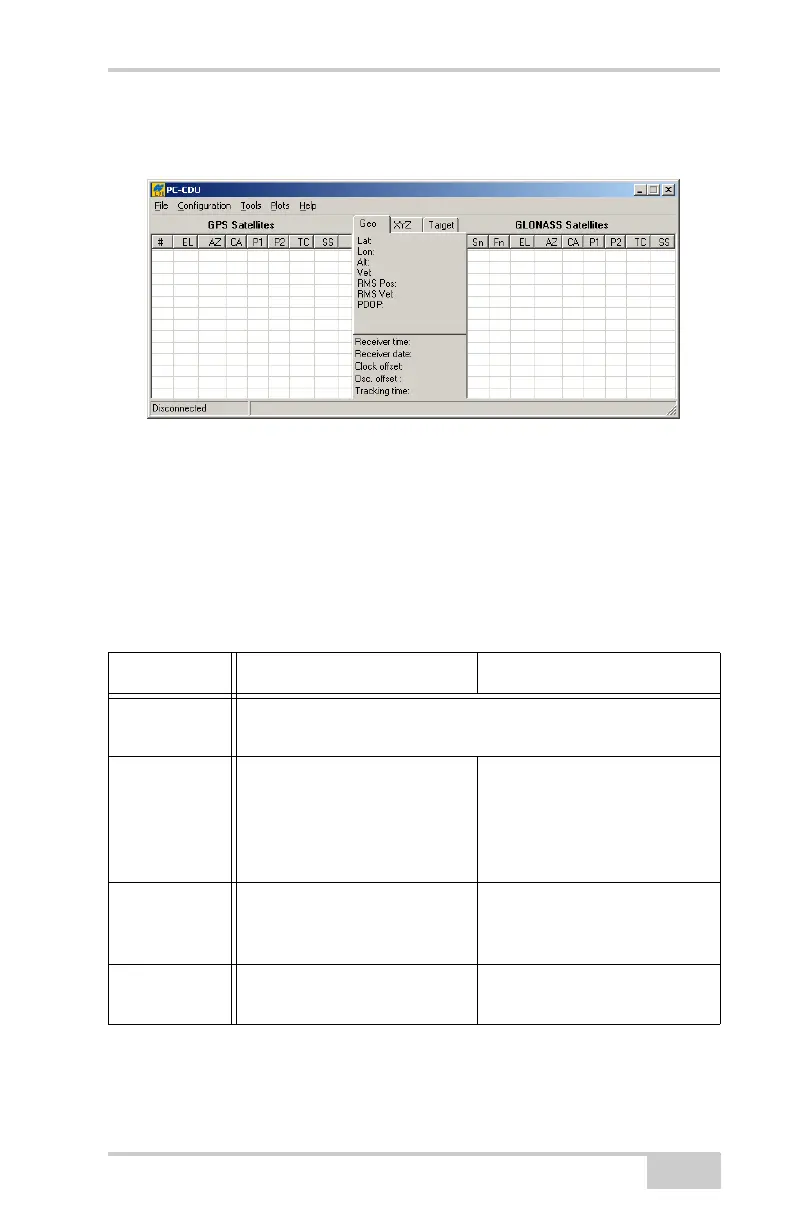

Figure 3-19. PC-CDU Main Screen
Notice that the lower-left hand corner shows the receiver status as
“Disconnected”.
3. Click FileConnect.
4. On the Connection Parameters dialog box, select the following
parameters (Table 3-8), and click Connect (Figure 3-20).
Table 3-8. Connection Parameters
Parameter RS232 or Bluetooth USB
Connection
Mode
Select Direct.
Port Select the port connecting the
computer and receiver
(typically COM1, COM2 for
RS232 and COM3, COM4
for Bluetooth)
Select USB
Baud Rate Select the communication rate
between the receiver and the
computer (usually 115200).
n/a
Rec ID n/a Select the receiver’s
identification number.
