Introduction
Indicate System Components
3
Excavator Indicate System P/N: 1022461-01
Sitting in the cab facing forward, the sensor angles are 0° straight ahead (horizontal), +90° straight
up, and -90° directly down (
Figure 2).

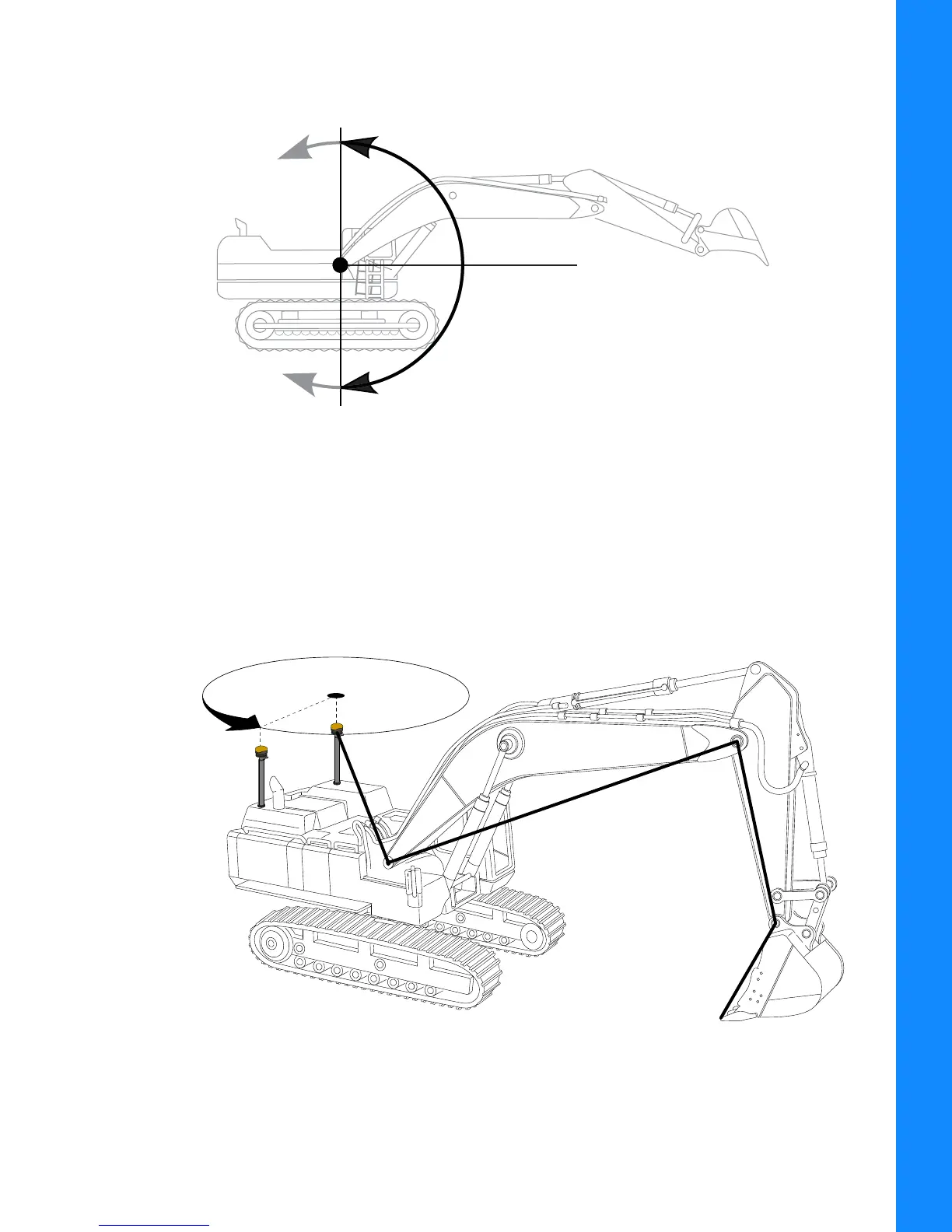

Figure 2: Angle Convention Used For Tilt Sensors
The Main and Auxiliary (Aux) antennas provide positional and heading information.
• Main antenna – determines 3D machine position.
• Aux antenna – determines heading using relative position.
Using TS-i3 sensors, the 3D position of the bucket is projected from the Main antenna.
Figure 3: Tilt Sensor Positional and Heading References
Main Antenna
Position
Aux Antenna
provides
heading
Project position from
Main Antenna to bucket teeth
