Hitch Sensor
The hitch sensor is the most challenging sensor to mount to keep the sensor and cables protected.
If a quick release coupler is installed on the excavator, the most accurate and safe place to mount the
sensor is on the inside of the coupler
.
An alternative mounting location is on the left side of the DogBone, either on the inside or the outside
of the DogBone itself; see
“DogBone Sensor (Optional Mounting Location)” on page 25.
If no hitch sensor is used select None (hanging attachment).
When mounting the attachment sensor, keep the following in mind (Figure 38):
• Position the hitch on the ground (bucket flat on the ground) before mounting the sensor.
• Mount the sensor between the attachment pivot pin and the linkage pin as shown in Figure 38.
• Sensor is orientation Left/Right.

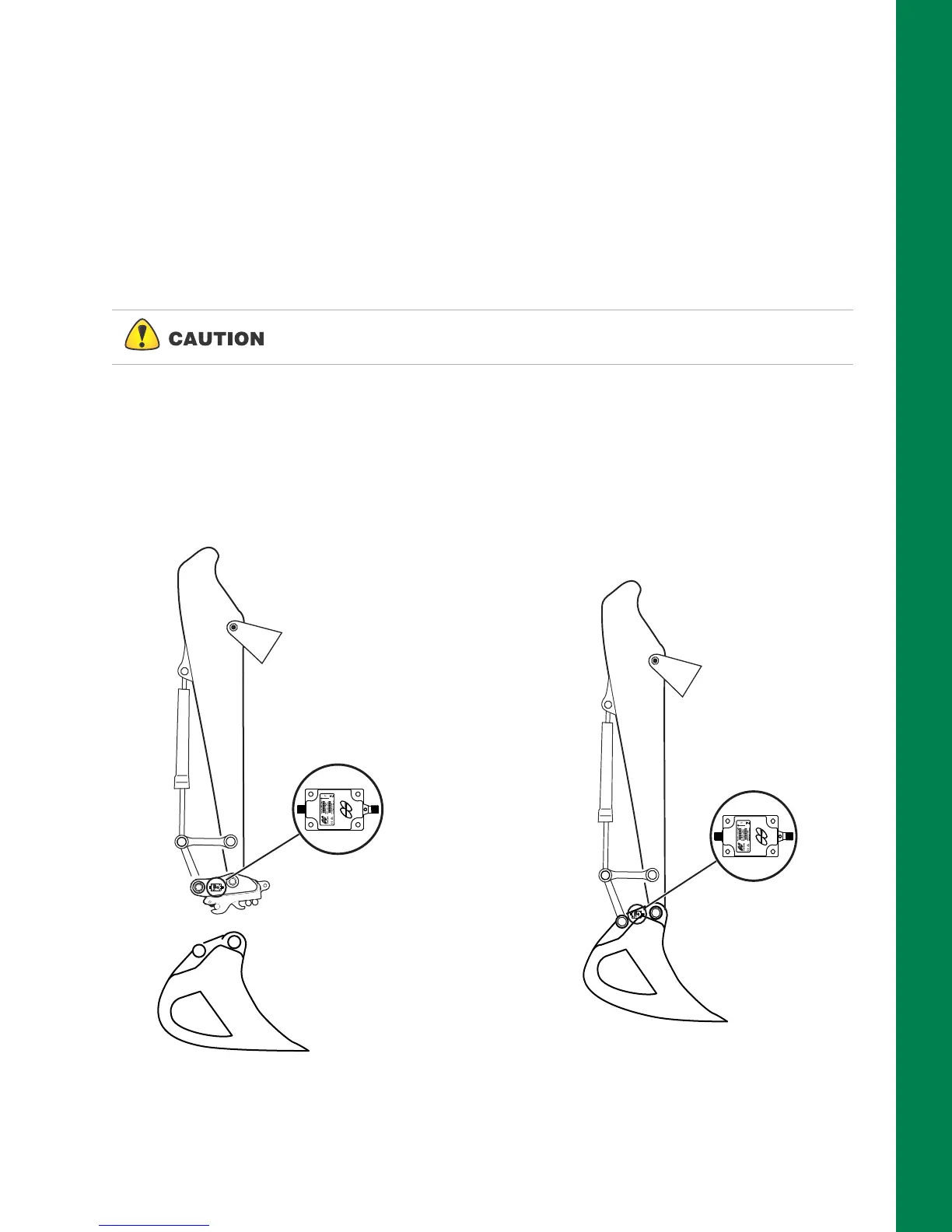

Figure 38: Quick-release and Attachment Sensor Mounting
TS-i3 sensors are only mounted on the left or right of the DogBone or
quick-release.
Correct
Quick-release Coupler
Mounting
Orientation
Correct
Attachment
Mounting
Orientation
