Calibration
Excavator Hitch
52
Excavator Indicate System P/N: 1022461-01

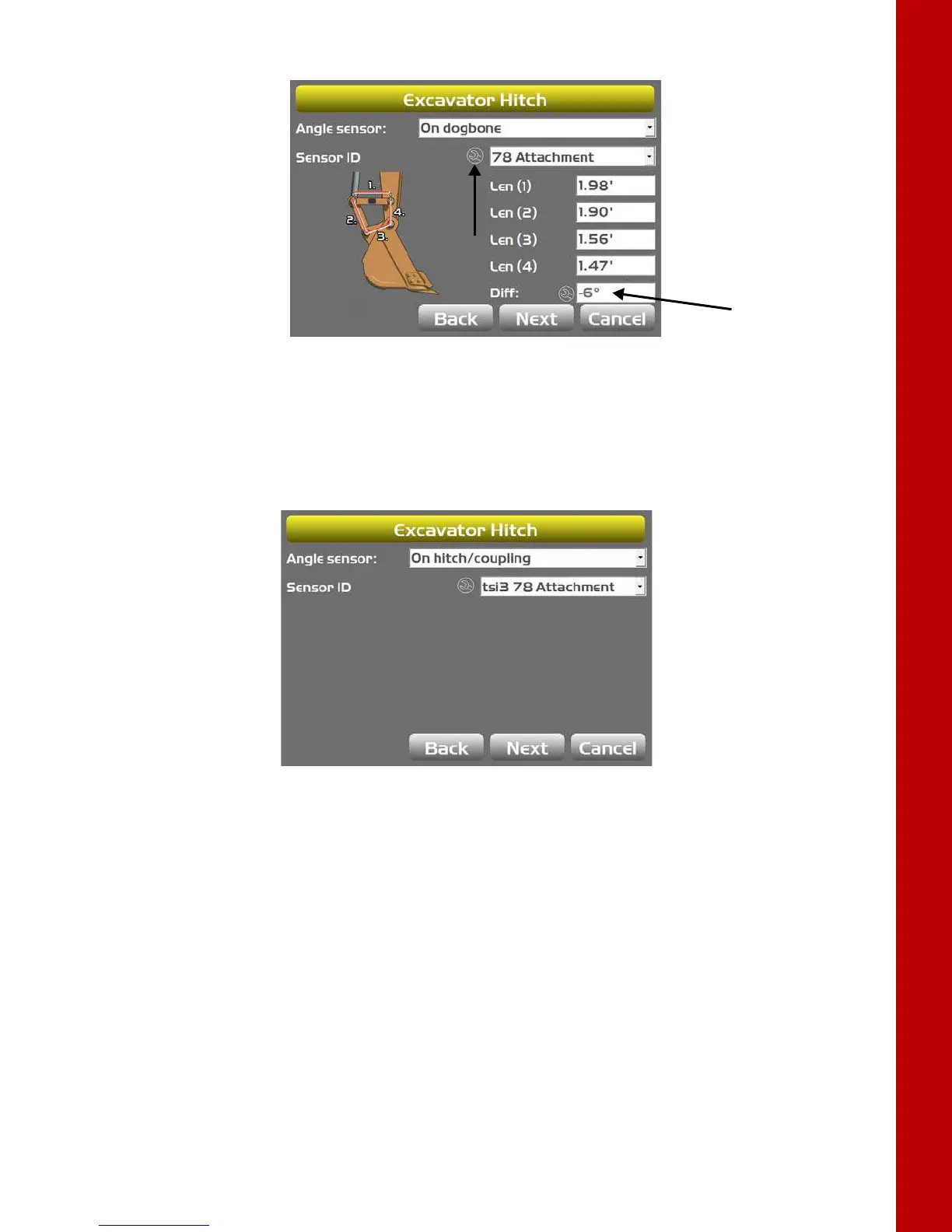

Figure 70: Determine Stick Angle Difference
9. If this is the last sensor physically connected to the machine, see “CAN Termination” on page 23.
On Hitch/Coupling
1. When performing the on hitch/coupling sensor calibration, position the bucket at -90° degrees.
Figure 71: On Hitch/Coupling
