Installation
MC-X1 Controller
30
Excavator Indicate System P/N: 1022461-01

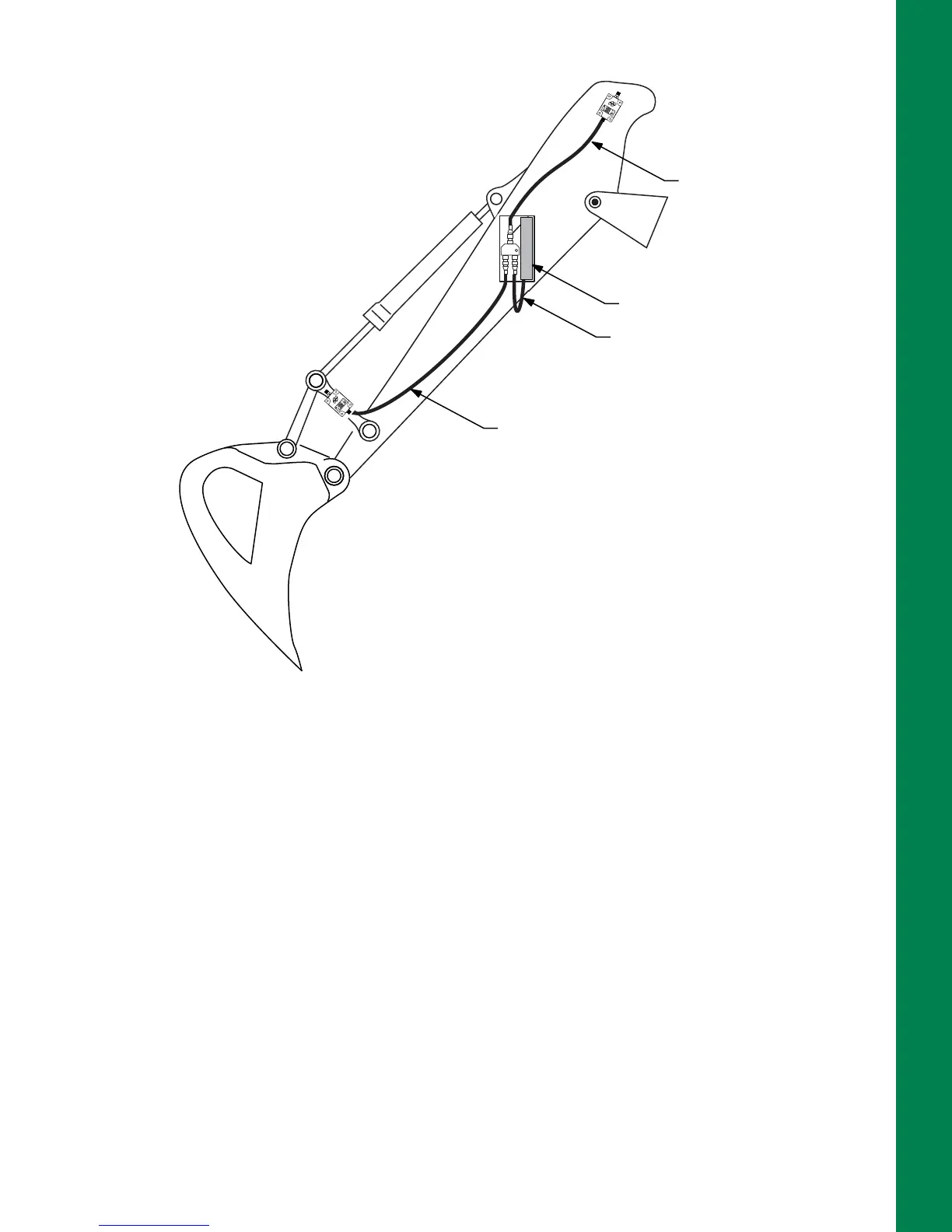

3. Route the cables as shown in Figure 44.
Figure 44: LS-B10W Cable Routing
MC-X1 Controller
Install the MC-X1 Controller onto the machine’s body using the magnet mounts provided, and connect
the cable to the GX Series Display.
S-B10W Laser Receiver Setup
LS-B10W Laser Receiver
LS-B10W Cable
Attachment Sensor Cable
Stick Sensor Cable
To Next Page
