Topcon MC-X1 - Connector Pinouts

MC-X1
69
Specifications
Excavator Indicate System P/N: 1022461-01

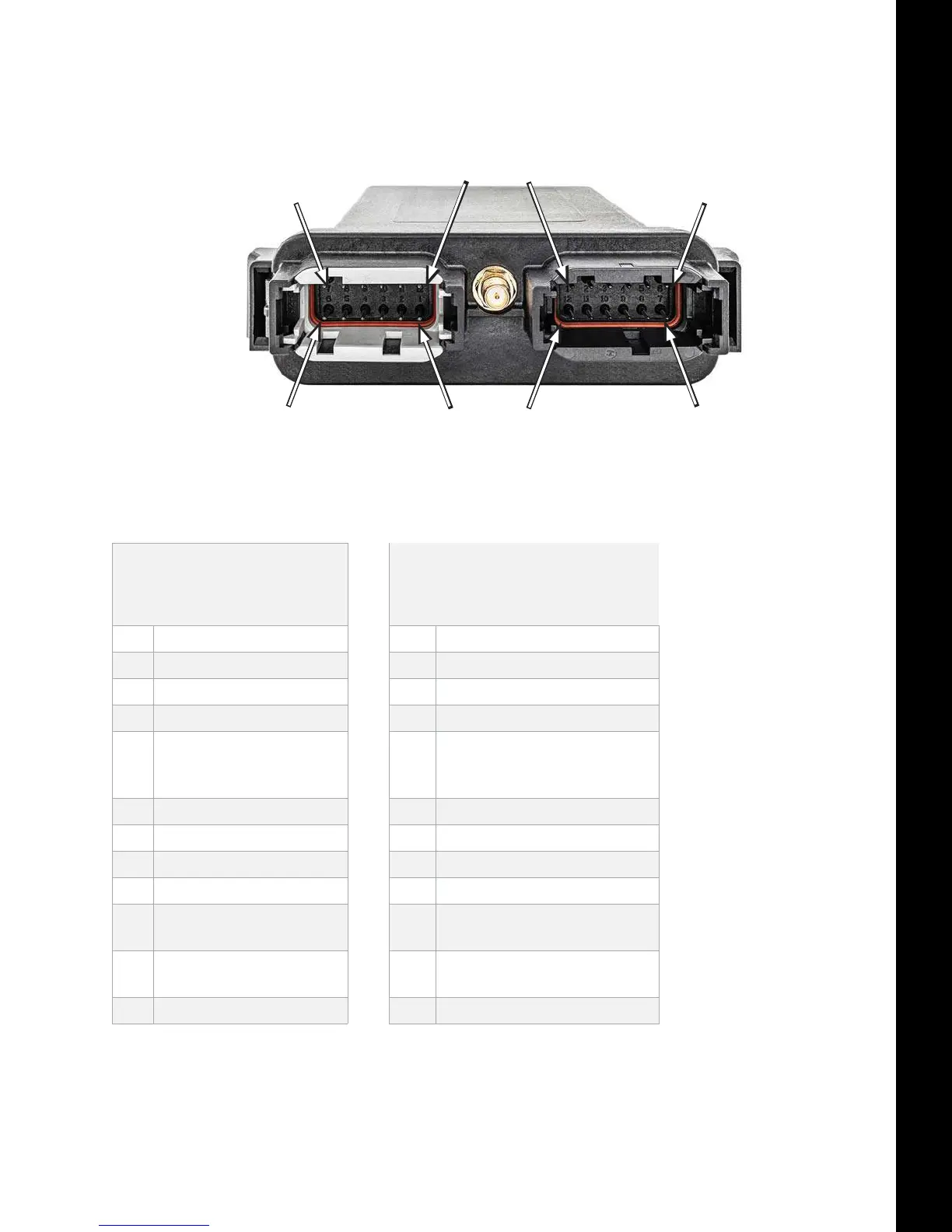

Connector Pinouts
Conn A - DTM06 12-pin
(A-coded, Gray)
Conn B - DTM06 12-pin
(A-coded, Gray)
1 Power In 1 Ethernet – RX+
2 Ground 2 Ethernet – RX-
3 Ground 3 Ethernet – TX+
4 Conditioned Power Out 4 Ethernet – TX-
5 Ignition input (HW
interlock and input to
CPU)
5 CAN 2 – Low
6 Ground 6 CAN 2 – High
7 Ethernet – RX+ 7 Conditioned power out
8 Ethernet – RX- 8 Ground
9 Ethernet – TX+ 9 Ground
10 Ethernet – TX- 10 Digital In/Out, RS-232 RX,
PPS/Event In/Out
11 CAN 1 – L 11 Digital In/Out, RS-232 TX,
PPS/Event In/Out
12 CAN 1 – H 12 Conditioned Power Out
Conn A
Conn B
7 6
12
7
6
1
12
1
