MC-X1 Connectivity and Configuration
Loading GNSS Firmware
11
Excavator Indicate System P/N: 1022461-01

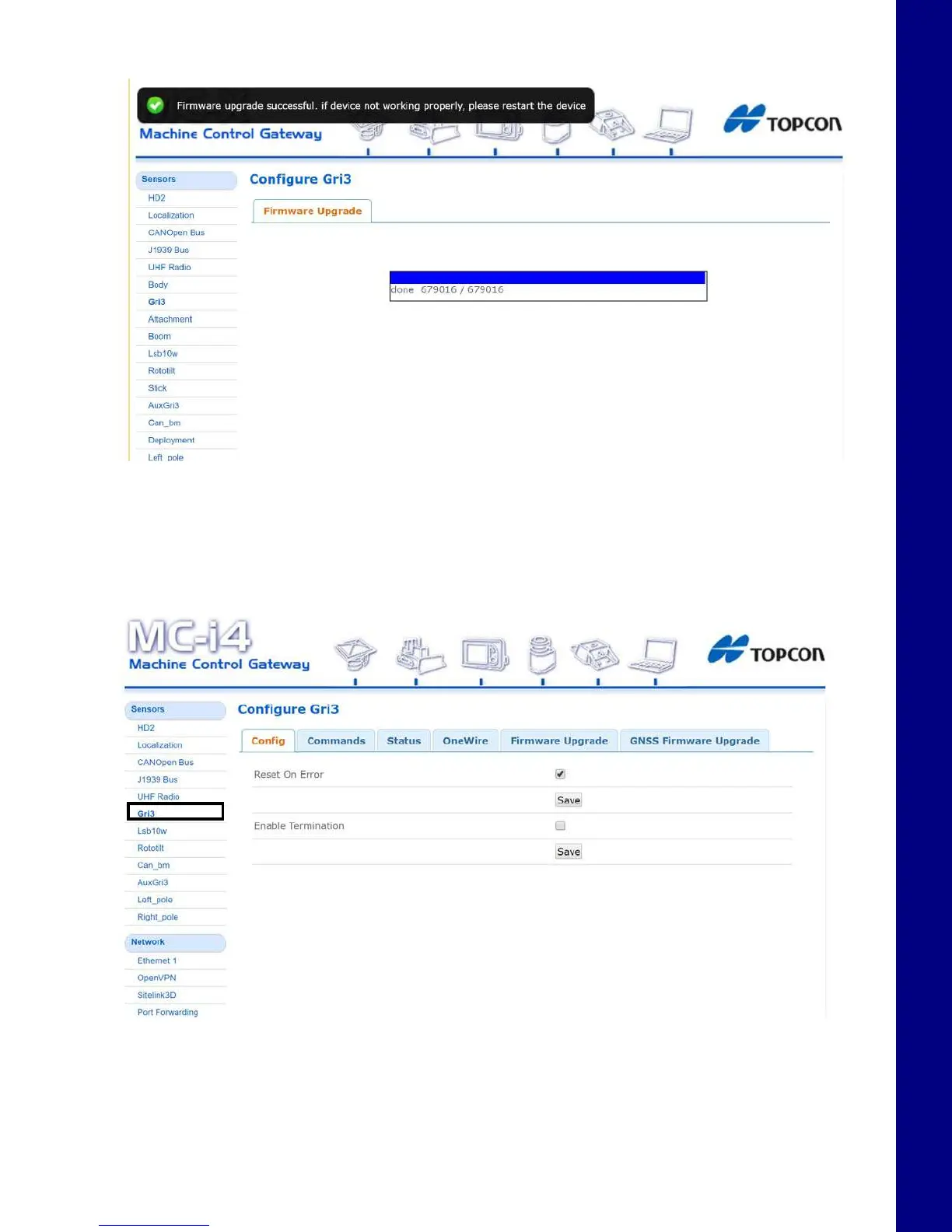

A notification appears once the upgrade process is complete (Figure 17).
Figure 17. Firmware Upgrade Successful
5. Select AuxGRi3 under the Sensors tab, and repeat steps 2 through 4 for the Auxiliary antenna.
Loading GNSS Firmware
1. Select the GR-i3 menu under Sensors.
Figure 18. GNSS Firmware - GR-i3
