Installation
CAN Termination
28
Excavator Indicate System P/N: 1022461-01
Boom Sensor
For the boom sensor, locate a convenient surface parallel to the boom center. The mounting location
may be on the left or right side of the boom (from the cab point of view). Be sure to place the sensor
at a location away from the boom pivot

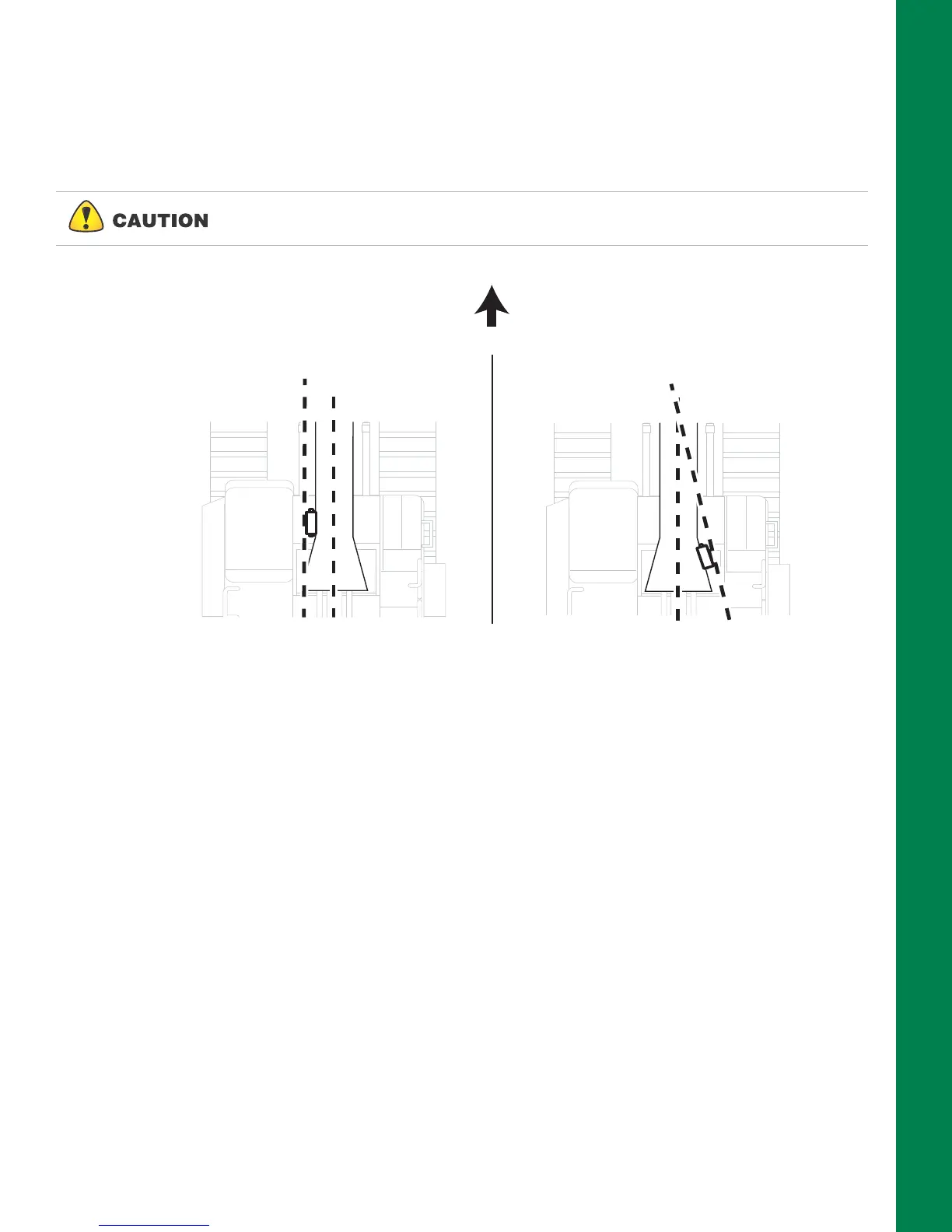

Figure 42: Boom Sensor Mounting
Secondary Boom Sensor
The secondary boom sensor mounting locations are identical to the primary boom sensor mounting
locations. If a second boom is installed, see the previous section
“Boom Sensor” on page 28.
Placing the boom sensor on a tapered section will cause calculation errors.
CL
Correct
Parallel Location
CL
Incorrect
Taper Location
Direction of Travel ( Away from Cab)
