Machine Measurements and Configuration
34
Excavator Indicate System P/N: 1022461-01
Machine Measurements and Configuration

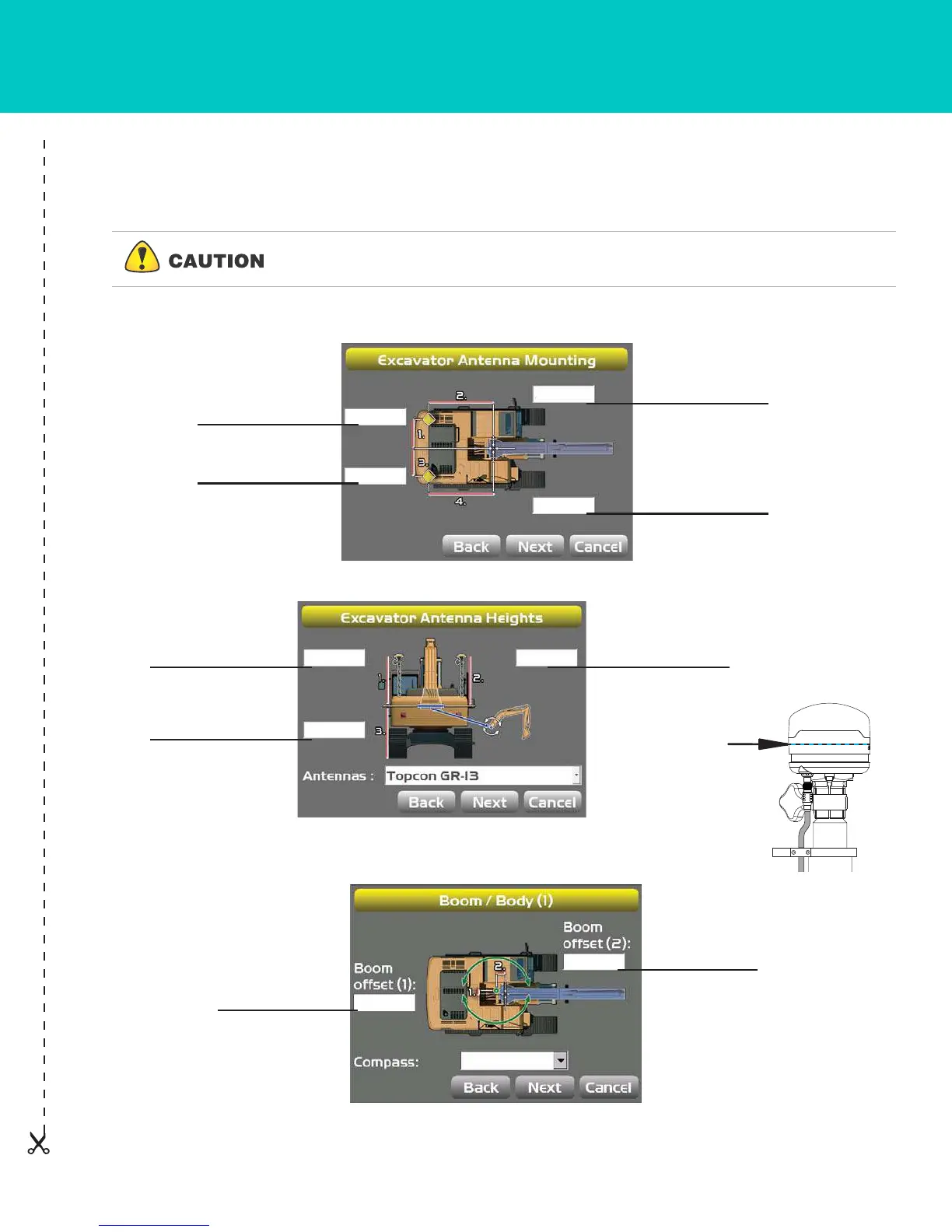

Taking Machine Measurements
Accurately measure and enter the machine dimensions into the 3D-MC machine builder, and write your
measurements on the lines at the side of the following screen captures.
GR-i3
Incorrect measurements or data entry errors have a direct affect on excavating
accuracy. Take each measurement twice to ensure accuracy.
GR-i3F GNSS Antenna
Heights
Note: Take the
Antenna Above
measurement from
the bottom of the
GR-i3 (the top of
the Vibration
Mount).
Boom/Body (1)
ĞŶƚĞƌŽĨZŽƚĂƟŽŶ
To Next Page
