Installation
TS-i3 Sensors
22
Excavator Indicate System P/N: 1022461-01

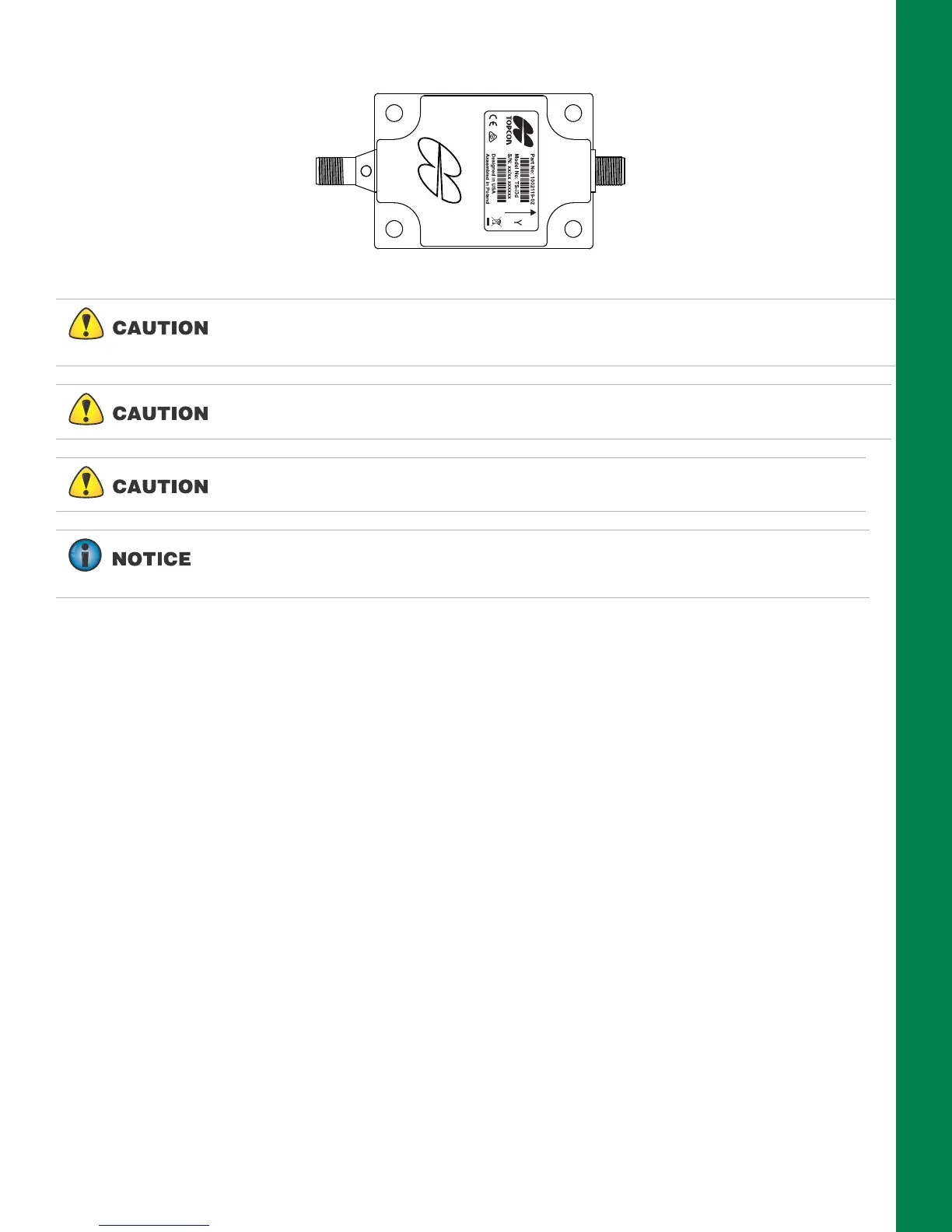

TS-i3 Sensor Orientation
Figure 34: TS-i3 Sensor Location and Direction
Mounting each tilt sensor within +/- 20° of the pivot centerline is a good practice.
Though not necessary for system performance, squaring the sensors to each part of
the machine makes for a cleaner looking installation.
All tilt sensor orientation is determined when the implement is horizontal (zero
degrees). The orientation of each tilt sensor is entered in 3D-MC.
It is recommended that the sensors be installed on the boom, stick and attachment
implements with serial numbers in ascending or descending order.
When entering sensor information, make note of each sensor’s serial number and
its orientation. TS-i3 sensor orientation for boom, stick, and hitch is only left or
right.
