Topcon MC-X1 - Stick Sensor Installation

Installation
CAN Termination
27
Excavator Indicate System P/N: 1022461-01
Stick Sensor
Locate a convenient surface to mount the sensor. Mounting the sensor close to the top of the stick
will help prevent damage during digging.
The mounting location shall be on the left or right side of the stick (from the cab point of view).

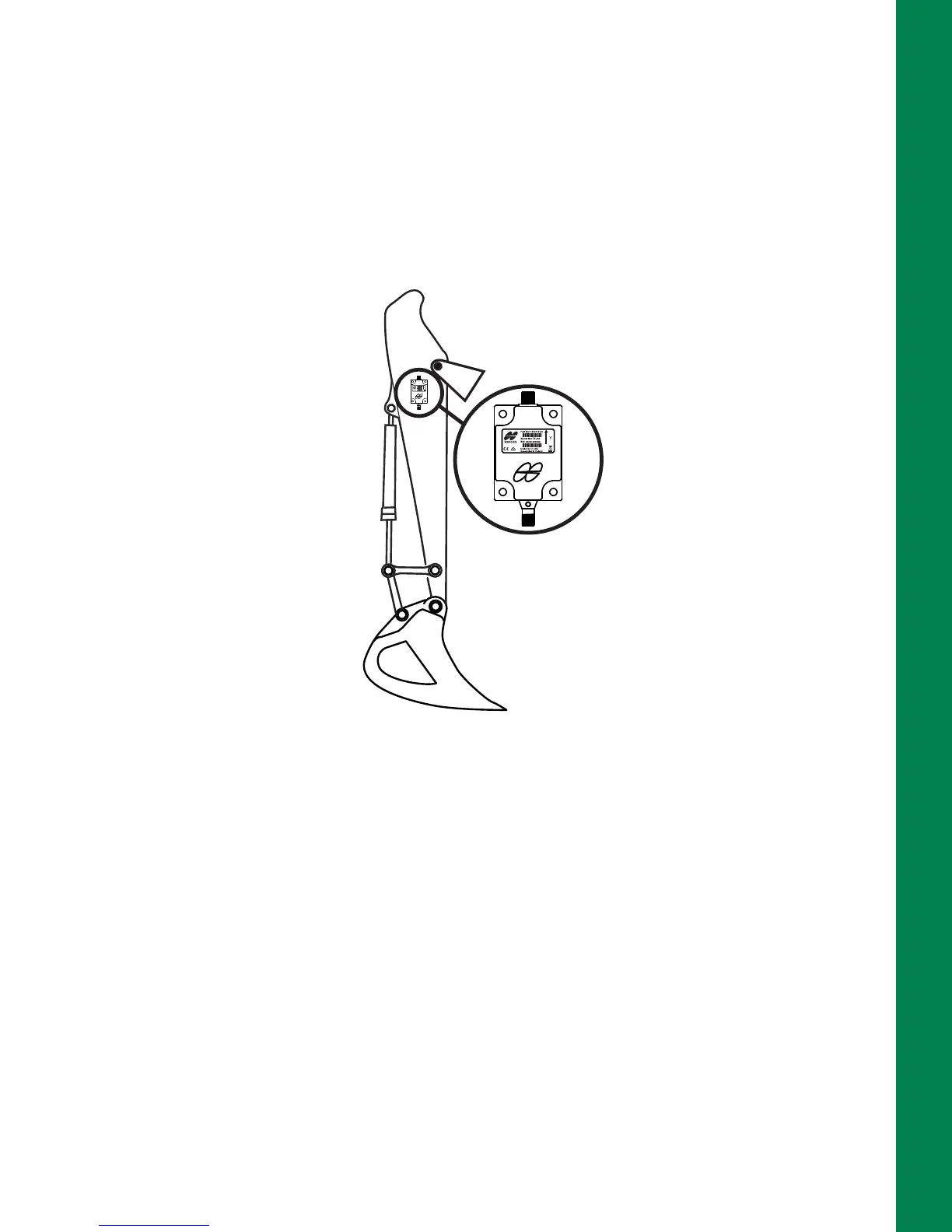

Figure 41: TS-i3 Stick Sensor Mounting
Correct Side
Location
