Topcon MC-X1 - 2 D System Configuration

Introduction
Indicate System Components
4
Excavator Indicate System P/N: 1022461-01
2D System Configuration

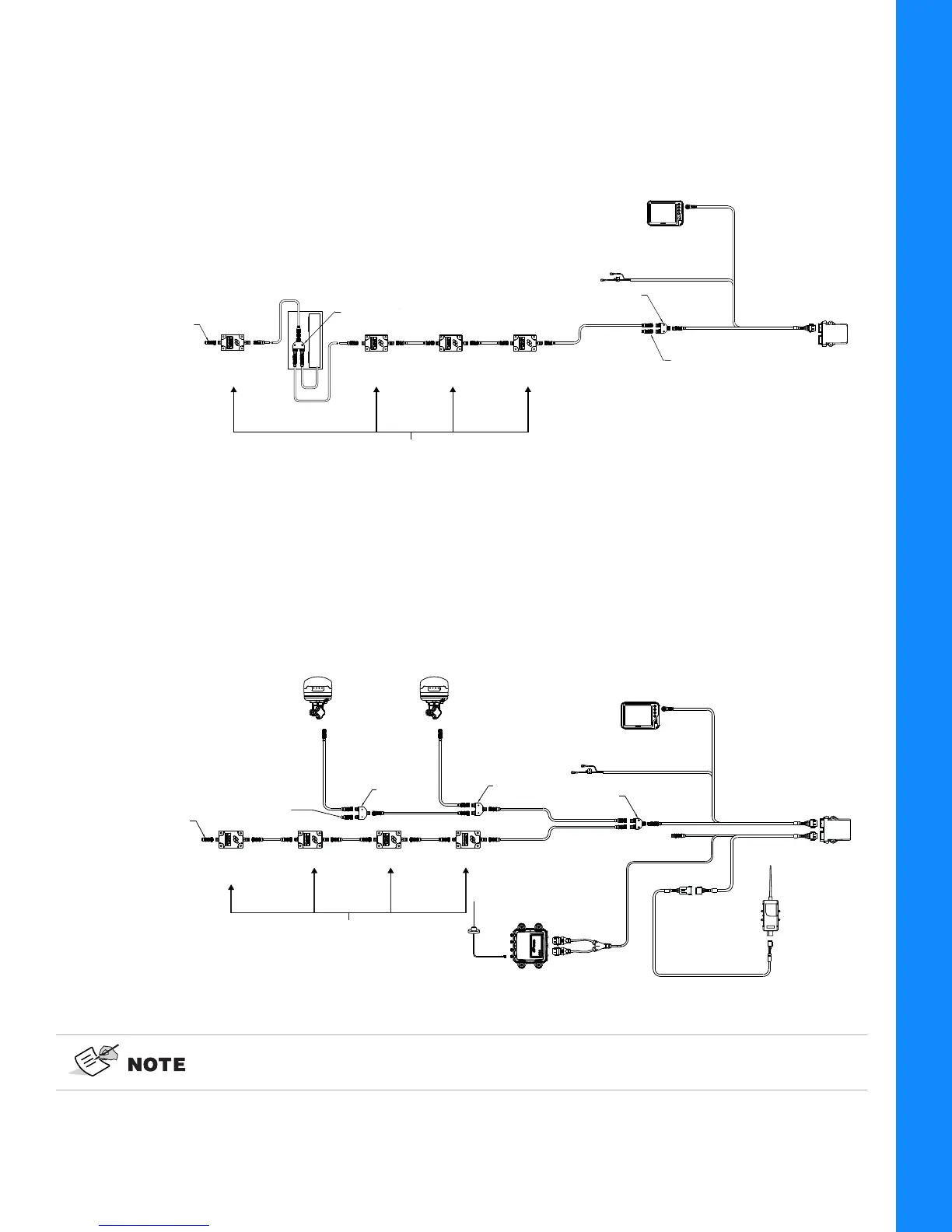

Figure 4 shows the basic cabling connections for the 2D excavator indicate system.
Figure 4: Basic Cable Connections - 2D Excavator Indicate System
3D System Configuration
Figure 5 shows the basic cabling connections for the 3D excavator indicate system with SL-100.
Figure 5: Basic Cable Connections - SL-100 3D Excavator Indicate System
+
-
MC-X1
GX SERIES DISPLAY
TS-i3 500 TILT SENSORS
BODY
BOOMSTICK
BUCKET
(HITCH)
CAN open
UNSWITCHED
VOLTAGE SUPPLY
1017652-01
9063-1167-XX
M12 CAN CABLE
4060-0586
SENSOR
TERMINATOR
3020-0623
F-M-M TEE
B
A
LS-B10W
LASER RECEIVER
AND BRACKET
3020-0526
M-M-M TEE
4060-0586
SENSOR
TERMINATOR
GR-i3
ANTENNA
RADIO
+
-
MC-X1
GR-i3
ANTENNA
BODYBOOMSTICKBUCKET
(HITCH)
CAN open
J1939
SERIAL
TS-i3 500 TILT SENSORS
UNSWITCHED
VOLTAGE SUPPLY
1017652-01
1026213-01
1018416-01
3020-0526
M-M-M TEE
9063-1167-XX
M12 CAN CABLE
4060-0586
SENSOR
TERMINATOR
3020-0623
F-M-M TEE
4060-0586
3020-0526
M-M-M TEE
SITELINK
SL-100
B
A
SL-100
SENSOR
TERMINATOR
GX SERIES DISPLAY
3D configurations may also include the LS-B10W laser receiver. See Figure 4 on
page 4.
