Topcon MC-X1 - Tilt Bucket Calibration

Calibration
Excavator Hitch
55
Excavator Indicate System P/N: 1022461-01
Tilt Bucket
1. On the GX Series display, tap the Power ButtonControlMachine setup. Select the
applicable machine file for the job and tap Edit. The Configuration name/type screen
appears.
2. Tap Next until you reach the Excavator Attachments screen, and then tap New to create a
new Tilting bucket, or tap Edit to calibrate an existing Tilting bucket.
3. Select Tilting Bucket from the drop-down menu, and enter the bucket Width and Length
(
Figure 75).
4. Enter a value for the tilt bucket Length (3), and select a Sensor ID for the tilt bucket sensor.

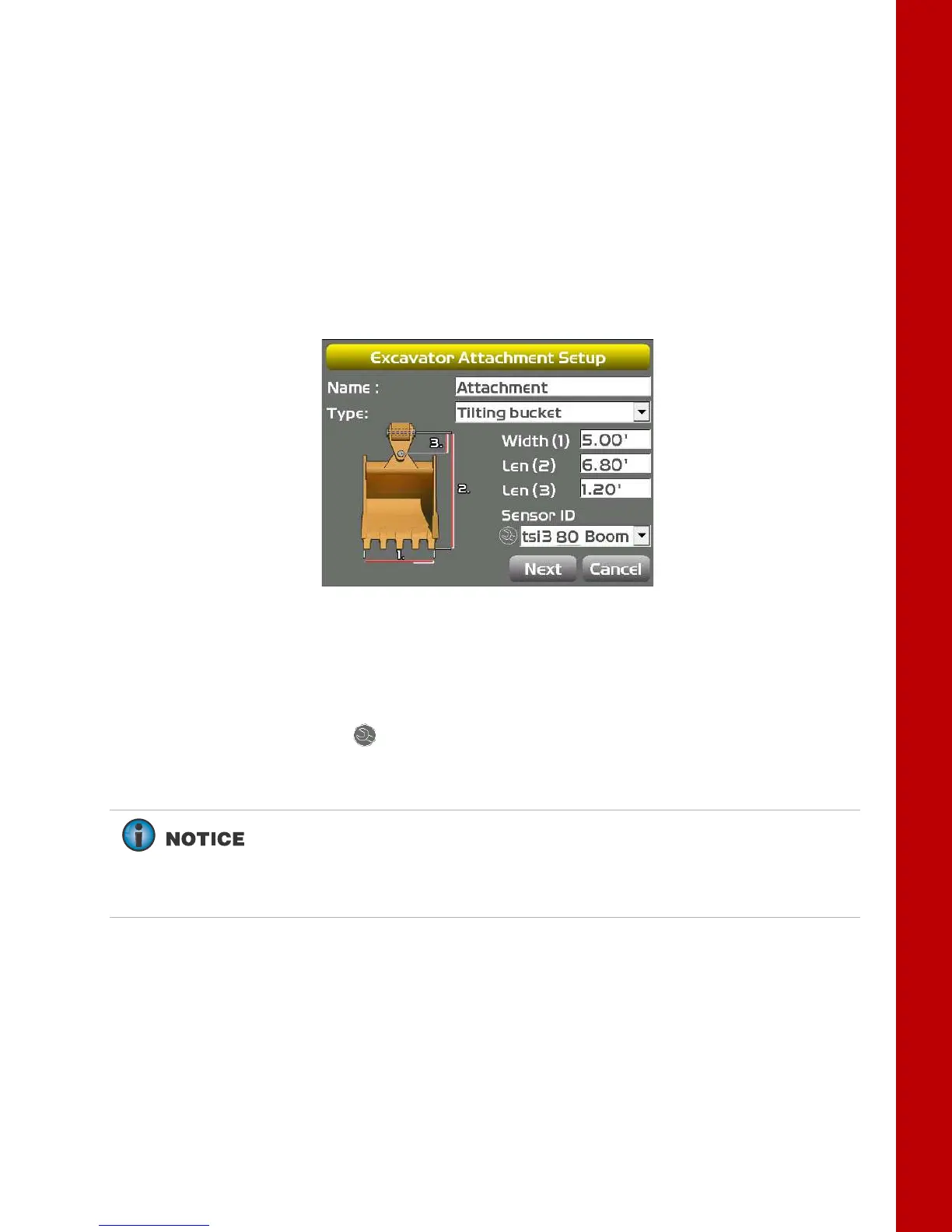

Figure 75: Enter Tilt Bucket Measurements
5. Using a carpenter’s level adjust the bucket until the tilt pin is horizontal.
6. Using a carpenter’s level, adjust the cross slope of the bucket until the bucket is level.
7. In 3D-MC, tap the Wrench icon next to the Sensor ID.
8. Select the sensor’s Orientation based on this position (Figure 76).
Note that the Single-axis TS-i3 sensor orientation is only 
label front / arrow right or label back / arrow right.
If using the Dual-axis TS-i3d, the orientation is label up / arrow front,
label up / arrow back, label up / arrow left, or

label up / arrow right.
