Calibration
Body Sensor
46
Excavator Indicate System P/N: 1022461-01
Figure 60: Body Calibrations for Latitudinal Slope
6. Position the machine on a flat and stable surface, free of obstructions.
7. Curl the stick and bucket in as close as possible to reduce tipping errors.

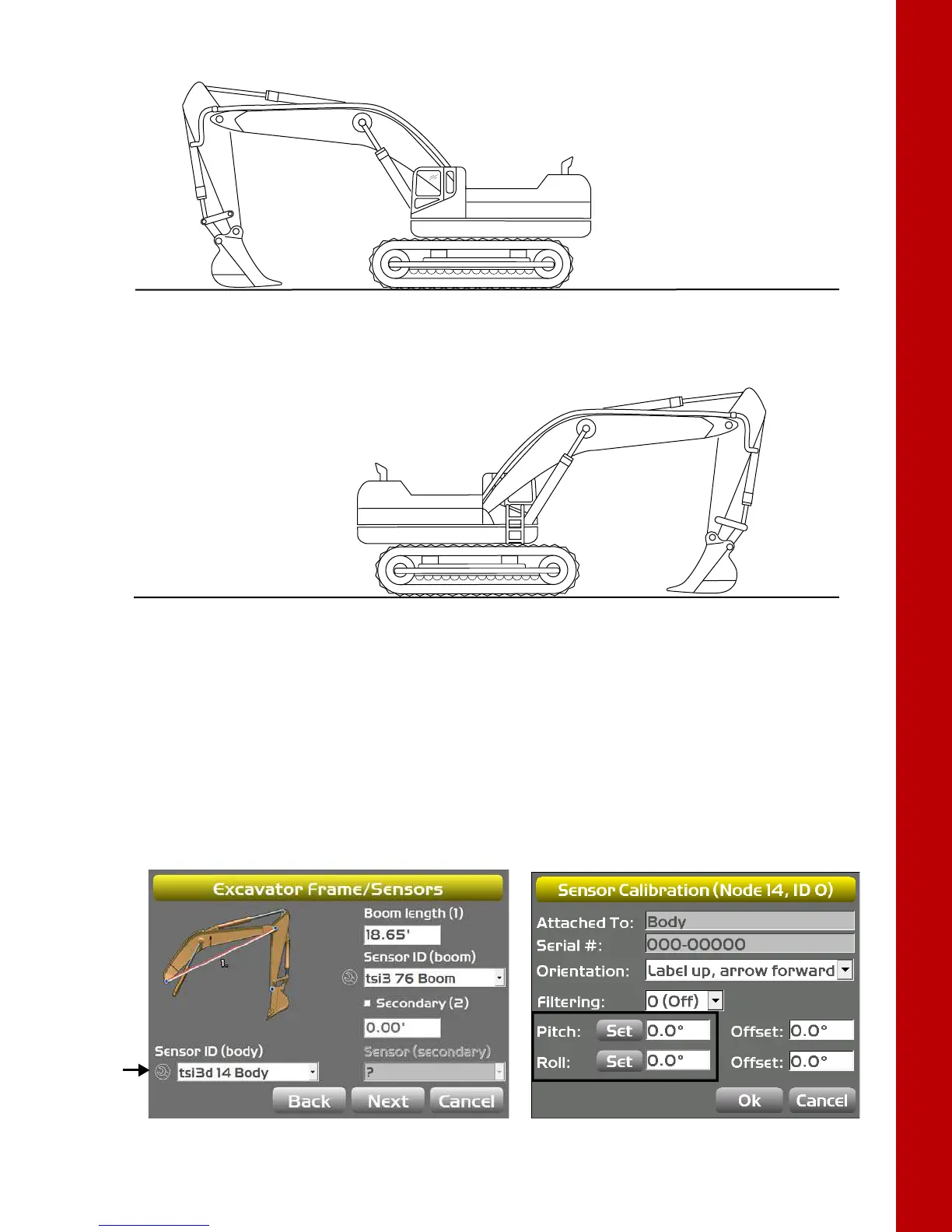

8. Rotate the body parallel to the tracks (Position 1) as shown in Figure 60.
9. Tap Set next to Pitch, enter the value as zero, and tap Set again (Figure 61); repeat for the
Roll value.
Figure 61: Set Pitch and Roll Values to Zero
Rotate 180° - Position 2
Starting Position - Position 1
