Calibration
Excavator Hitch
37
X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01

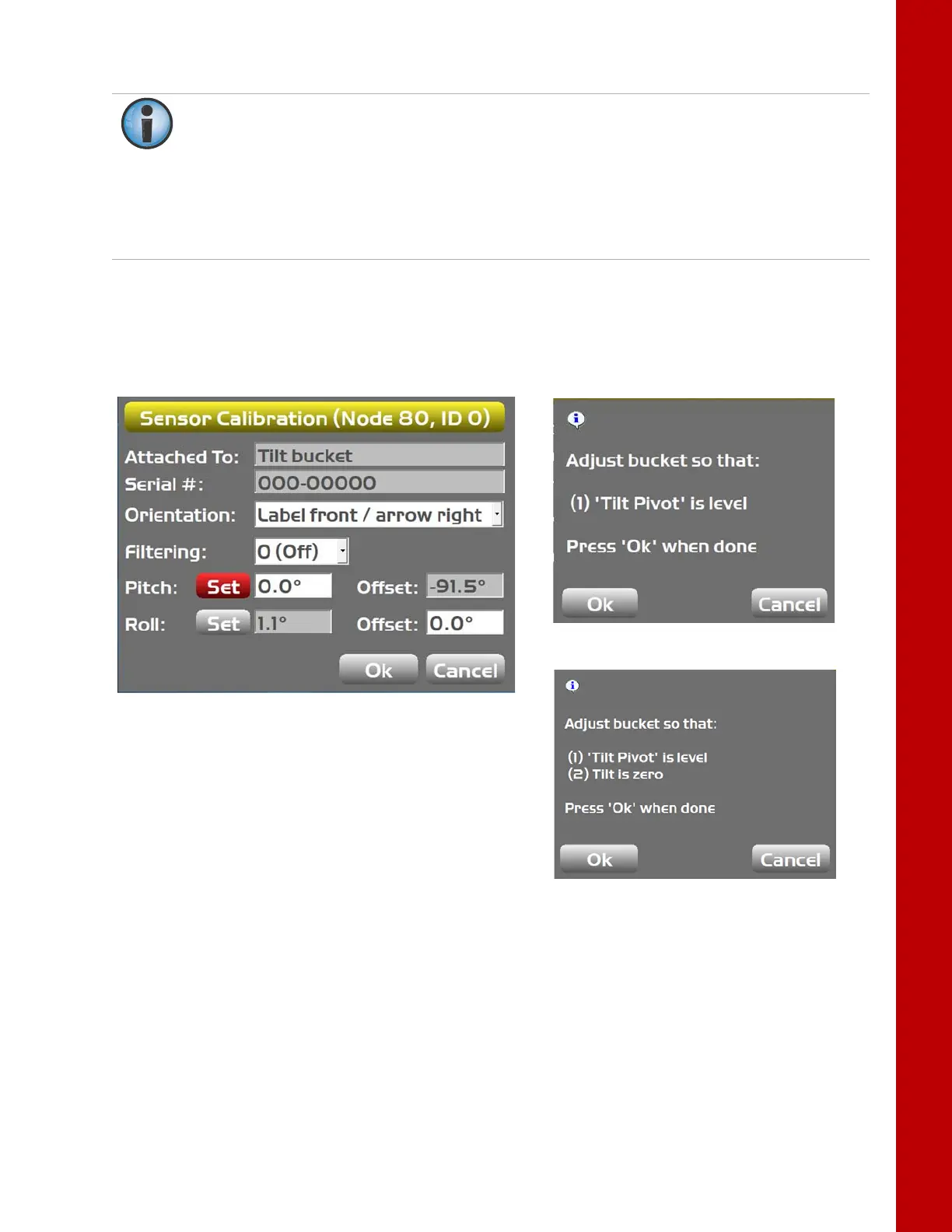

9. Click on the Set button for Pitch. A popup screen will appear.
Figure 46: Set Pitch
10. To set the pitch:
a. Single: Ensure the tilt axis (or pin) is horizontal. Tap Ok.
– The Pitch will be set to 0.0, and the relationship between the Tilt Pivot and the Hitch
sensor is recorded.
b. Dual: Ensure the tilt axis (or pin) is horizontal and the tilt is level. Tap Ok.
– The Pitch will be set to 0.0, and the relationship between the Tilt Pivot and the Hitch
sensor is recorded.
For both single axis TS-i3 Sensor and dual axis TS_i3d sensor follow steps 9 to 12
For tilt bucket always use the SET buttons to calibrate the tilt bucket. In calibration steps
9 to 12, 3D-MC calculates the relation (or position) between the hitch and tilt bucket
sensor, and stores the value.
Even when dual axis TS-i3d sensor for tilt bucket is used, the pitch will be used from the
hitch sensor.
Single-axis TS-i3
Dual-axis TS-i3d
