Machine Calibration
X63/X62 Installation and Calibration Manual
3-12
1. Position the machine on a stable surface free of obstructions and
rotate the body parallel to the tracks.
2. Place a zero slope rotating laser along the side of the machine to
shine on both the boom pivot and stick pivot.
3. Adjust the laser height to strike the center of the boom pivot
(Figure 3-9).
4. Move the boom to align the stick pivot with the laser
(Figure 3-9).

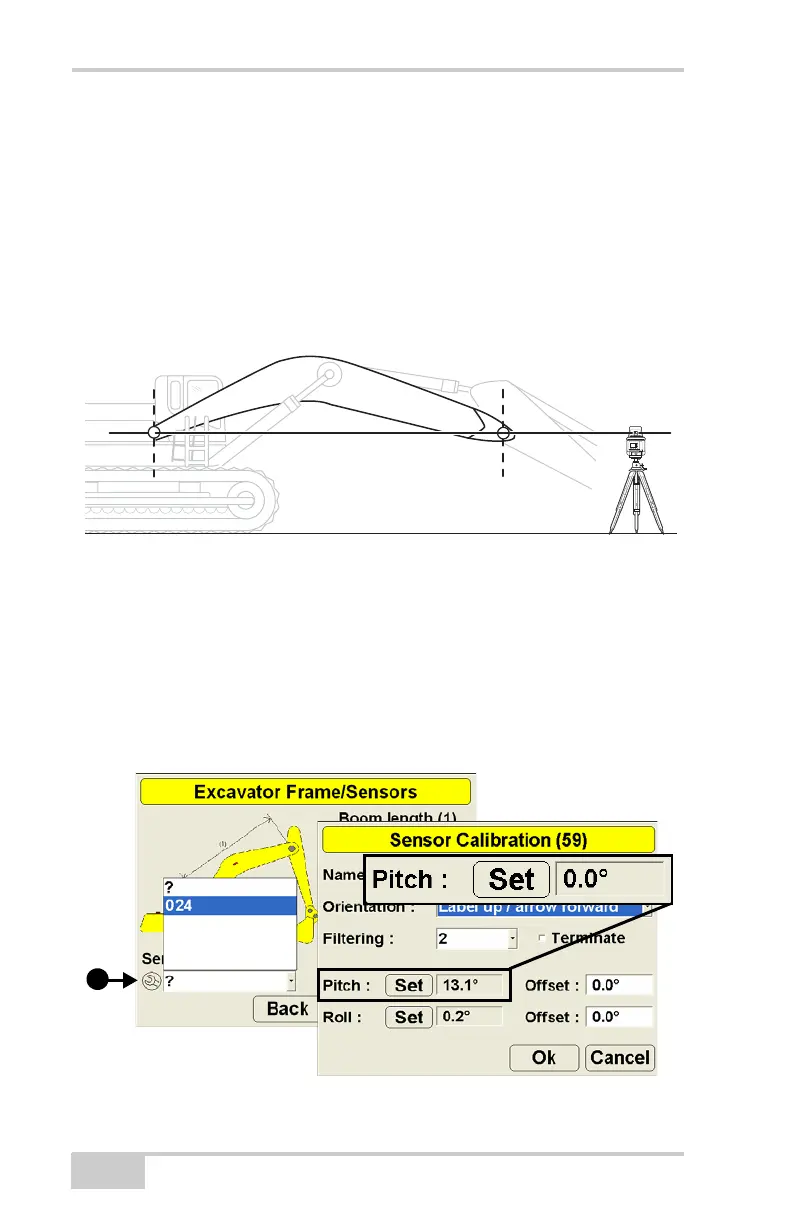

Figure 3-9. Place Laser to Strike Center of Boom Pivot
5. In 3DMC, tap Topcon LogoControlMachine setup.
6. Select the applicable machine file for the job and press Edit.
Press Next to navigate to the Excavator Frame/Sensors screen.
7. Tap the Wrench icon that corresponds to the boom sensor
(Figure 3-10).
8. Set the Pitch to zero and press Ok (Figure 3-10).
Figure 3-10. Set Pitch Value to Zero
