Machine Calibration
X63/X62 Installation and Calibration Manual
3-28

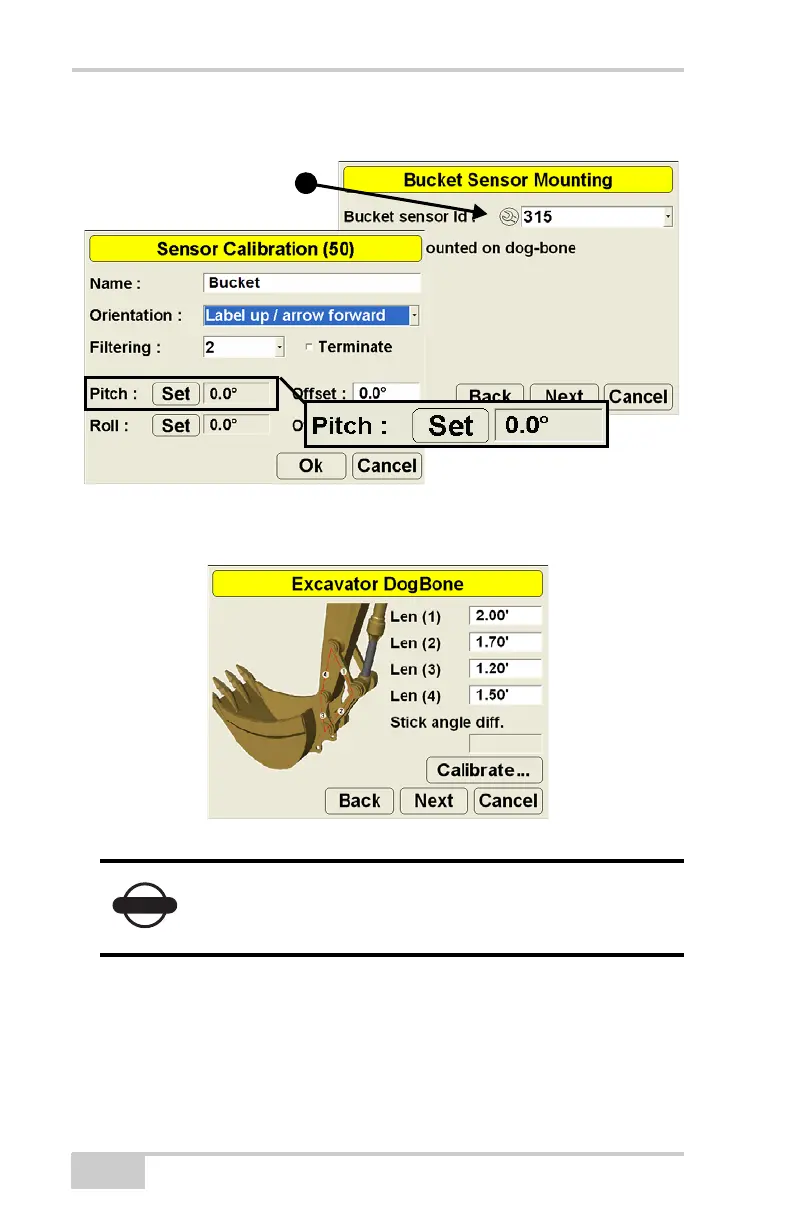

Figure 3-27. Set Pitch Value to Zero
Figure 3-28. Determine Stick Angle Difference
The dog-bone sensor is normally mounted on the
left side, though the Excavator DogBone screen
depicts the sensor mounted on the right side.
