4: INSTALLATION
1. Put on work gloves and eye protection.
2. Remove the screws from the bottom of the crate with a
Phillips screwdriver.
CAUTION! Team Lift Required:You must have
the aid of more than one person to lift and
move the object. The object is heavy, and lifting
it by yourself can cause serious injury.
3. Before you lift the top of the shipping crate off of the
pallet, verify that you have assistance to help you. We
recommend lifting it with at least two people.
4. Remove the top of the shipping crate and set it aside.
5. Remove the plastic wrap from the machine stand.
6. Inspect the item(s):
l Photograph any damage that may have occurred
during shipping.
l Verify the received goods against the packing list.
If there is any damage or shortages, you must contact
Tormach within 30 days of receipt. Email
support@tormach.com to contact Tormach Technical
Support for guidance on how to proceed.
7. Remove the coolant tank from the pallet and set it aside.

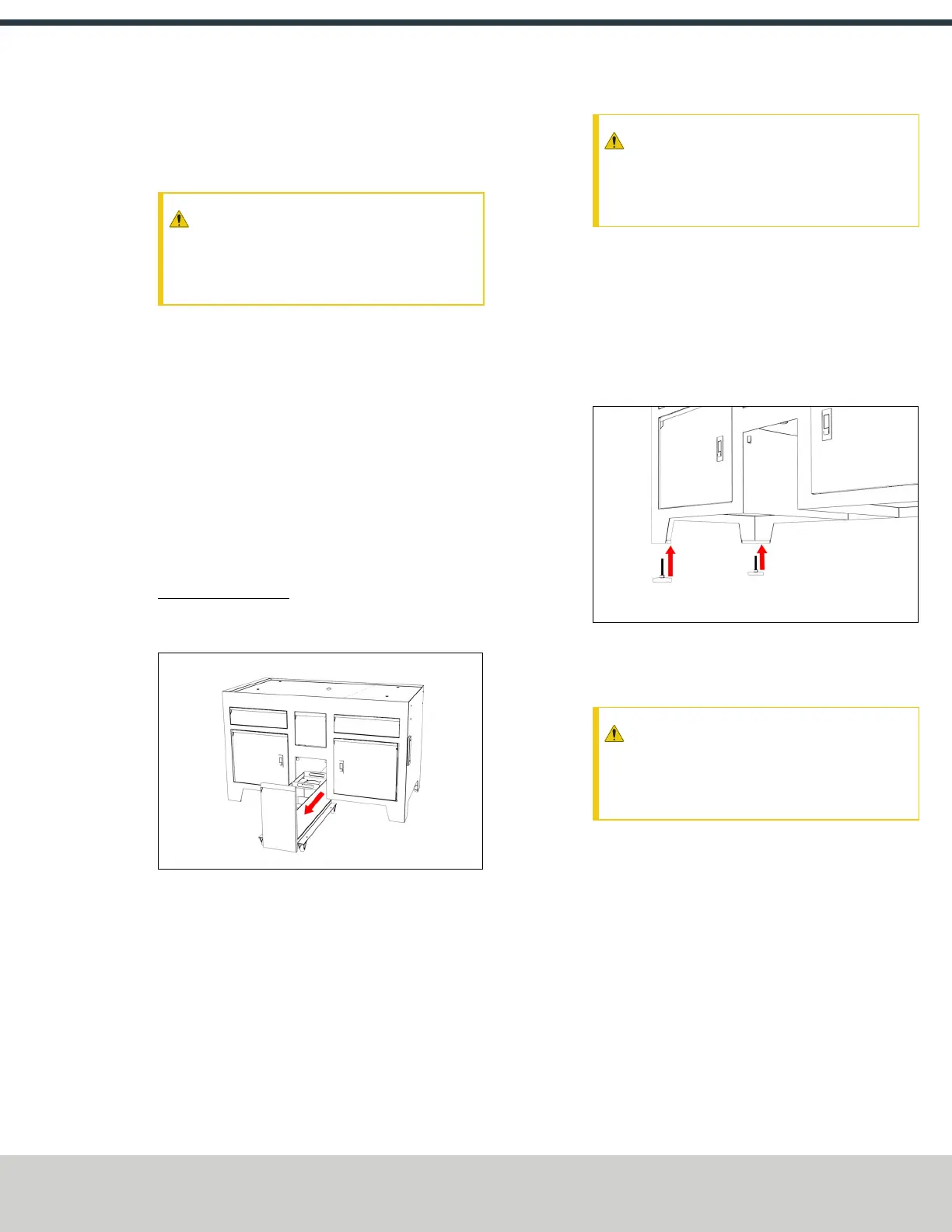

Figure 4-1: Removing the coolant tank from within
the machine stand.
8. Find the accessory box inside the machine stand, which
includes the feet for the machine stand. Set it aside for
later installation.
9. Remove the four screws securing the machine stand to
the pallet with a 19 mm socket wrench.
10. To install the machine stand's feet, you must first lay it
on its front surface. Put a large piece of cardboard (or
similar) on the floor to protect the machine stand.
CAUTION! Team Lift Required:You must have
the aid of more than one person to lift and
move the object. The object is heavy, and lifting
it by yourself can cause serious injury.
11. Lift the machine stand off of the pallet, and put it on the
cardboard that you put on the floor in Step 10.
12. Open the accessory box that you set aside in Step 8, and
then identify the hardware inside (which is used to
assemble the machine stand's feet).
13. Put one foot assembly through the base of one corner of
the machine, and secure it with one washer and nut.
Figure 4-2: Installing the feet onto the machine stand.
14. Repeat this step to secure the remaining three feet to
each corner of the machine.
CAUTION! Team Lift Required:You must have
the aid of more than one person to lift and
move the object. The object is heavy, and lifting
it by yourself can cause serious injury.
15. Lift the machine stand off of the floor, and set it down
onto its feet.
4.5 UNPACK THE MACHINE CRATE
Tools and Items Required
l 19 mm socket wrench
l Phillips screwdriver
l Safety eyewear that meets ANSI Z87+
l Snips
l Wood blocks
l Work gloves
©Tormach® 2021
Specifications subject to change without notice.
Page 25 UM10753: 8L Operator's Manual (Version 0321B)
For the most recent version, see tormach.com/support
