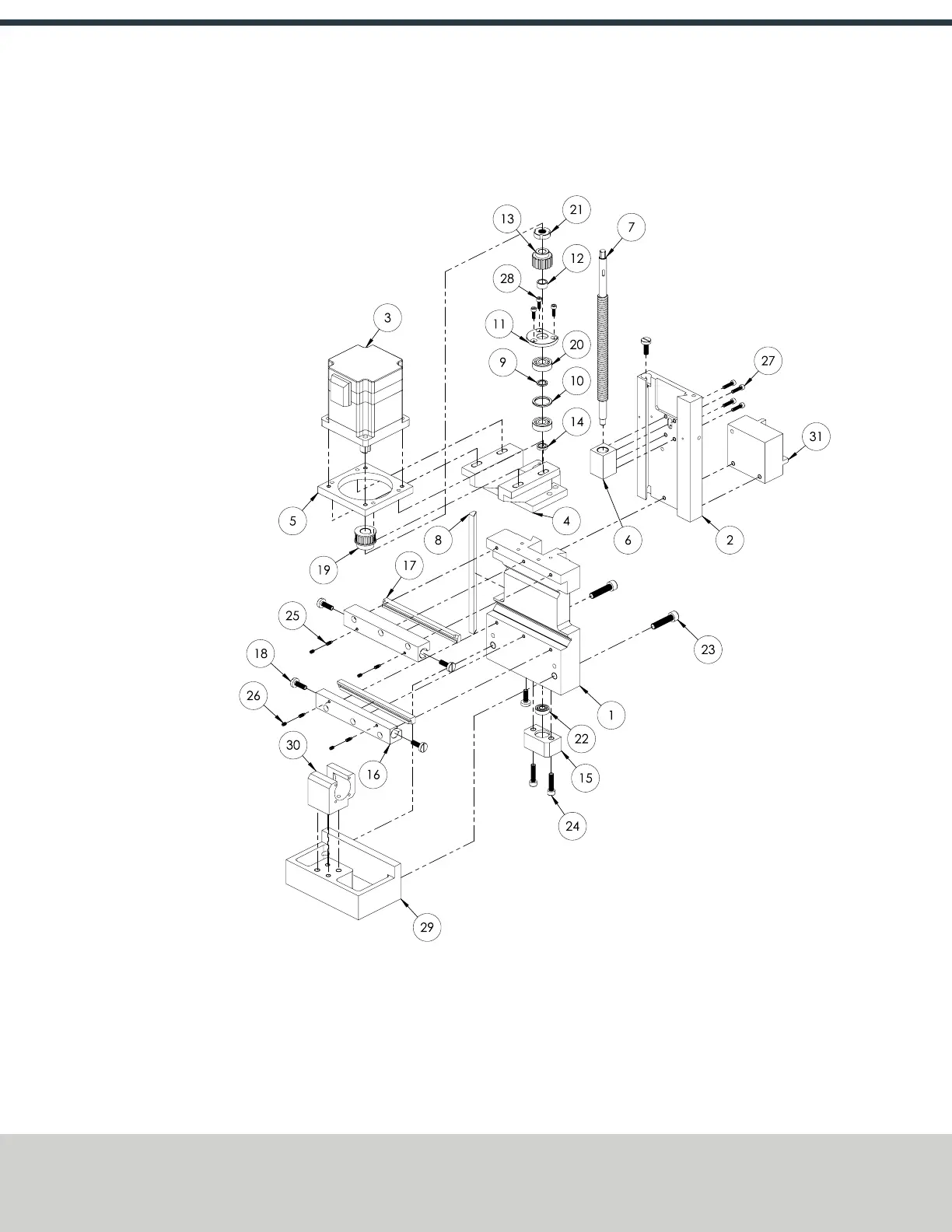

Tormach 8L - X-Axis Exploded View

7: DIAGRAMS AND PARTS LISTS
©Tormach® 2021
Specifications subject to change without notice.
Page 87 UM10753: 8L Operator's Manual (Version 0321B)
For the most recent version, see tormach.com/support
7.22 X-AXIS EXPLODED VIEW
