6: BASIC OPERATIONS
6. Rotate the spindle by hand to visually confirm that the
spindle belt is fully seated in the pulley.
7. Close the spindle cabinet door.
8. From the PathPilot interface, on the Settings tab, select
the appropriate spindle pulley ratio option.

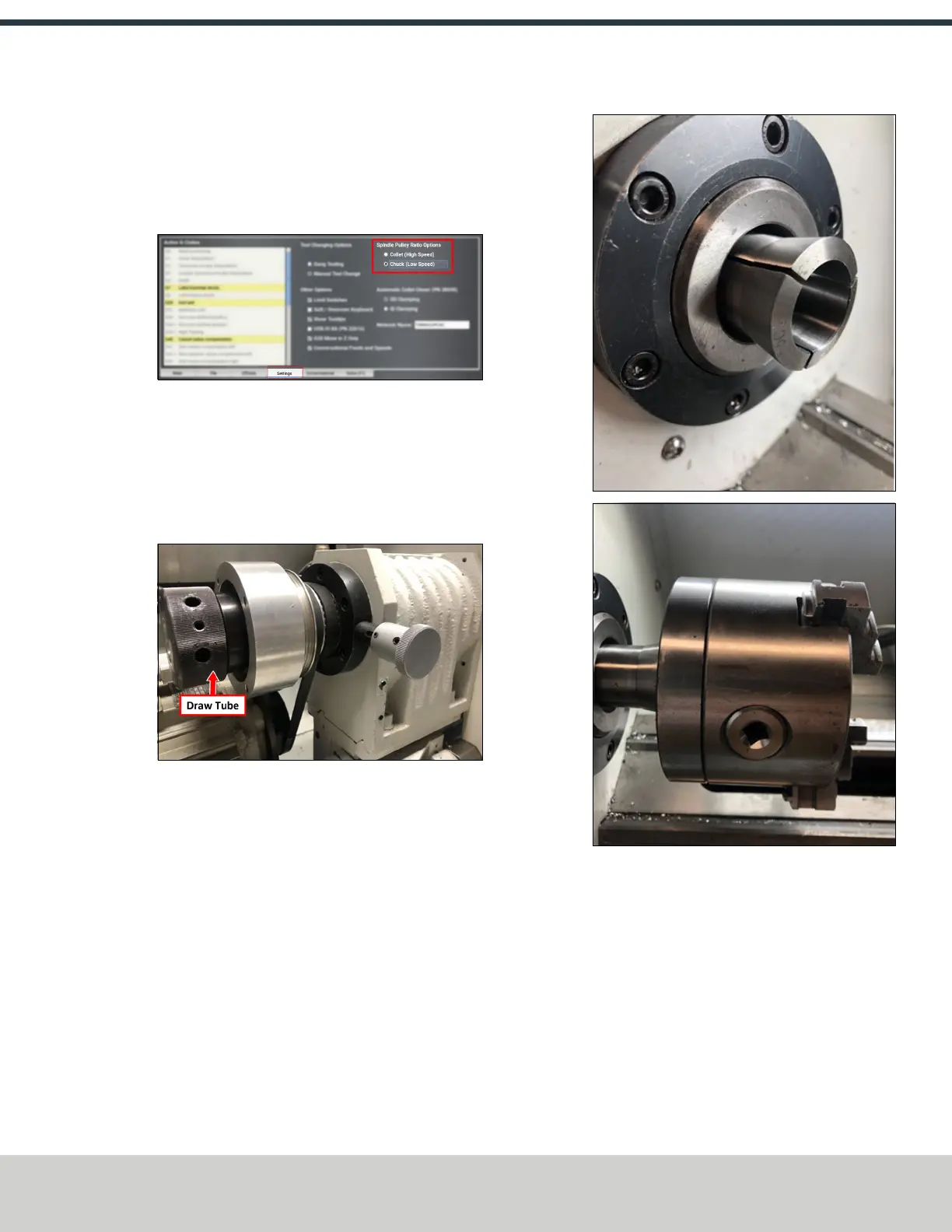

Figure 6-7: Spindle Pulley Ratio Option selections.
6.6 LOAD MATERIAL INTO THE SPINDLE
1. Open the enclosure door and the spindle door. Verify
that the latch on both doors is seated to prevent the
doors from unexpectedly falling.
2. Install the draw tube through the spindle.
Figure 6-8: Draw tube installed into the spindle.
3. Install a 5C collet or chuck into the headstock.
Figure 6-9: Workholding option installed.
