4: INSTALLATION
When you're finished installing accessory components, go to
"Set Up the PathPilot Controller" (page40).
4.7.1 Install the Quick Change Tool Post Kit 37
4.7.2 Install the Machine Stand Coolant Kit (PN 50931) 39
4.7.1 Install the Quick Change Tool Post Kit
Complete the following steps in the order listed:
Required Tools 37
Install the Quick Change Tool Holder 37
Install the Tool into the Quick Change Tool Holder 37
Align the Tool 38
Required Tools
This procedure requires the following tools. Collect them
before you begin.
l Adjustable wrench
l Dead-blow hammer
l Magnetic dial test indicator
l Metric hex wrench set
l Rust preventative
Install the Quick Change Tool Holder
1. Remove the mounting block from the bottom of the tool
post, and discard it.
2. Examine the surface of the machine's carriage and the
mounting plate for burrs, grit, or dirt.
3. Use a machinist's stone to remove any burrs.
4. Use a rust preventative (like WD40® or similar) on the
surfaces.
5. Attach the tool post with the tool post stud, and hand
tighten the nut on top.

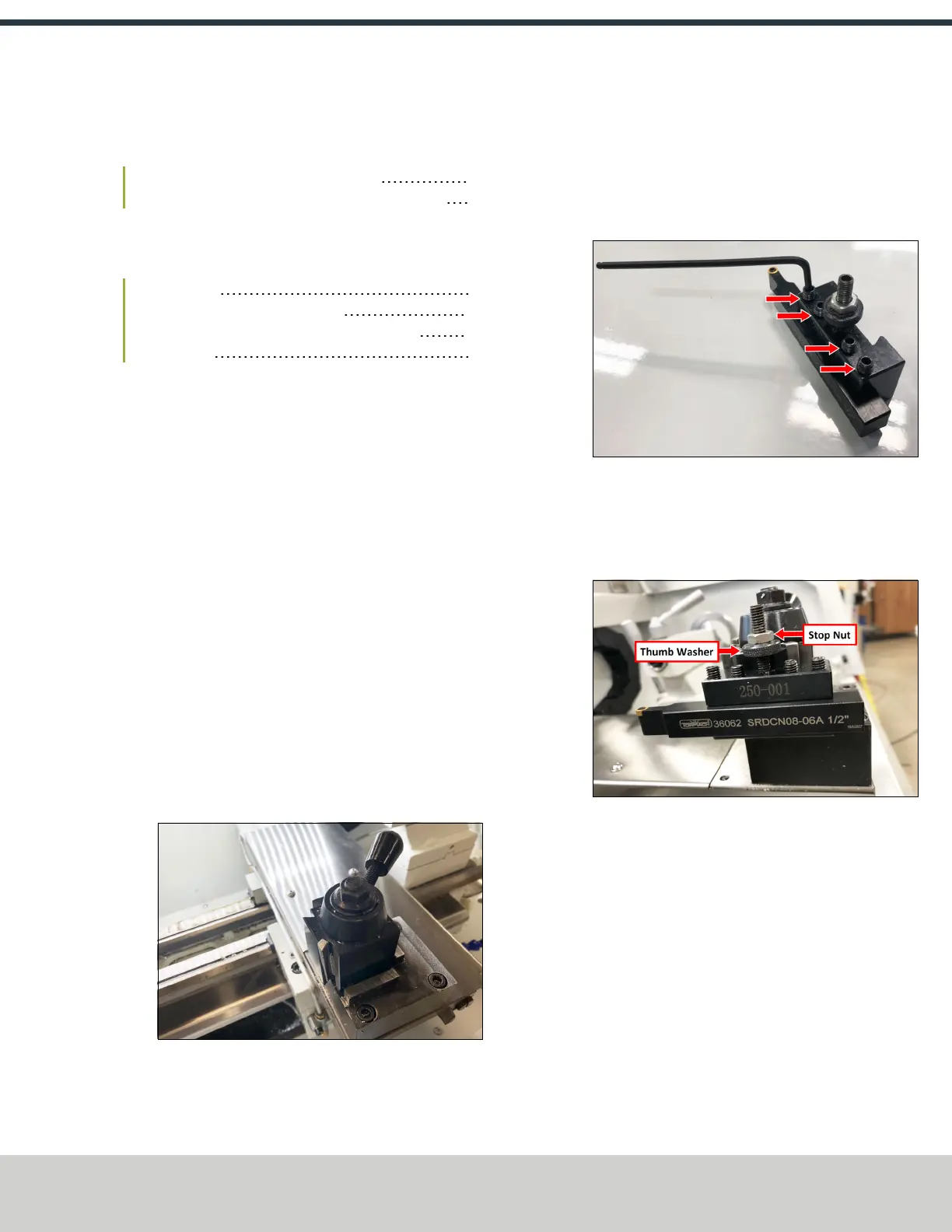

Figure 4-41: Tool post installed.
Install the Tool into the Quick Change Tool Holder
1. Find a tool and its equivalent tool holder, and put the
tool into the tool holder. Lock the tool into the tool
holder: with the tool pointing toward you, tighten the
hex head screws.
Figure 4-42: A tool with its equivalent tool holder.
2. Set the rough tool height by adjusting the thumb screw.
Then, secure it in place with the stop nut. You'll make
fine adjustments later in this procedure to bring the tool
plane on center with the spindle.
Figure 4-43: Adjustment components on the tool
holder.
©Tormach® 2021
Specifications subject to change without notice.
Page 37 UM10753: 8L Operator's Manual (Version 0321B)
For the most recent version, see tormach.com/support
