Tormach 8L - 4.8 Set Up the PathPilot Controller

Adjust the Coolant Pump Motor Strapping
Because the coolant pump is dual voltage, you may need to
adjust the motor strapping.
1. Reference the configuration diagram to move the
jumper to the correct position. In the following image,
the motor is adjusted for 220 Vac.

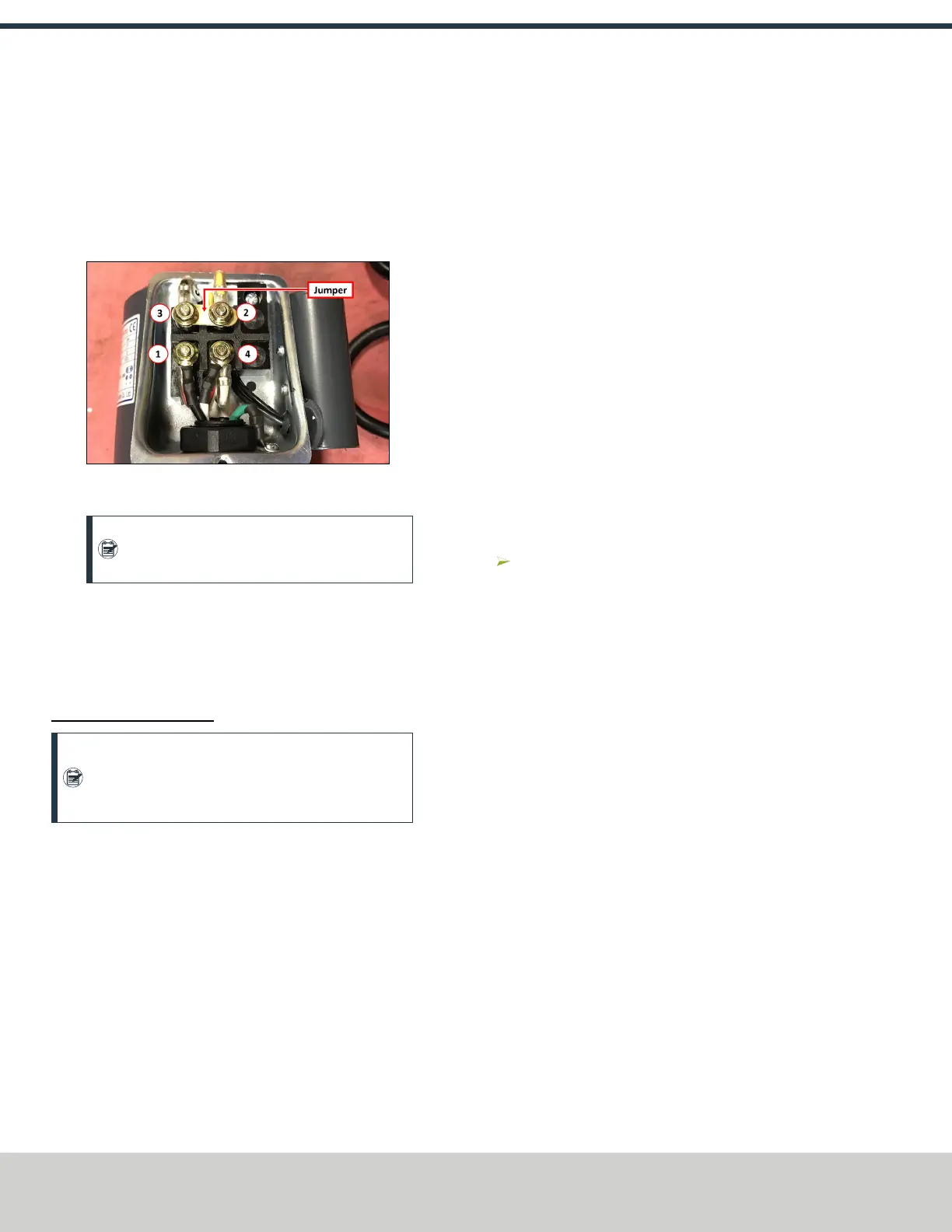

Figure 4-50: Coolant pump motor strapping adjusted
for 220 Vac.
Note: Don't change the position of any wires –
just the jumper that connects the terminals.
2. Reinstall the access cover on the coolant pump.
4.8 SET UP THE PATHPILOT CONTROLLER
Before operating your machine, configure in PathPilot the date,
time, keyboard language, and — if applicable — the optional
Touch Screen Kit (PN35575).
Note: Detailed information on configuring and using
the PathPilot controller is provided in the PathPilot
manual at tormach.com/support.
4.8.1 Specify the Date and Time
1. From the PathPilot interface, on the Main tab, in the
MDI Line DRO field, type ADMIN DATE. Then select the
Enter key.
The Time and Date Settings dialog box displays.
2. Complete the fields in the Time and Date Settings dialog
box, and then select Close.
4.8.2 Specify the Keyboard Language
By default, the keyboard language is set to English.
To specify a different keyboard language:
1. From the PathPilot interface, on the Main tab, in the
MDI Line DROfield, type ADMIN KEYBOARD. Then
select the Enter key.
The Keyboard Preferences dialog box displays.
2. Select the Layouts tab and select the desired language.
If the language you want is not listed, select Add to
specify the language. Then, select Close.
4.8.3 Configure the Optional Touch Screen Kit
Before using a touch screen, you must make sure that it's
configured and calibrated. To calibrate it:
1. From the PathPilot interface, on the Main tab, in the
MDI LineDRO field, type ADMINTOUCHSCREEN.Then
select the Enter key.
2. Follow the on-screen instructions.
4.8.4 Update PathPilot
We're constantly updating PathPilot to bring you more
features. Before operating your machine, update to the latest
version.
From the Status tab, select Update.
