4: INSTALLATION
5. Adjust the quick change tool post alignment as
necessary: use a 3 mm hex wrench to adjust the two set
screws on the front and right sides of the quick change
tool post risers to clock the tool post until the indicator
reads zero.

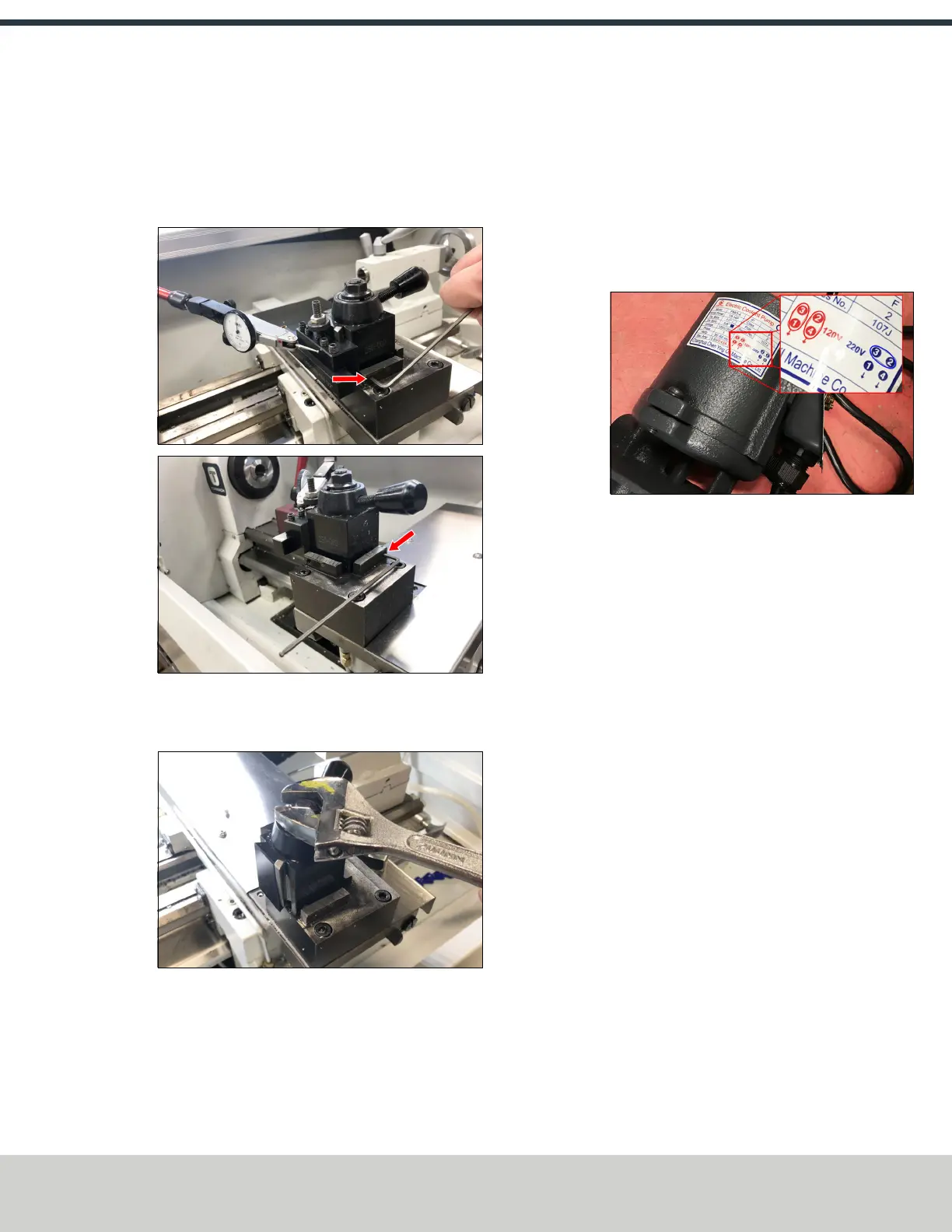

Figure 4-47: Aligning the quick change tool post.
6. Securely tighten the tool post nut with an adjustable
wrench.
Figure 4-48: Tool post nut securely tightened with an
adjustable wrench.
7. Repeat Steps 4 through 5 to make sure that the tool post
is still correctly aligned after tightening the tool post nut.
4.7.2 Install the Machine Stand Coolant Kit (PN
50931)
1. Because the coolant pump is dual voltage, you must
verify that the motor strapping is correct before you
install it:
a. Remove the access cover on the coolant pump, and
then identify the jumper configuration diagram.
Figure 4-49: Coolant pump motor jumper
configuration diagram.
b. Verify that the jumpers are in the correct
configuration (120Vac) for your installation. If
necessary, adjust the configuration. Go to "Adjust the
Coolant Pump Motor Strapping" (on the next page).
2. Remove the four M8 socket head cap screws pre-
installed on the coolant thank. Set the screws aside.
3. Put the coolant pump into the coolant tank, and secure it
with the four socket head cap screws that you set aside
in Step 2.
4. Attach the provided 90° push-to-connect fitting to the
coolant pump.
5. Find the coolant tube, which you routed through the
machine stand earlier. Attach the loose end of the
coolant tube to the push-to-connect fitting on the
coolant pump.
6. Route the power cord on the coolant pump to the right
side of the machine, and connect it to the Coolant Pump
Power outlet.
7. Verify that the coolant setup operates properly:
a. From the PathPilot interface, on the Main tab, select
Coolant.
The coolant pump powers on.
b. Select Coolant again.
The coolant pump powers off.
