Toro Groundsmaster 5900 Series User Manual

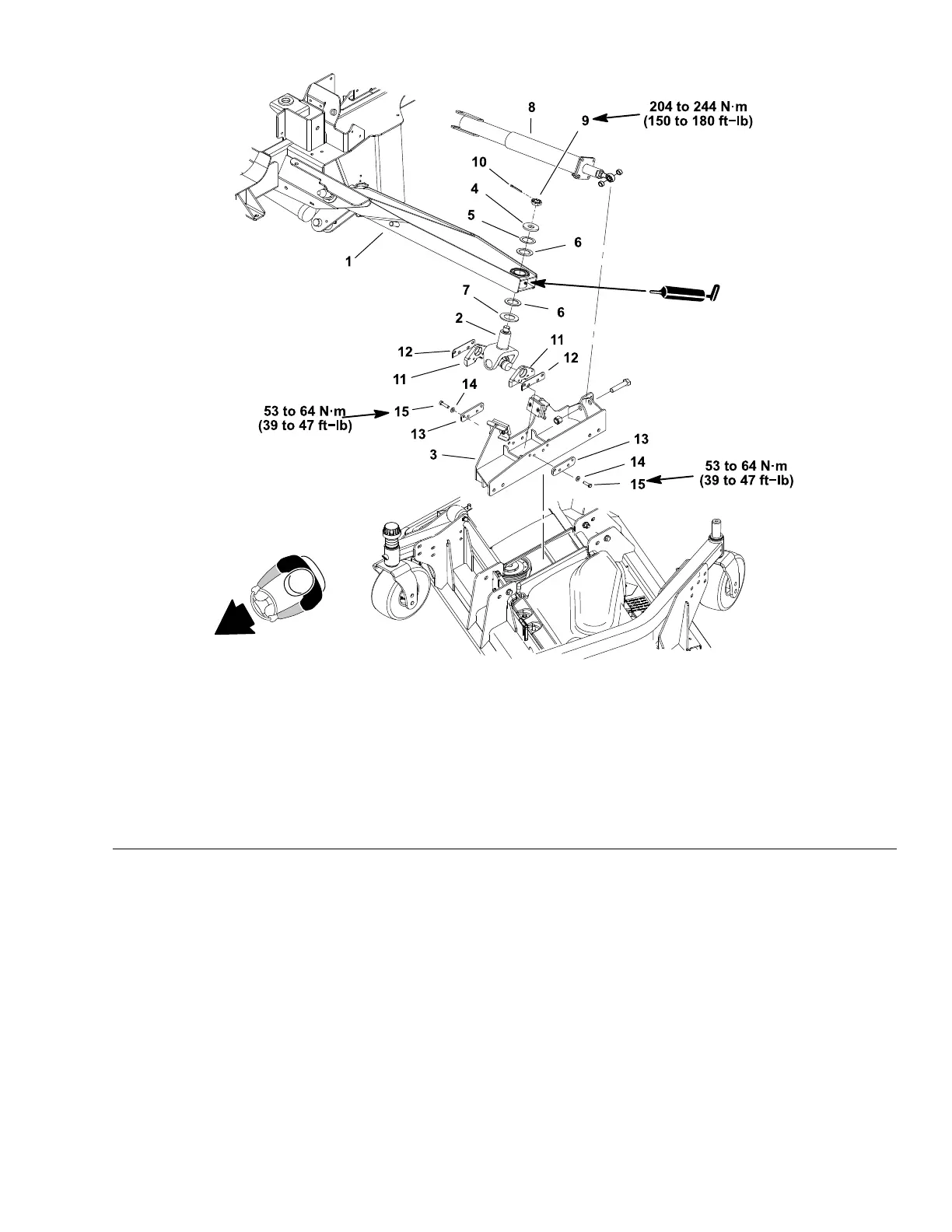

WingDeckLiftArmJointYoke
g298932
Figure307
(Formachinesserialnumberbelow403450000)
1.Liftarm(LHshown)
6.Thrustwasher
11.Basemount(2)
2.Jointyoke
7.Spacer12.Shim(2)
3.Deckconnection8.Impactarm
13.Boltplate(2)
4.Hardenedwasher
9.Slottedhexnut14.Hardenedwasher(8)
5.Thrustwasher
10.Cotterpin15.Capscrew(8)
Groundsmaster
®
5900&5910
Page7–27
Chassis:ServiceandRepairs
16227SLRevB
