Toro Groundsmaster 5900 Series User Manual

OperatorSeat

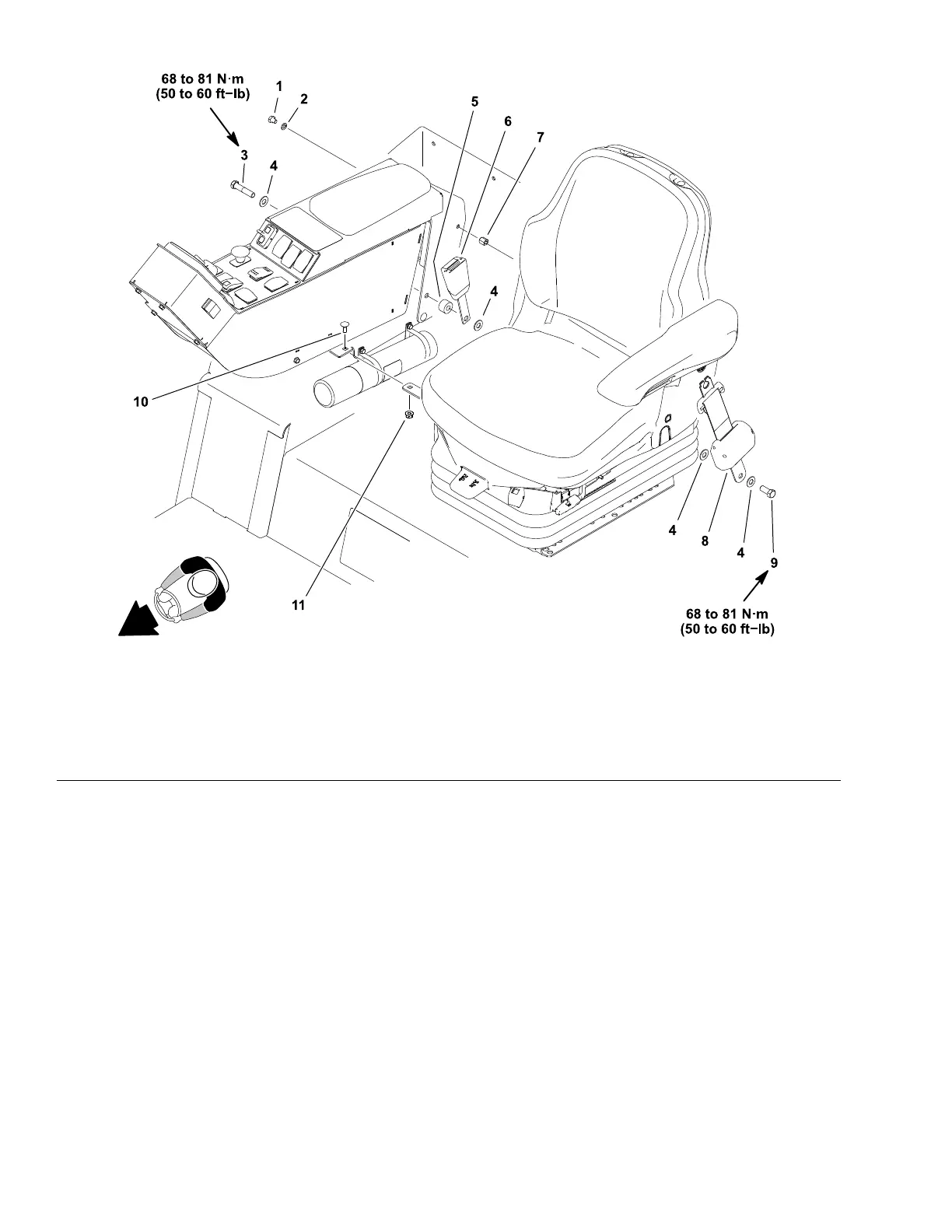

g299266
Figure316
1.Capscrew5.Spacer9.Capscrew
2.Lockwasher
6.Seatbeltreceptacle10.Carriagescrew
3.Capscrew7.Couplingnut
11.Flangenut
4.Flatwasher(4)
8.Retractableseatbelt
OperatorSeatRemoval(Figure316)
1.Parkmachineonalevelsurface,lowercuttingdecks,stopengineand
removekeyfromthekeyswitch.
2.Disconnectseatelectricalconnectorfrommachinewireharness.
3.Removeangenutandcarriagescrew(item10)thatsecuresupportbracket
atfrontrightcornerofseattoconsolesupport.
4.Removecapscrew(item1)andlockwasherthatsecurecouplingnut(item
7)toconsolesupport.
5.Removecapscrew(item3)andatwasherthatsecureseattoconsole
support.Removespacer,seatbeltreceptacle(item6)andatwasherfrom
betweenseatandconsolesupport.
6.Removefour(4)Torxheadscrews(Figure317)thatsecureseattoseat
suspension.Notethatthescrewneartheseatadjustmenthandleislonger
thantheotherthreescrews.
7.Liftseatfromseatsuspensionandremovefrommachine.
Chassis:ServiceandRepairs
Page7–40
Groundsmaster
®
5900&5910
16227SLRevB
