Toro Groundsmaster 5900 Series User Manual

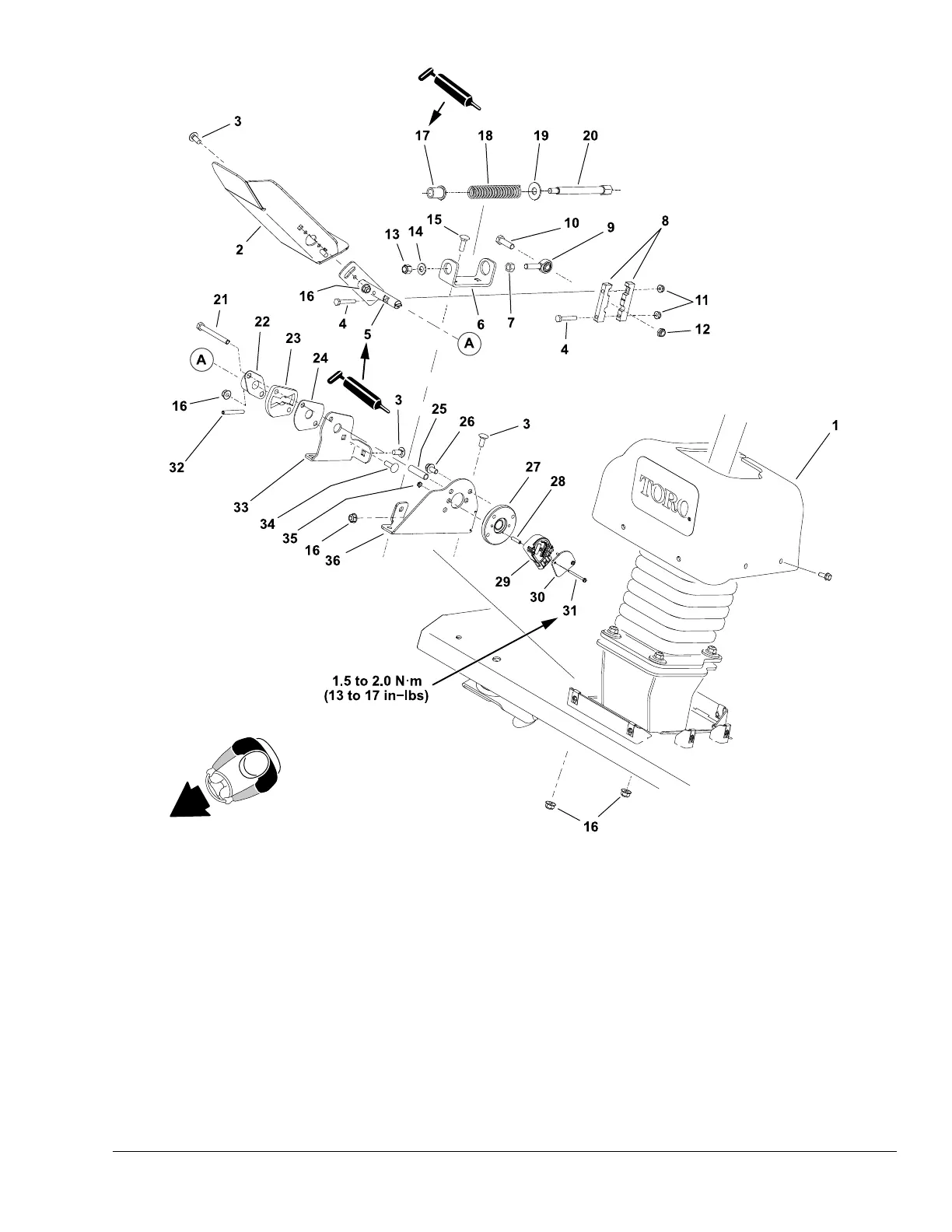

TractionPedal
g299131
Figure314
1.Steeringcover
13.Locknut
25.Spacer
2.Tractionpedal14.Flatwasher
26.Flangeheadscrew(2)
3.Carriagescrew(6)15.Carriagescrew(2)
27.Hubandbushingassembly
4.Capscrew(2)16.Flangenut(7)28.Standoff(2)
5.Pedalshaft
17.Flangebushing29.Positionsensor
6.Springbracket18.Spring30.Coverplate
7.Hexnut19.Flatwasher
31.Socketheadscrew(2)
8.Clampblock(2)20.Springshaft
32.Rollpin
9.Rodend
21.Capscrew33.Butterybracket
10.Capscrew
22.Bearing
34.Carriagescrew
11.Flangenut(2)23.Butteryplate35.Locknut(2)
12.Locknut
24.Coverplate36.Sensorbracket
Groundsmaster
®
5900&5910
Page7–37
Chassis:ServiceandRepairs
16227SLRevB

Toro Groundsmaster 5900 Series Specifications

General

Deck Lift	Hydraulic
Cutting Width	16 ft (4.9 m)
Drive System	4WD
Cutting Height	1 - 6 inches (2.5 - 15.2 cm)
Ground Speed	0-17 mph (0-27.4 km/h)
Transmission	Hydrostatic
Turning Radius	Zero-turn
Standard Tires	26 x 12-12
