APPENDIX 2 INTERFACE ENGLISH VERSION EO1-33094
APPENDIX 2 INTERFACE
EA2- 1

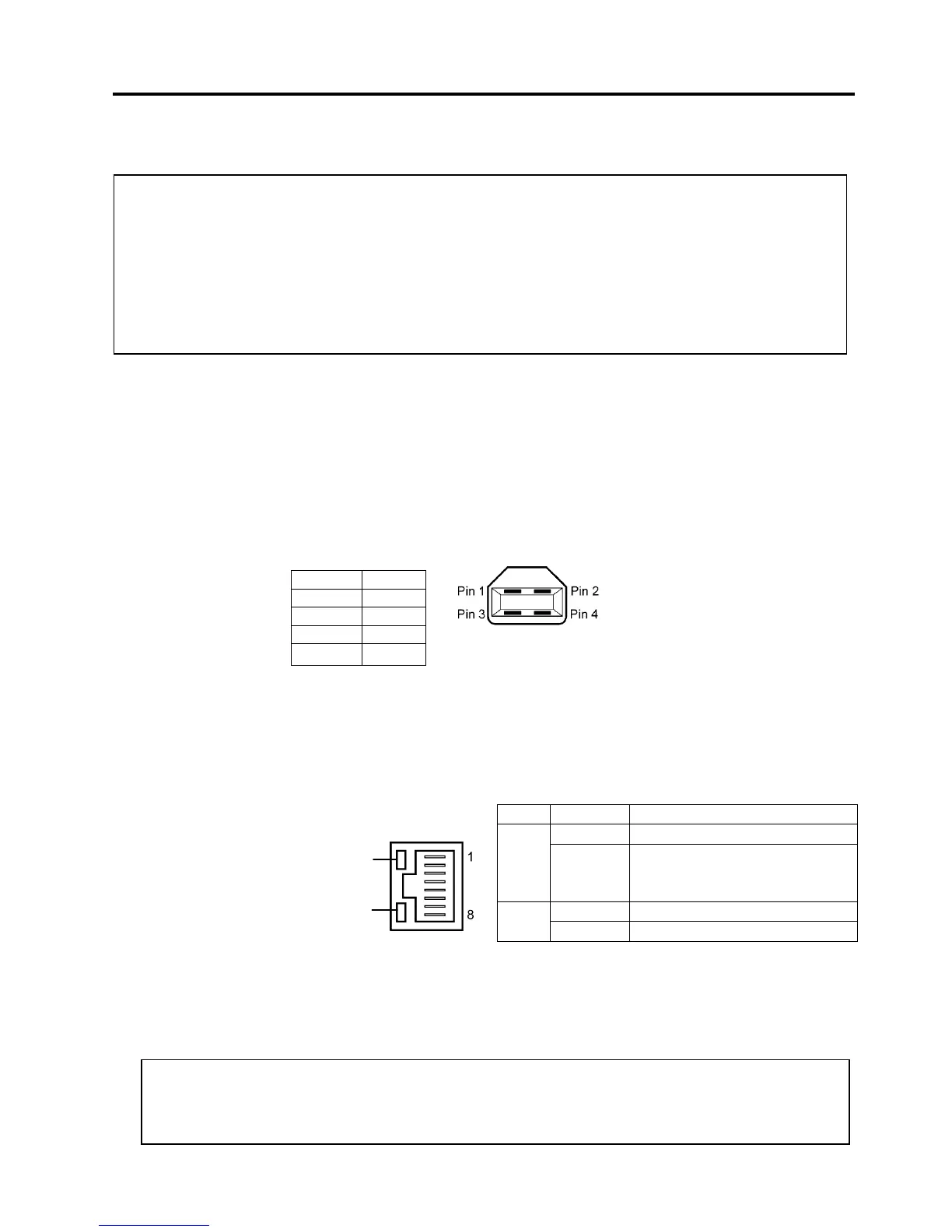

APPENDIX 2 INTERFACE
 USB interface (Standard)
Physical Layer: Conforming to V2.0 Full speed
Transfer type: Control transfer, Bulk transfer
Transfer rate: Full speed (12M bps)
Class: Printer class
Number of ports: 1
Power source: Self power
Connector: Type B
Pin No. Signal
1 VCC
2 D-
3 D+
4 GND
 LAN (Standard)
Physical Layer: IEEE802.3 10BASE-T/100BASE-TX
Number of ports: 1
Connector: RJ-45
LED status: Link LED, Activity LED
LAN cable: 10BASE-T: UTP category 3 or category 5
100BASE-TX: UTP category 5
Cable length: Segment length Max. 100 m
NOTE:
To prevent radiation and reception of electrical noise, the interface cables must meet the following requirements:
• In case of a parallel interface cable or serial interface cable, fully shielded and fitted with metal or metallised
connector housings.
• Keep as short as possible.
• Should not be bundled tightly with power cords.
• Should not be tied to power line conduits.
• A parallel interface cable to be used should conform to IEEE1284.
Series B Plug
NOTE:
When a generally-used twisted pair Ethernet (TPE) or UTP cable is used, a communication error
may occur depending on your operating environment. In such case, you may be requested to use a
shielded twisted pair cable.
Link LED (Green)
Activity LED (Orange)
LED LED Status LAN status
ON 10Mbps link or 100Mbps link is detected. Link
OFF No link is detected.
* Communication cannot be made while
the Link LED is off.
ON Communicating Activity
OFF Idle
