7. SUPPLY SPECIFICATIONS
7.1 Media
Please make sure that the media being used is approved by TOSHIBA TEC. The warranty does not
apply when a problem is caused by using media that is not approved by TOSHIBA TEC.
For information regarding TOSHIBA TEC approved media, please contact a TOSHIBA TEC authorised
service representative.
7.1.1 Media Type
Two types of media can be loaded for this thermal transfer and direct thermal printer: label or tag. The
table below shows size and shape of the media available for this printer.

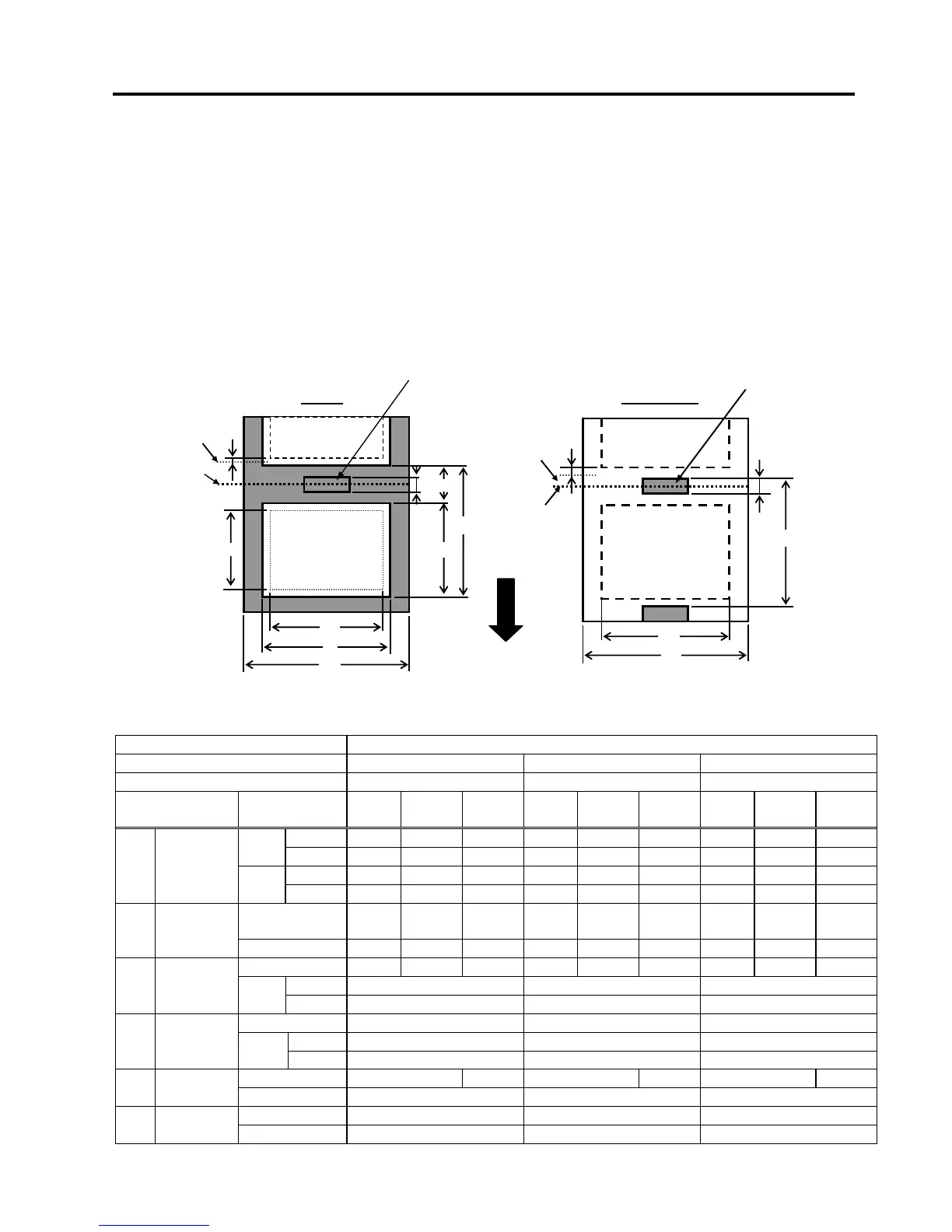

Paper Size and Shape
Item B-EX4T2
Thermal head density 8dots/mm（203dpi） 11.8dots/mm（300dpi） 23.6dots/mm（600dpi）
Thermal head width 104.0mm 108.416mm 105.58mm
Contents Issue type Batch
Strip
*Note1
Disc
Cutter
Batch
Strip
*Note1
Disc
Cutter
Batch Strip
Disc
Cutter
Min. 10.0 15.0 25.0 10.0 15.0 25.0 7.0 12.0 25.0
Label
Max. 1500.0 1500.0 1500.0 1500.0 1500.0 1500.0 500.0 500.0 500.0
Min. 10.0 － 25.0 10.0 － 25.0 10.0 － 25.0
1.
Paper
Pitch
Tag
Max. 1500.0 － 1500.0 1500.0 － 1500.0 500.0 － 500.0
Min. 8.0 17.0
19.0
*Note2
8.0 17.0
19.0
*Note2
5.0 10.0
19.0
*Note2
2. Paper length
Max. 1498.0 1498.0 1494.0 1498.0 1498.0 1494.0 498.0 498.0 494.0
Min. 25.0 25.0 25.0 25.0 25.0 25.0 15.0 15.0 15.0
Direct 114.0 114.0 114.0
3.
Tag width
and Backing
paper width
Max.
Transfer 108.0 108.0 108.0
Min. 22.0 22.0 22.0
Direct 111.0 111.0 111.0
4. Label width
Max.
Transfer 105.0 105.0 105.0
Min. 2.0 6.0 2.0 6.0 2.0 6.0
5.
Label-to-
label gap
Max. 20.0 20.0 20.0
Min. 2.0 2.0 2.0
6.
Black mark
length
Max. 10.0 10.0 10.0
Label Tag paper
Cut position
Cut position
Stop
position
Stop
position
Feed Direction
Black Mark
(on reverse side)
Black Mark
(on reverse side)
h
c
e
g
c
d
i
i
k
k
f
j
e
