2.9 Position and Print Tone Fine Adjustment
E2-61
2.9 Position and Print
Tone Fine
Adjustment

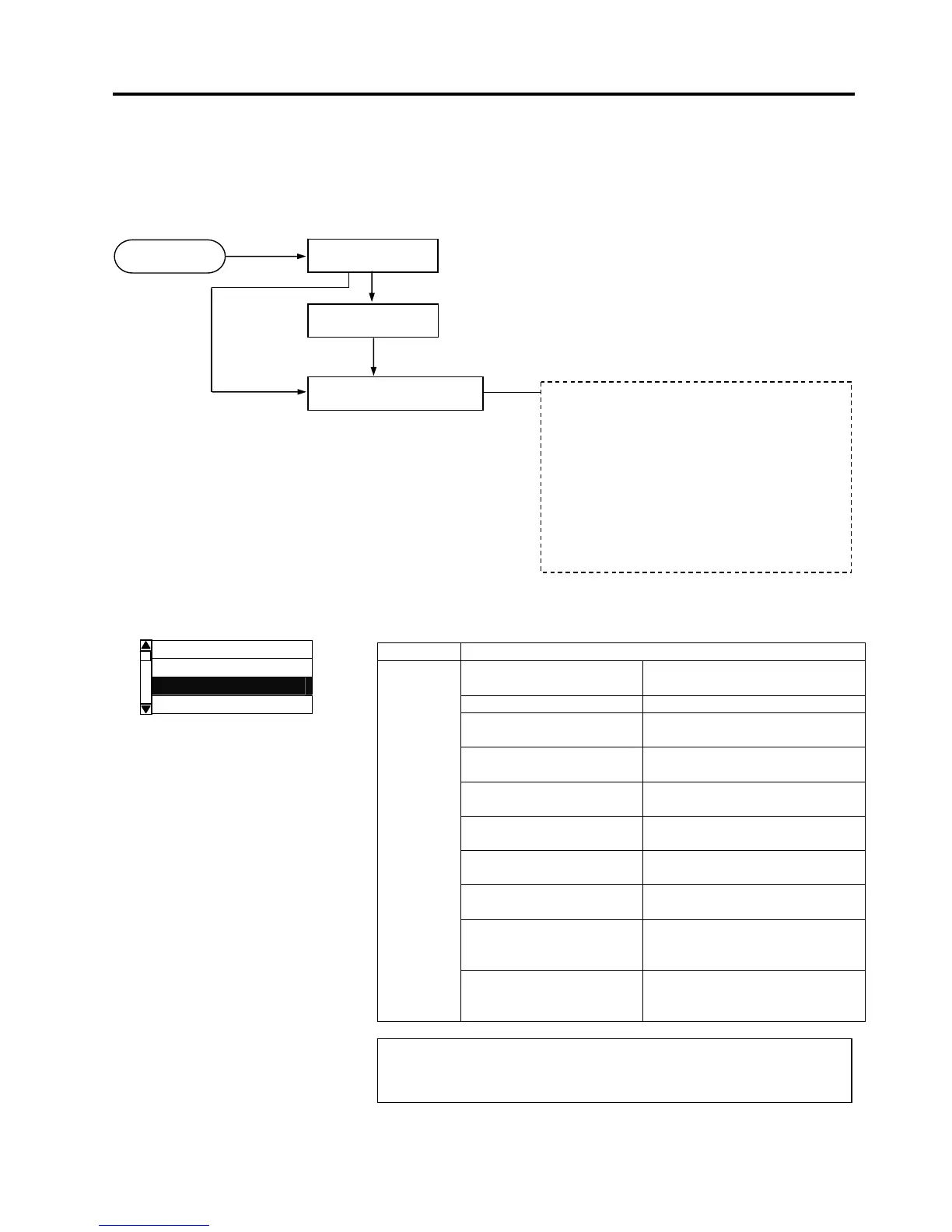

2.9.1 Fine Adjustment
This section describes how to fine adjust a print start position,
cut/strip position, reverse feed amount, print tone, and ribbon
motor torque.
When a fine adjustment is required, follow the procedure below.
Contents of the Fine Adjustment Menu
Menu Parameter
FEED ADJ. Adjusts the feed amount to the
print start position
Adjust set
CUT ADJ. Adjusts the cut or strip position.
BACK ADJ. Adjusts the reverse feed
amount.
X ADJUST Adjusts the print position in X
coordinate (horizontal direction)
TONE ADJ. (TRANS.) Adjusts the print tone for
thermal transfer printing.
TONE ADJ. (DIRECT) Adjusts the print tone for direct
thermal printing.
RBN ADJ. <FW> Adjusts the ribbon take-up
motor drive voltage.
RBN ADJ. <BK> Adjusts the ribbon feed motor
drive voltage.
THRESHOLD <REFL.> Sets a fine adjustment value for
the threshold for the reflective
sensor.
THRESHOLD <TRANS.> Sets a fine adjustment value for
the threshold for the
transmissive sensor.
NOTE:
The printer driver’s properties screen also has Parameter Fine Adjustment
menu.
ONLINE Mode
User System Mode
Power ON
[PAUSE]
PAUSE state
Hold down [RESTART]
Power OFF
Hold down [MODE]
• Reset
• Parameter setting (⇒Section 2.6.2)
• Fine adjustment (⇒Section 2.9)
• LAN/WLAN (⇒Section 2.6.3)
• BASIC (⇒Section 2.6.4)
• Z-MODE (⇒Section 2.6.5)
• AUTO calibration (⇒Section 2.6.6)
• Dump mode (⇒Section 2.6.7)
• Log (⇒Section 2.6.8)
USER SYSTEM MODE
<1>RESET
<2>PARAMETER SET
<3>ADJUST SET
<4>LAN/WLAN
To Next Page
