3.2 LCD
E3- 2

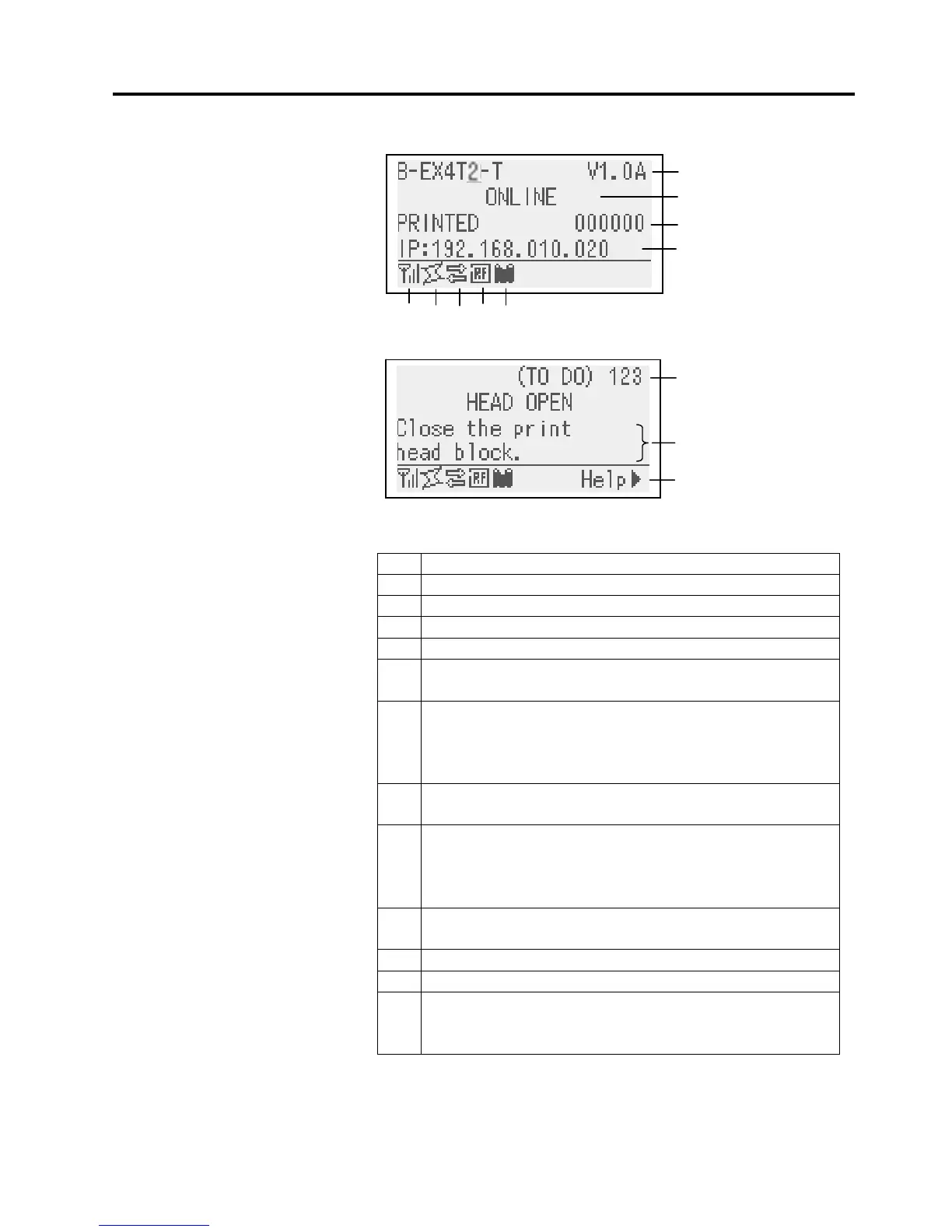

3.2 LCD
Online state
Error state
(Example: Head open error)
No. Description
(1) Model name and firmware version
(2) Message
(3) The number of labels printed
(4) IP address (only when LAN/WLAN is enabled.)
(5) Radio intensity (only when WLAN is enabled.)
Indicates the radio intensity in 4 levels.
(6) WLAN connection (only when WLAN is enabled.)
▪ Lights up when connecting to an access point.
▪ Flashes while roaming.
▪ Goes off when disconnected.
(7) Presence of a print job
Appears when a print job exists.
(8) RFID (only when RFID module is installed.)
▪ Appears when a communication between the printer
and the RFID module is enabled.
▪ Flashes while communicating with the RFID module.
(9) Ribbon near end
Flashes when a ribbon near end state is detected.
(10) The number of remaining labels to print
(11) Error description and solution
(12) Help guide
Appears when a help guide message is provided. Press
the [RIGHT] key to see the help guide message.
