2. PRINTER SETUP ENGLISH VERSION EO1-33094
2.3 Loading Supplies
E2-10
2.3.2 Loading the Ribbon
There are two types of media available for printing on: thermal
transfer and direct thermal (which has a chemically treated
surface). DO NOT LOAD a ribbon when using direct thermal
media.
1. Grasp the tabs on the top and bottom of the Ribbon Stoppers
and move the Ribbon Stoppers back to the end of the Ribbon
Shaft.

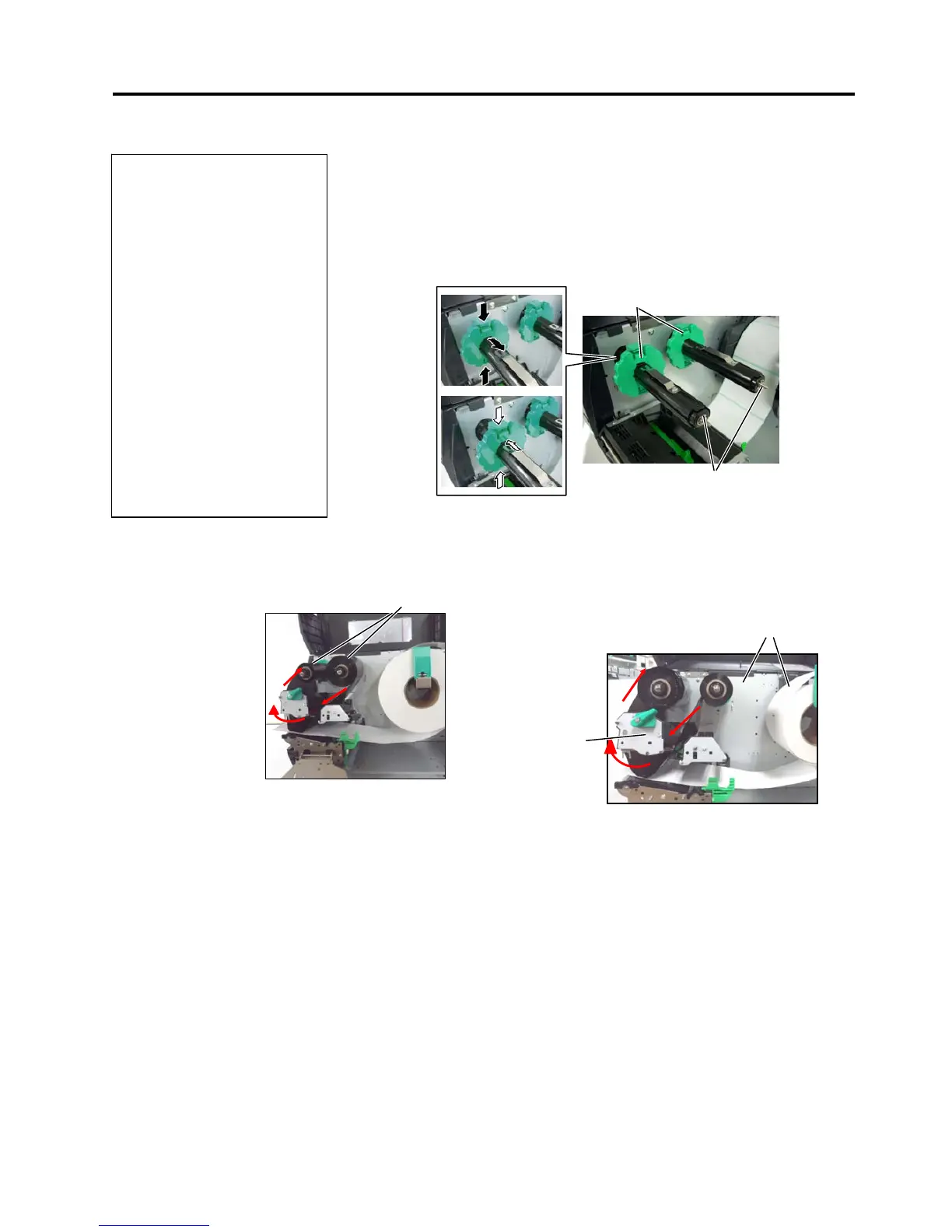

2. Leaving plenty of slack between the ribbon spools, place the
ribbon onto the Ribbon Shafts as shown below.
There are 2
possible ways to load the ribbon.
NOTE:
To check or change settings on which type of Ribbon winding to be
used, you must go to SYSTEM Mode in the Printer. For more details
refer to Key Operation Specification, “8.4.1 PRINTER SET”.
NOTES:
1. When attaching the ribbon
stoppers, make sure that
the pinchers face into the
printer
2. Be sure to remove any
slack in the ribbon before
printing. Printing with a
wrinkled ribbon will reduce
the print quality.
3. The Ribbon Sensor is
mounted on the rear of the
Print Head Block to detect
a ribbon end. When a
ribbon end is detected a
“NO RIBBON” message will
appear on the display and
the ERROR LED will
illuminate.
Ribbon Stopper
Ribbon Shaft
Print Head Block
Ribbon Shaft
Ribbon Shaft
Outside Wound Ribbon
Inside Wound Ribbon
