2. PRINTER SETUP ENGLISH VERSION EO1-33094
2.3 Loading Supplies
E2- 5

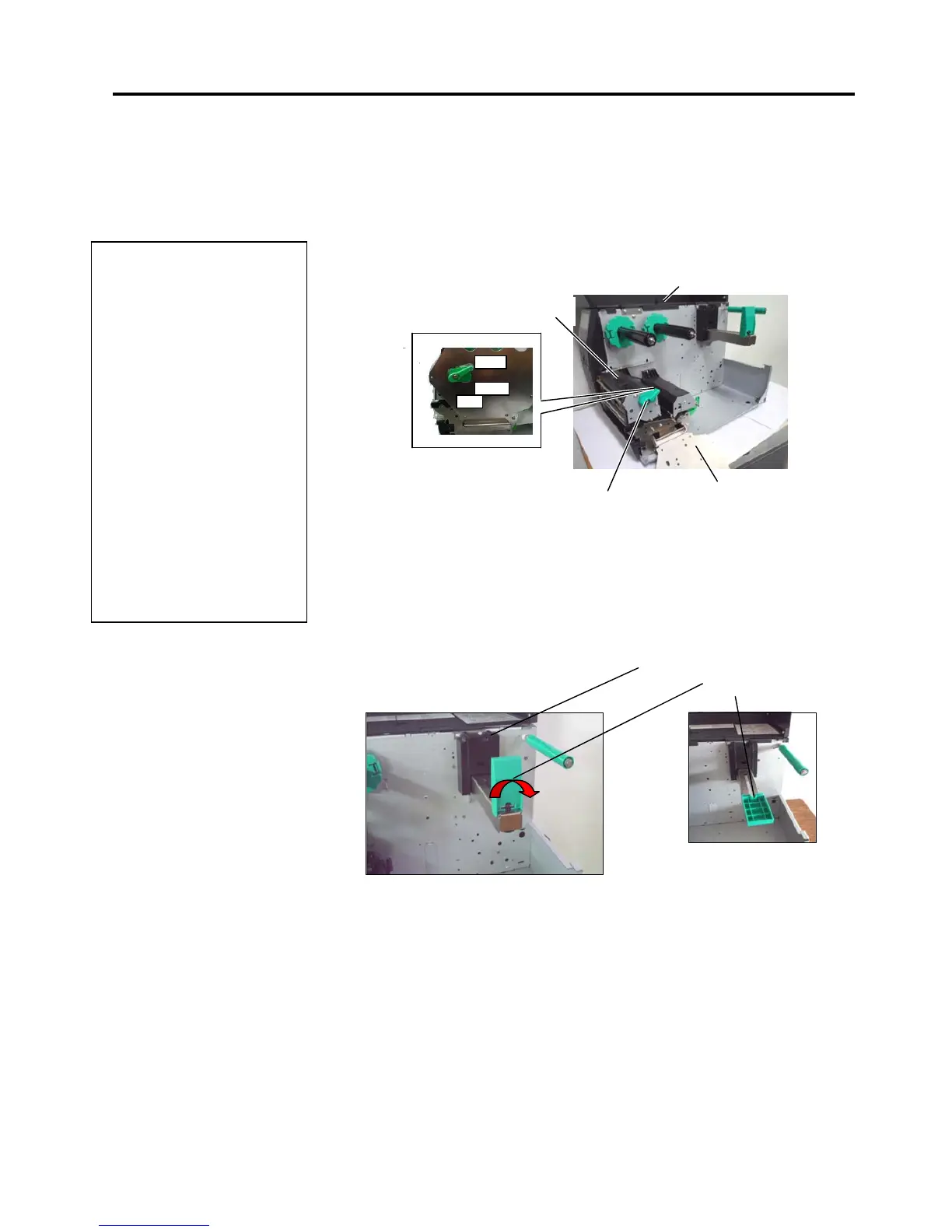

2.3.1 Loading the Media
The following procedure shows the steps to properly load the media into
the printer so that it feeds straight through the printer.
The printer prints both labels and tags.
1. Open the Top Cover.
2. Turn the Head Lever to the FREE position and release the Ribbon
Shaft Holder Plate.
3. Open the Print Head Block.
4.
Move the Paper guide R to the rightmost position or shift the
guide to the horizontal position.
5. Put the media on the Paper Holder.
6. Pass the media around the Paper Holder, and then pull
the media towards the front of the printer.
7. Push the Paper Guide against the media until the media is
held firmly in place. To lock the Media, shift the Paper Guide
R to vertical position
NOTES:
1. When the Head Lever is
turned to
FREE position, the
Print Head can be raised.
2. To enable printing the Head
Lever must be set to the
LABEL / TAG position.
(This ensures that the Print
Head is closed.)
There are two head pressure
levels in the
LABEL / TAG
position. Set the Head Lever
depending on the media type:
Position LABEL: Labels
Position TAG : Tags
However, proper position
may differ depending on
media. For details, refer to
your TOSHIBA TEC
authorised service
representative.
Top Cover
Print Head Block
Head
Lever
Ribbon Shaft Holder Plate
TAG
LABEL
FREE
Paper Guide R
Paper Guide L
To Next Page
